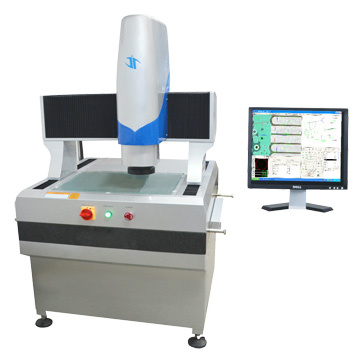

2.5D Fully Auto Video Measurement System Optical Precision Instrument (QVS-3020CNC)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Feature:
Stable marble base and pillar, working stage don't move, Japan precision guide and screw, double close-loop servo motor to ensure the high measure speed, accuracy and stability;
Adjustable 48-division Ring LED illuminator controlled by software and with memory function;
Advanced 0.7x~4.5x motorized coaxial zoom lens and 1 /2" color high resolution CCD camera;
3-axis high-accuracy USA 0.5um linear scale;
CCD navigation system, for quickly locate the measurement position of sample and improve the measurement speed;
Powerful fully-auto QM4.1 measuring software, make, save and inport, edit the program and then auto-run it.
Specification:
| Mode | QVS-3020CNC-P | QVS-4030CNC-P | QVS-5040CNC-P |
| Order# | 527-321 | 527-431 | 527-541 |
| X/Y-axis Travel | 300x200mm | 400x300mm | 500x400mm |
| Z-axis Travel | 200mm | 200mm | 200mm |
| Linear scale | X/Y/Z 3-axis USA linear scale, Resolution:0.0005mm |
| Accuracy | X/Y-axis: ≤3+L/200(um) ; Z-axis : ≤4+L/200(um) |
| Video device | 1 /2" color CCD camera, 6.5:1 0.7x~4.5x Motorized coaxial zoom lens |
| 3D Measurement Device | UK MCP-K2 Touch Probe (MCP-K1, MCP-K3 optional) |
| Illumination | Contour | Adjustable 256-grade LED Cold illumination |
| Surface | Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination |
| Measuring software | QM4.1 | QM4.1 | QM4.1 |
| Dimension(mm) | 860x740x1760 | 1060x740x1760 | 1160x940x1760 |
| Net weight | 250Kg | 300Kg | 360Kg |
| Max. load capacity | 35Kg | 30Kg | 25Kg |
Standard Delivery:
| Standard Delivery | Code# | Standard Delivery | Code# | Standard Delivery | Code# |
| Measuring Software | QM4.1 | CCD Camera | 484-123 | Motorized Coaxial Zoom Lens | 422-010 |
| Calibration Block | 581-801 | DH Capture Card | 527-131 | 48-Division LED Illumination | 581-121 |
| Movement Control Card | 527-141 | Scale Transfer U3 | 564-301 | CCD Navigation | 484-010 |
| Linear Scale | 553-010 | Probe MCP-K2 | 581-721 | Operation Joystick | 581-542 |
| Length Block SGR 100 | 581-631 | Operation Manual | QVS-CNC-P | PC System | HP |
| Prod Model: |
QVS-3020CNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
X/Y-Axis: ≤3+L/200(Um) ; |
| X/Y-Axis Travel: |
300X200mm |
| Z-Axis Travel: |
200mm |
| Linear Scale: |
X/Y/Z 3-Axis USA Gsi Linear Scale, Resolution: 0. |
| Dimension(Mm): |
860X740X1760 |
| Net Weight: |
250kg |
| Max. Load Capacity: |
35kg |
