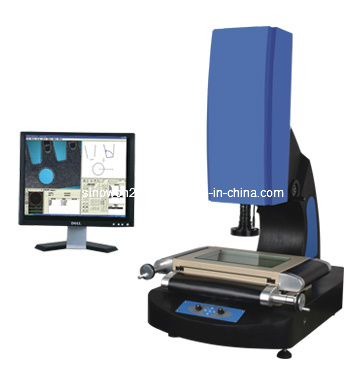

2.5D Manual Video Measuring Machine (Vexus VM-3020)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Feature:
Fashionable shape with stable ark pillar granite design;
Adjustable 4-division LED illuminator controlled by panel or software;
6.5: 1 0.7x~4.5x click zoom lens;
Obviously assistant laser position system;
Powerful measuring software QuickMeasuring for 2D Measurement;
0.5X and 2X Auxiliary objective are optional;
Optional Accessarise:
0.5XAuxiliary Objective (#423-050)
2XAuxiliary Objective (#423-200)
12.5XDetented Zoom Lens (#421-111B)
Coaxial Zoom Lens (#421-121)
Rotary Table RT2 (# 581-521)
Rotary Table RT3 (#581-531)
12.5X Coaxial Zoom Lens(421-121B)
Electronic Zoom Lens (#421-141)
Foot Switch(#581-351)
Working Cupboard ST03(#581-631)
| Mode | Vexus VM-2515 | Vexus VM-3020 | Vexus VM-4030 |
| Order# | 523-201 | 523-211 | 523-221 |
| Metal table size | 450x280mm | 458x358mm | 558x458mm |
| Glass table size | 306x196mm | 350x280mm | 450x350mm |
| Travel: X,Y | 250x150mm | 300x200mm | 400x300mm |
| Accuracy | ≤3+L/200(um) | ≤3+L/200(um) | ≤3+L/200(um) |
| Repeatability | ±2um | ±2um | ±2um |
| X/Y/Z-axis Linear Scale | High-precision Linear Scale, Resolution: 0.0005mm |
| Z-axis Measurement | Manual Type, measurement travel: 250mm |
| Video System | 5-grades High-definition 6.5:1 Click Zoom Lens, 1/3"Color CCD Camera |
| Illumination | Contour | Adjustable 256-grade LED Cold illumination |
| Surface | Adjustable 256-grades 4-Division LED Cold illumination |
| Measuring software | Quick Measuring 2.1 |
| Nte weight | 350Kg | 400Kg | 450Kg |
| Dimension(mm) | 930x610x1080 | 930x670x1100 | 1080x770x1100 |
|
|
|
|
|
|
| Standard Delivery | Code# | Standard Delivery | Code# | Standard Delivery | Code# |
| Measuring Software | QM2.1/3.1 | Color CCD Camera | 484-131 | Detended Zoom Lens | 421-111 |
| Calibration Block | 581-801 | Capture Card 7130 | 527-131 | 4-Division Illumination | 581-111 |
| Laser Positing Sensor | 581-331 | Scale Transfer | 564-301 | PC System | 581-961 |
| Prod Model: |
Vexus VM-3020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy (Um): |
3+L/200(Um) |
| Metal Table Size: |
458X358mm |
| Glass Table Size: |
350X280mm |
| X-Axis Travel: |
300mm |
| Y-Axis Travel: |
200mm |
| Repeatability: |
± 2um |
| Dimension (Mm): |
930X670X1100 |
| Net Weight: |
400kg |
