Supplier: | Suzhou Parsun Power Machine Co., Ltd. |
---|---|
Price: | Negotiable/Piece |
Min Order: | 2/Piece |
Quantity:: | |
Trade Terms: | FOB |
![]() |
Prod Model: | T2.5BM |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: | 2-Stroke,1-Cylinders, Reed Valve |
Displacement: | 74.6 Cc |
Full Throttle Rpm Range: | 4500~5500 |
Ignition System: | TCI |
Starting System: | Manual |
Steering System: | Tiller with 360° Full Pivot |
Gear Shift: | Forward-Neutral |
Trim And Tilt System: | Manual,4 Positions/Shallow Drive |
Oil Mixing Ratio: | 50:1(Fuel:Oil) |
Gear Oil Capacity: | 100cc |
Fuel: | Gasoline Engine |

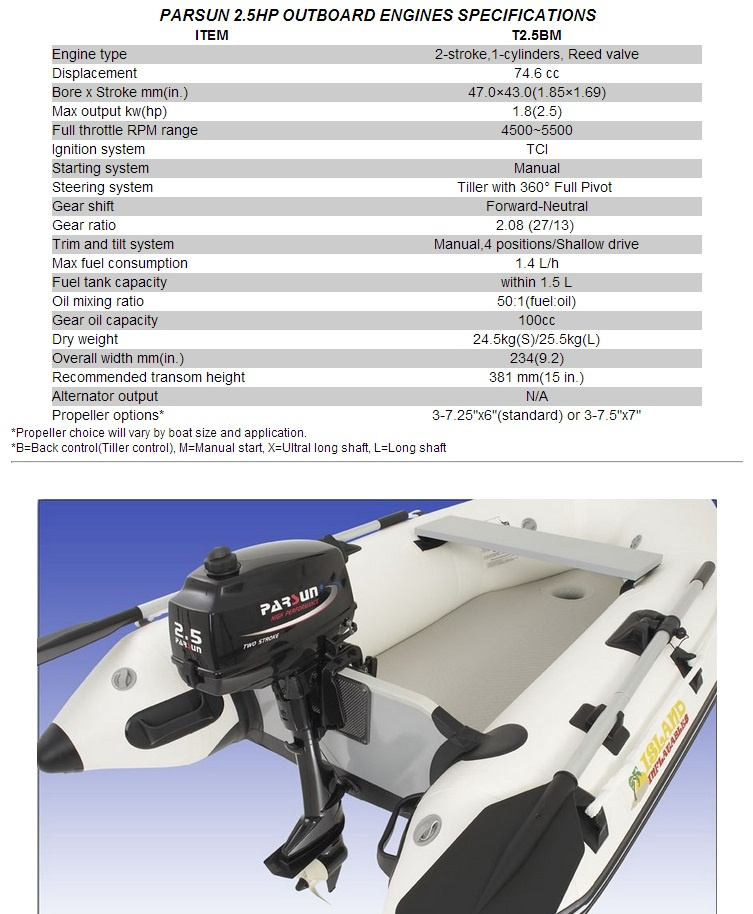

Model | Unit | T2.5BMS | T2.5BML | |
Item | ||||
Overall length | mm(in.) | 597(23.5) | 597(23.5) | |
Overall width | mm(in.) | 292(11.5) | 292(11.5) | |
Overall height | mm(in.) | 968(38.1) | 1095(43.1) | |
Transom height | mm(in.) | 381(15.0) | 508(20.0) | |
Weight | Kg | 14.5 | 15.5 | |
Full throttle operating range | r/min | 3800~5200 | 3800~5200 | |
Maximum output | Kw (HP) | 1.82.5@5000 | 1.82.5@5000 | |
@r/min | ||||
Idling speed (Neutral) | r/min | 1.3E+07 | 1.3E+07 | |
Cylinders | 1 | 1 | ||
Displacement | cm 3 | 74.6 | 74.6 | |
Bore ×stroke | mmin | 47×43(1.85×1.69) | 47×43(1.85×1.69) | |
Ignition system | TCI | TCI | ||
Control system | Tiller control | Tiller control | ||
Starting system | Manual start | Manual start | ||
Gear positions | Forward-Neutral-Reverse | Forward-Neutral-Reverse | ||
Gear ratio | 2.08 (27/13) | 2.08 (27/13) | ||
Trim and tilt system | Manual tilt | Manual tilt | ||
Fuel tank capacity | L | Integral 1.5 | Integral 1.5 | |
Maximum fuel waste | L /h | 1.4 | 1.4 | |
Gear oil capacity | cm 3 | 100 | 100 | |
Propeller options* | in | 3-7 1 /2"×7" or 3-7 1 /4"×6" | 3-7 1 /2"×7" or 3-7 1 /4"×6" |
