Shenzhen Htsled Optoelectronic Technology Co., Ltd. >> 2.5mm Indoor Fixed Installation LED Display

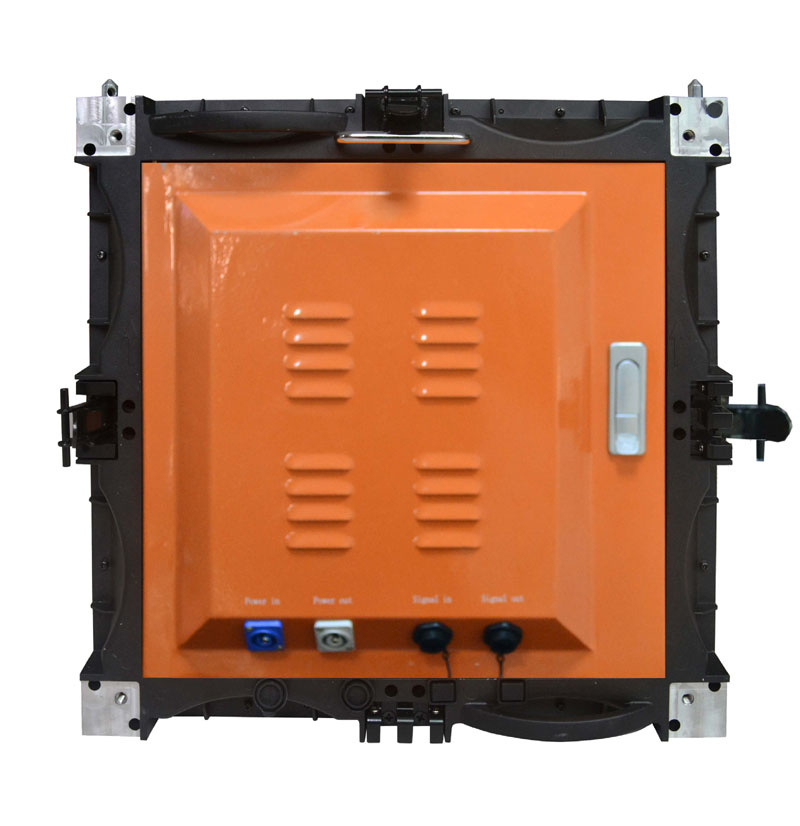

2.5mm Indoor Fixed Installation LED Display

Name: 2.5mm Indoor Fixed Installation LED Display
Brand: china-manufacturer-directory.com
SKU: 768925355
Availability: InStock
Rating: 4.6 (114 reviews)

Supplier:	Shenzhen Htsled Optoelectronic Technology Co., Ltd.
Price:	US $ 3200/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	P2.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	480X480mm
Material:	Die-Casting Aluminum
Tube Chip Color:	Full Color
IP Rating:	IP43
Display Function:	Video Display
Average Power Consumption:	600W / m²
Display Type:	LED Video Display
Application:	Advertising
Certification:	CCC
Pixel Pitch:	2.5mm
Pixel Configuration:	SMD2121 Black Face
Pixel Density:	160000dots/M2
Scanning Mode:	1/32 Scan

Product Description

Features:

1. Seamless of unit joint
2. Intelligence of brilliance control
3. Real and natural color
4. Exquisite and smooth picture
5. Greater Optimal viewing area
6. Stability

Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.

Unit Module	Item	Parameter
	Model Number	HTS-P2.5-32S
	Module size	240mm*240mm
	Pixel pitch	2.5mm
	Pixels Density	160000/m2
	Pixel configuration	1R1G1B
	LED Package mode	INTEEGRATION 3IN1 -1010
	Pixel resolution	96dots(W)*96 dots(H)
	Max Power	35W
	Module thickness	17mm
	Weight	0.66KG
	Drive type	Constant drive
	Scan mode	1/32 1/32scan
	Port type	HUB138
	Brightness of white balance	≥800cd/m2

LED Cabinet	Dimension	480mm*480mm

	Monomer Module Number	4
	Power supply	5V/40A*1 pcs
	Thermal discharge	fan 1pcs
	Pixel per cabinet	192*192
	Best viewing distance	4M~20M
	Best viewing angle	160°(W) 120°(H)
	Temperature	storage:-35ºC~+85ºC working:-20ºC~+50ºC
	Relative humidity	10%-95%
	Thickness	85mm

Power	Working voltage	AC220V±10%
	Average Power consumption	200W/
	Max.Power consumption	≤600W/
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥600HZ
	/ Grey scale/colors	4096,16.7M 4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768

Shenzhen HTSLED Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.

HTSLED is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
