2.7V 1f Cylindrical Super Capacitor for ESR Meter, Car Audio, Car Temperature Meter and etc

Name: 2.7V 1f Cylindrical Super Capacitor for ESR Meter, Car Audio, Car Temperature Meter and etc
Brand: china-manufacturer-directory.com
SKU: 749749585
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	2.7V1F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Supercapacitor
Application:	Meter
Package Type:	Surface Mount
Usage:	Meter, Car Audio and So on
Capacitance:	1f~400f
Manufacturing Material:	Carbon

Product Description

We offer a series of super capacitor.
Coin Super Capacitors: 5.5V 0.22F~4F
Cylindrical Super Capacitors: 2.7V 1F~400F

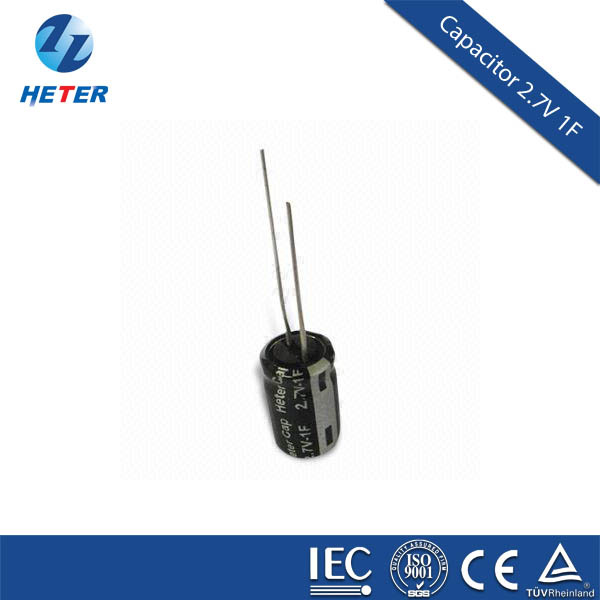

2.7V 1F Cylindrical Super Capacitor

Model	SR2R7105Z-L
Rated discharge capacitance	1 F
Capacitance tolerance	(-)20%~+80%
Rated voltage	2.7V
Surge voltage	2.85V
Nominal impedance AC Imp	400 mΩ
Nominal impedance DC Imp	650 mΩ
Working temperature range	(-)25~70°C
Storage temperature range	(-)40~85°C
Cycle life	Standard charge-discharge mode > 100000 cycles, ESR≤ 4 times of specified ES

2.7V Cylindrical Super Capacitor List:

Model	Lead Pin	Rated Voltage (V)	Capacitance (F)	Nominal Impedance		Approx Dimension
				AC lmp	DC lmp	ΦD	L	P
				(Ω)	(Ω)	(mm)	(mm)	(mm)
SR2R7105Z-L	L	2.7	1	400	650	8	13	3.5
SR2R7205Z-L	L	2.7	2	300	450	8	20	3.5
SR2R7305Z-L	L	2.7	3	220	350	8	20	3.5
SR2R7335Z-L	L	2.7	3.3	200	300	10	20	5.5
SR2R7475Z-L	L	2.7	4.7	120	180	12.5	21	5.5
SR2R7805Z-L	L	2.7	8	90	150	12.5	21	5.5
SR2R7106Z-L	L	2.7	10	70	110	12.5	26	5.5
SR2R7206Z-L	L	2.7	20	40	60	16	26	7.5
SR2R7306Z-L	L	2.7	30	30	45	16	32	7.5
SR2R7506Z-L	L	2.7	50	25	40	18	41	7.5
SR2R7606Z-S	S	2.7	60	25	40	22	45	10
SR2R7906Z-S	S	2.7	90	18	27	22	45	10
SR2R7107Z-S	S	2.7	100	16	25	22	50	10
SR2R7127Z-S	S	2.7	120	15	22	25	45	10
SR2R7157Z-S	S	2.7	150	14	20	25	50	10
SR2R7207Z-S	S	2.7	200	12	20	25	60	10
SR2R7307Z-S	S	2.7	300	10	15	35	55	10
SR2R7367Z-S	S	2.7	360	8	12	35	60	10
SR2R7407Z-S	S	2.7	400	7	10	35	70	10

Heter Electronics Group Co., Ltd. is located at Thailand Industrial Park, Hi-Tech District, Zaozhuang. As a high and new technology enterprise focusing on the field of green energy, Heter is the only group enterprise that has the ability of developing and manufacturing lithium iron phosphate materials, as well as manufacturing of power battery and battery pack, super capacitor, and sole electric automobiles. The lithium iron phosphate cathode material and lithium iron phosphate power batteries are developed and owned by Heter, which have great high and low temperature discharge performance, high reliability and consistency, outstanding performance in an environment with a temperature between -40° C and +80° C, not subjected to explosion and combustion due to over-charge, over-discharge, high temperature, short circuit, strike and downfall, squeeze, and puncture. While opening the civil market continuously, Heter's products also play a key role in the military application. In 2009, due to its technical strength and superior performance, the lithium iron phosphate power battery with the lithium iron phosphate cathode material developed by the group obtained the military product certificate issued by the People's Liberation Army General Staff Department of China.
