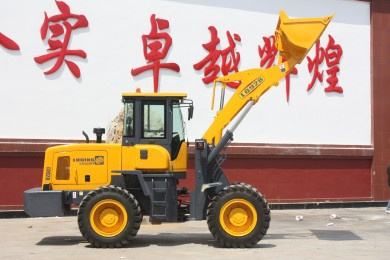

2.8ton Wheel Loader with CE, ISO9001

Name: 2.8ton Wheel Loader with CE, ISO9001
Brand: china-manufacturer-directory.com
SKU: 681423132
Availability: InStock
Rating: 4.7 (26 reviews)

Supplier:	Qingzhou Loader Factory Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LQ928
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wheel Loader:	Wheel Loader
Walking Mode:	Wheeled
Condition:	New
Type:	Medium-sized Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

1. Streamlined appearance design, elegant and generous 2. The working device bucket can be set level automatically, computer is adopted to optimize design, high efficiency 3. New sealing cab, Grammer seat, the operating environment is more comfortable 4. Can allocate many kinds of selectante assembly such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet the needs of various working states.

Specification LQ928
Rated capacity	1.5
Rated weight	2800kg
Operating weight	6500kg
Performance of bucket being set level	Yes
Max. breakout force	70KN
Max. drawbar pull	45KN
Max. grade ability	38°
Total of three time:lifting dumping lowering	9.7m
Max.dump height	3.2m/3.5m
Max.dump reach	1084mm
Min. ground clearance	310mm
Wheel base	2470mm
Tread	1380mm
Overall dimensions (lengthwidthheight)	615019703000mm
Engine	YTO/ WEICHAI/ CUMMINS
Model	YTO YT4B2Z-24/ WEICHAI 4RNSG3/ CUMMINS 4BT3.9-C100
Pattern	inline,water cooled,dir.inject,fourstrokees
Number of cylinders- internal diameter*strokes	4-108*120
Max.torsion	261Nm
Rated power	74.9KW/ 60KW/ 75KW
Min.fuel consuming rate	216g/kw.h
Specified rotational speed	2400r/min
Transmission	Gearbox seperated from torque converter
Model of torque device	YJ280
Pattern	3-element,single stage
Pattern of gearboxes	FULL-powershift,countersaft type
Number of great shift	4forward,4reverse
Max.travel speed	30km/h
Main reducer type	arc taper gear moderation of first grade
Pattern of wheelside moderation	planet gear moderation of single
Type size	16/70-20
Front type pressure	220KPa
Rear type pressure	180KPa
Steering angle(each direction)	35°±1
Min.turning radius(outside of bucket	4500mm

Parking brake	Soft axle control,outside bunch drum type
Fuel capacity	80L
Pressure of working hydraulic system	160kgf/cm 2

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. As a business possessing the broadest range of loader varieties in the industry, the company has been following a policy of "quality for survival, credit for development". It has passed the certifications of CE and ISO9001: 2000 Quality Management System, obtained the import and export right, passed the national commodity inspection, and been successively named the "Contract-stressing & Promise-observing Enterprise in Weifang City, Shandong Province", "Civilized Unit in Qingzhou City", "Advanced Unit in Social Security of Weifang City", and " Trustworthy Private Enterprise of Weifang City". We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
