Product Specifications
| Prod Model: |
sst-1 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Capacity: |
40t |
| Material: |
Steel |
| Scale: |
Heavy Duty |
| Components: |
Trailer Axles |
| Load Capacity: |
30T |
| Certification: |
ISO |
| Type: |
Semi-Trailer |
Product Description

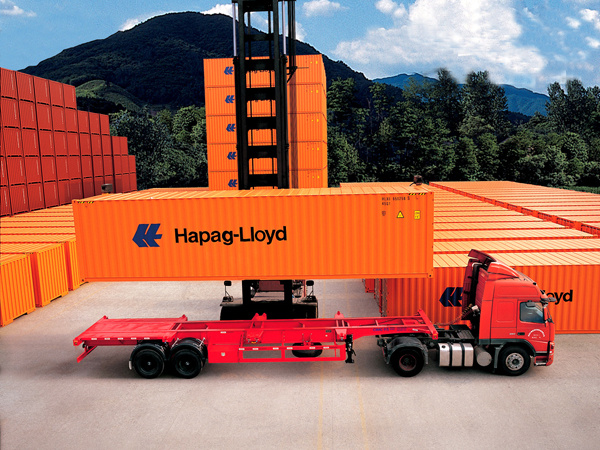

2 Axle skeleton semi trailer used to carry 40ft CONTAINER, container trailer
Air suspension/Spring suspension.
1. Axle number of the semi trailer: 2axles, 3axles, 4axle
2. FUWA or BPW Brand Axle
3. Rated load capacity of the semi trailer: 30-60tons
4. Tire type of the semi trailer: 11.00-20; 11.00R20; 12.00-20; 12R22.5
5. WABCO Brake System
Widely used in yard to carry container to ship on board.
2 Axle skeleton semi trailer used to carry 40ft CONTAINER, container trailer
Air suspension/Spring suspension.
1. Axle number of the semi trailer: 2axles, 3axles, 4axle
2. FUWA or BPW Brand Axle
3. Rated load capacity of the semi trailer: 30-60tons
4. Tire type of the semi trailer: 11.00-20; 11.00R20; 12.00-20; 12R22.5
5. WABCO Brake System
2 Axle skeleton semi trailer used to carry 40ft CONTAINER, container trailer
Air suspension/Spring suspension.
1. Axle number of the semi trailer: 2axles, 3axles, 4axle
2. FUWA or BPW Brand Axle
3. Rated load capacity of the semi trailer: 30-60tons
4. Tire type of the semi trailer: 11.00-20; 11.00R20; 12.00-20; 12R22.5
5. WABCO Brake System
Tare weightapprox. 6000kgsPay load45 tonsRUNNING GEARAxlesFUWA /BPW 13- 20 Tons load capacity per axle, wheel track 1840mm SuspensionMutil leaf spring Suspension with equalizer beam, 10 pcs of leaf springs, 90mm *13mm Rims8.5*20, 12 pcs Tires12.00R20, 12pcsBrakesDual line brake system, non-asbestos Brake ChambersOne unit relay valve and emergency valve with T30 and T30/30 chambers together, air-actuatedUNDERFRAMEMain BeamI shape, 550-600mm Height, Mild Alloy (Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding. Top Flange 20mm, width 200mm; Bottom Flange 20mm, width 200mm; Middle Flange 10mm thicknessSide beam16# channel BumperHeavy duty Bumper at the end, 18# channel King pin3.5" or 2.0'' according to the tractorLanding Geardouble speed landing gear, Dynamic capacity 28TonsTwist lock12 locking pin design suit for 2 x 20ft, 1 x 40ft container, center lock pin can laid downMudguard3mm steel plate bending or plasticAppendix1 tool box, 1.5m*0.55m*0.45m, 2mm thickness1 Spare tyre carrier1 set of standard trailer toolELECTRICAL & PAINTLights & ReflectorsRear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate lightAir/Elec. ConnectorISO standard air connector, 24V 7 pin plug socketPaintsand blasting before paintinganticorrosive primer2 coat of finishing urethane paintColor as per your request
Welcome you to contact us.
|
Tare weight |
approx.6000kgs |
|
Pay load |
45 tons |
|
RUNNING GEAR |
|
Axles |
FUWA /BPW 13- 20 Tons load capacity per axle, wheel track 1840mm |
|
Suspension |
Mutil leaf spring Suspension with equalizer beam, 10 pcs of leaf springs, 90mm *13mm |
|
Rims |
8.5*20, 12 pcs |
|
Tires |
12.00R20, 12pcs |
|
Brakes |
Dual line brake system, non-asbestos |
|
Brake Chambers |
One unit relay valve and emergency valve with T30 and T30/30 chambers together, air-actuated |
|
UNDERFRAME |
|
Main Beam |
I shape, 550-600mm Height, Mild Alloy (Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding. Top Flange 20mm, width 200mm; Bottom Flange 20mm,width 200mm;Middle Flange 10mm thickness |
|
Side beam |
16# channel |
|
Bumper |
Heavy duty Bumper at the end, 18# channel |
|
King pin |
3.5" or 2.0'' according to the tractor |
|
Landing Gear |
double speed landing gear, Dynamic capacity 28Tons |
|
Twist lock |
12 locking pin design suit for 2 x 20ft, 1 x 40ft container, center lock pin can laid down |
|
Mudguard |
3mm steel plate bending or plastic |
|
Appendix |
1 tool box,1.5m*0.55m*0.45m, 2mm thickness |
|
1 Spare tyre carrier |
|
1 set of standard trailer tool |
|
ELECTRICAL & PAINT |
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Air/Elec. Connector |
ISO standard air connector, |
|
24V 7 pin plug socket |
|
Paint |
sand blasting before painting |
|
anticorrosive primer |
|
2 coat of finishing urethane paint |
|
Color as per your request |
