Product Specifications
| Prod Model: |
RY600-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ry2600-21000 |
| Color: |
2 |
| Prinitng Width: |
560-960mm |
| Printing Lenght: |
191-1200mm |
| Thicknss Of Plate: |
2.28mm |
| Color & Page: |
Multi-Colour Printing Press |
| System Supported: |
Flexographic Printing Machine |
Product Description

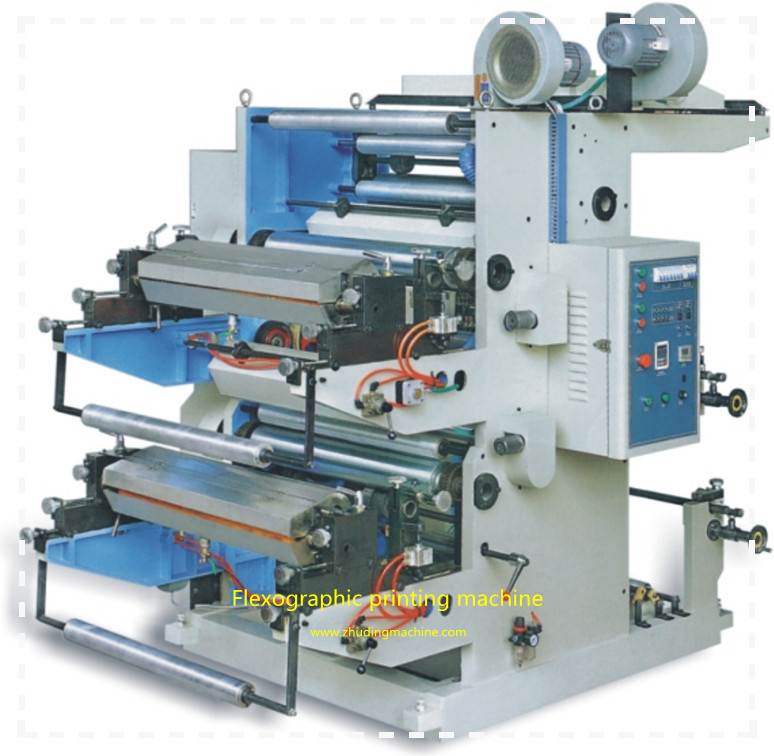

2-COLOR FLEXOGRAPHIC PRINTING MACHINE
1.Characteristics:
This machine is suitable for printing such packing material as polyethylene, polypropylene plasic bag, glass paper and web, etc. And it is the ideal printing equipment for producing paper packing abg for food, supermarket handbag, and clothes bag etc.
1. Easy operation, flexible starting, accurate color register.
2. The number counter can set printing quantity as required. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually (automatic type is optional device), it will automatically stir the printing ink after lifting.
4. The printing ink is transmitted by the cobweb barrel with even ink color.
5. Reliable drying system coordinate with high-speed rotation will automatically break the circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The imported frequency conversion control of motor for speed adapts to different printing speeds.
8. There are "Run"&"stop"buttons on the plate roller base and material drawing-in rack so as to make it easy for operating the machine when the plate is installed.
|
Model |
Color no. |
Printing width |
Printing length |
Printing speed |
Thickness of plate |
Dimension of machine |
RY2600
RY2800
RY21000 |
2 |
560mm
760mm
960mm |
191-1200mm |
5-50m/min |
2.28mm |
2300x1600x2200
2300x1800x2200
2300x2000x2200 |
RY4600
RY4800
RY41000 |
4 |
560mm
760mm
960mm |
191-1200mm |
5-50m/min |
2.28mm |
4800x1600x2400
4800x1800x2400
4800x2000x2400 |
RY6600
RY6800
RY61000 |
6 |
560mm
760mm
960mm |
191-1200mm |
5-50m/min |
2.28mm |
4800x1600x2800
4800x1800x2800
4800x2000x2800 |
Wenzhou Zhuding Machine Co., Ltd. (Wan Qun Industrial Company Limited) is an enterprise which was recognized by the state, gathering scientific research, manufacturing, sales, import and export business as a whole.
The company was founded in 1995, All employees through the unremitting efforts of 17 years, now has developed to the factory covers an area of 25, 00 square meters, 80 workers.
Our company specializes in manufacturing Non woven fabric production line, non woven bag making machine, rice bag cutting and sewing machine, laminating machines, flexographic printing machine, film blowing machine, shopping bag making machines etc plastic machinery equipment. Products have sold throughout the country, as well as Turkey, Mexico, Brazil, Zimbabwe, Russia, Vietnam, Indonesia and other overseas countries and regions.
We will, as always, adhere to the "Credit creates benifits, quality produces life" purposes. Company president Mr Zhu QingRong and G. manager Mr Ye Michael with all the staff sincerely hope to have a pleasure cooperation with customers both at home and abroad in the future.
