2 Cores FTTH Self-Supporting Drop Cable

Name: 2 Cores FTTH Self-Supporting Drop Cable
Brand: china-manufacturer-directory.com
SKU: 772059775
Availability: InStock
Rating: 4.5 (95 reviews)

Supplier:	Ningbo Haishu Efon Communication Equipment Limited
Price:	US $ 0.126-0.126/Meter
Min Order:	2000/Meter
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	GJYXCH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,Om3-150 ,
Strength Member:	Two Parallel FRP/Steel Wires
Fiber Material:	Doped Silica
Fiber Count:	1-4 Cores
Certificate:	ISO9001 Tlc RoHS
Self-Supporting Strength Member:	Steel Wire
Material Of Jacket:	Lszh,PVC
Applications:	Outdoor
Operating Temperature:	-40 ~ +60 C
Lszh:	Low Smoke,Zero Halogen,Flame Retardant
Application:	Communication
Certification:	CCC
Type:	Fiber Optical Cable
Connection Structure:	Other
Core:	1-4
Brand:	Efon
Sheath Material:	Lszh,PVC

Product Description

Features:

1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3.Simple structure, light weight and high practicability
4.Novel flute design, easily strip and splice, simplify the installation and maintenance
5.Low smoke, zero halogen and flame retardant sheath

Structure:

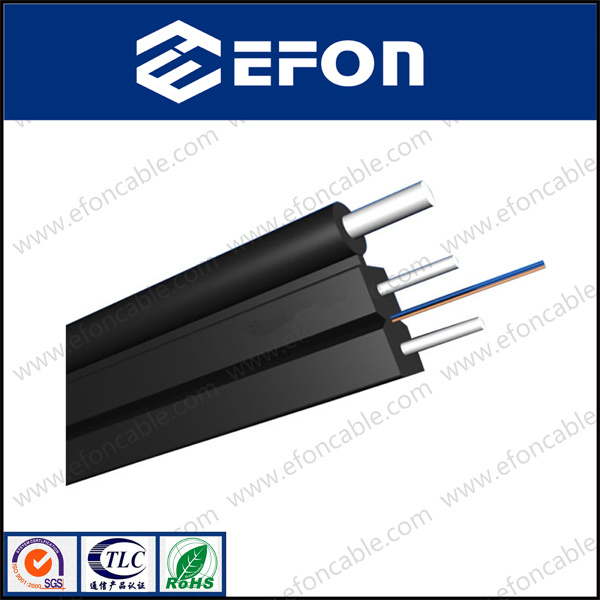

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Cable Code	Cable Count	Cable Size (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Crush resistance (mm)		Range of temperature ( °C )
Cable Code	Cable Count	Cable Size (mm)	Cable Weight (kg/km)	Long Turn	Short Turn	Long Turn	Short Turn	Dynamic	Static	Range of temperature ( °C )
GJYXFCH-01	1	2.0*5.0	20	300	600	1100	2200	30D	15D	-20~+60
GJYXFCH-02	2	2.0*5.0	21	300	600	1100	2200	30D	15D
GJYXFCH-04	4	2.0*5.0	23	300	600	1100	2200	30D	15D

Optical Characteristics:

Fiber Sort

Multimode

G.651

A1a:50/125

Graded-index fiber

A1b:62.5/125

Singlemode

G.652(A,B,C)

B1.1:Conventional fiber

G.652D

B2: Zero dispersion shifted

G.655

B1.2 :Cut-off wavelength shifted

G.657(A1,A2 ,B3)

B4: Main technical data for positive
dispersion shifted single-mode fiber
