2 in 1 Yihua 898d+ Soldering Desoldering Station

Name: 2 in 1 Yihua 898d+ Soldering Desoldering Station
Brand: china-manufacturer-directory.com
SKU: 620339584
Availability: InStock
Rating: 4.4 (28 reviews)

Supplier:	Guangzhou Yihua Electronic Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	YIHUA 898D+
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Yihua898d+
Color:	Black Case and White Front Panel
Iron Heater:	Imported Heater
Qty:	8PCS/CTN
Inner Box Size:	2920.517cm
Outer Carton Size:	59.54136cm
Goods Weight:	3.08kg/PCS
G.W.:	24.64kg/CTN

Product Description

2 in 1 YIHUA 898D+ Soldering Desoldering Station

Feature:

which is improved from 878 series and inherited all advantages.

Alloy metal body with high-quality silicone shell features elegant appearance and
power saving.You can use hot air gun and soldering iron separately, no interference
with each other.SAMSUNG chip control circuit adopted, it ensures rapid warming-up
and stable accurate temperature control which at the same time not affected
by airflow to really achievelead-free soldering anddesoldering. Especially suitable
for mounting and reworking SMD components by hand. Really a must have!

1.Dual Blue LED digital displays to show hot air gun and soldering iron
precision temperature.

2. Hot air gun and soldering iron separate and no interference with each other.

3. Extremely low noise and space saving design.

4. SAMSUNG microcomputer control, quick warming-up.

5. A 70 watt output soldering iron with temp range of 200°C - 480°C.

6. Adjust the airflow and temperature control rotation easily.

7. ESD design of soldering iron to protect sensitive components.

8. Handle with sensor switch for eradicating fire and safety potential.

9.Intelligence cooling function for effectively prolonging the heater's life and
protecting the hot air gun.

10.International standard heater for convenient use and exchange.

11.High-quality resistance for durable use.

12. Suitable for SOIC, CHIP, QFP, PLCC, BGA and temperature-sensitive components.

13. Plastic holder for placing the hot air gun.

14. Stand for keeping the iron from flammable materials.

15.Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out,
pre-heating and glue soldering.

16.ESD safe design of soldering iron to protect sensitive components &
CE approved .

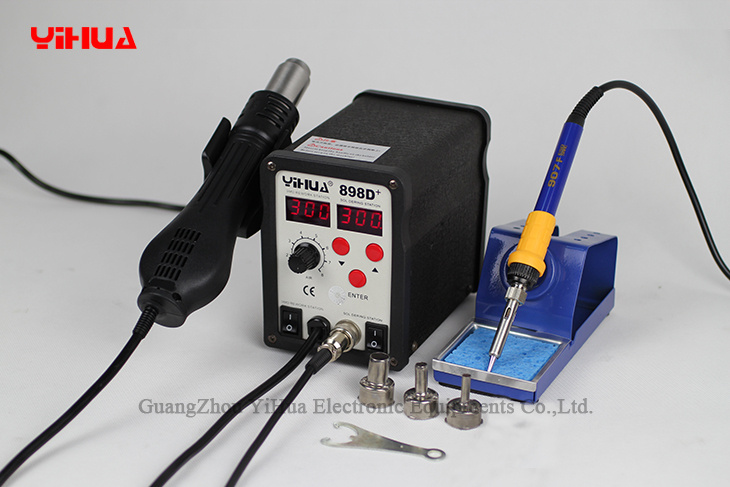

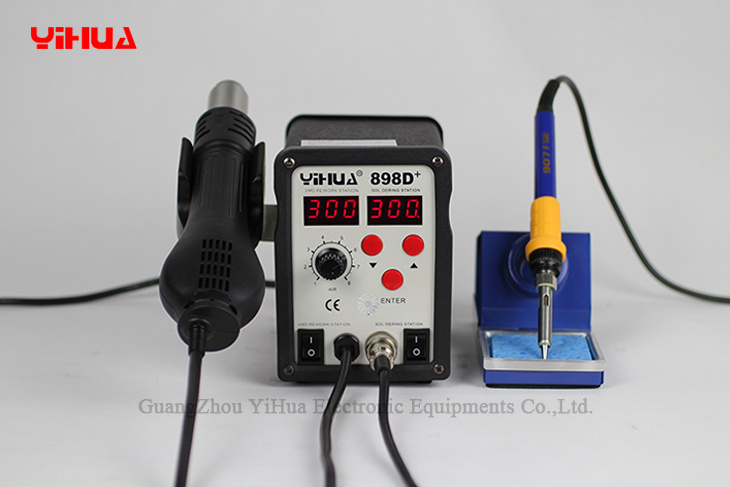

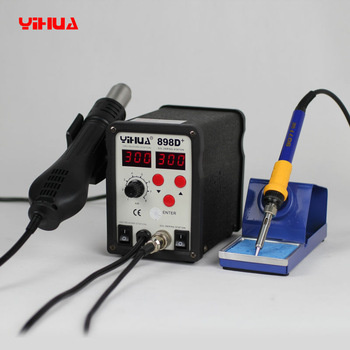

2 in 1 YIHUA 898D+ Soldering Desoldering Station products pictures

MAIN FUNCTION

1. Comfortable portable handheld and the Digital LED display.

2. Microcomputer control,warming-up quickly.

3. Adjust the air flow and temperature control rotation.

4. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.

5. Would replace the part if the resistance value is incorrect.

6. When the temperature is less than 70 degree, can stop rotation automatically.

7. Intelligent system that could alarm , Fault detection automatically.

8. This product is ESD-protected.

9. High-quality resistance good for long service life

10. Shell using alloy material, elegant appearance.

11. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.

12. Intelligent detection and cool airflow features.

13. Green lines and high-quality silicone body heat good for extend life and save power.

Remark: Specifications and design subject to change without notice

What's in the box :

* main unit + gun + power cord

* guide

* soldering iron

* soldering iron holder

* 3 nozzles (Bayonet stainless steel nozzle)

*1pcs small spanner

These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units

Power consumption	720W Air flow:120L/MIN
Gun temperature range	100-480 o C	Soldering Iron Temperature range	200-480 o C
Gun type	brushless fan	Soldering Iron type	Blue handle
Gun heater material	Ferro-Alloys	Soldering Iron heater material	Import high-power heater
Gun heater resistance	74Ω	Soldering Iron heater resistance	3.5~4.1Ω

Model NO.	Inner box Dimension(cm)	Outer box Dimension(cm)	QTY	Product weight
YIHUA 898D+	2616.514.8	603238	8pcs	3.08kg
