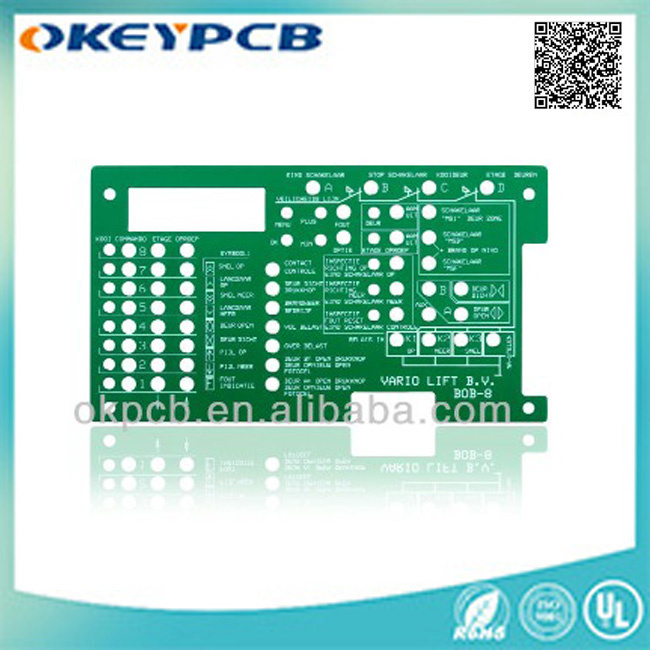

2 Layers PCB Printed Circuit Board

Name: 2 Layers PCB Printed Circuit Board
Brand: china-manufacturer-directory.com
SKU: 731584055
Availability: InStock
Rating: 4.7 (109 reviews)

Supplier:	Shenzhen Okey Circuit Co., Ltd.
Price:	US $ 0.53/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Okey-am-0523-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification:	Can Be Customized
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Specifications

PCB Board
1. Reputable manufacturer
2. Certificate: ISO UL RoHS REACH
3. FR-4 Material
4. Timely deliver

PCB board Manufacturer

Features

Suitable for BGA with smaller ball pitch and higher I/O counts
Thin board capabilities
Increase routing density in complicated design
Excellent mounting stability and reliability
Qualified material and surface treatment for Lead-free process

Applications

Smartphone, Feature Phone, Tablet, Ultrabook, e-Reader, MP3 Player, GPS, Portable Game Console, DSC, Camcorder, LCD Module

Benefits

1. We have 10 years experience in PRINTED CIRCUIT BOARD field to serve your needs
2. Competitive PRINTED CIRCUIT BOARD price with high quality
3. Excellent service and prompt delivery
4. Our PRINTED CIRCUIT BOARD get ISO and UL Certificates and meet RoHS, REACH standard

NO	ITEM	Technical capabilities
1	Layers	1-12 layers
2	Max. Board size	1500×610mm
3	Min. board Thickness	2-layer 0.25mm
		4-layer 0.4mm
		6-layer 0.6mm
		8-layer 1.5mm
		10-layer 1.6~2.0mm
4	Min. line Width/Space	0.15mm (4-5mil)
5	Max. Copper thickness	10OZ
6	Min. S/M Pitch	0.15mm(4-5mil)
7	Min. hole size	0.2mm (8mil)
8	Hole dia. Tolerance (PTH)	±0.05mm(2mil)
9	Hole dia. Tolerance (NPTH)	+0/-0.05mm(2mil)
10	Hole position deviation	±0.05mm(2mil)
11	Outline tolerance	±0.10mm(4mil)
12	Twist & Bent	0.75%
13	Insulation Resistance	>10 12 Ω Normal
14	Electric strength	>1.3kv/mm
15	S/M abrasion	>6H
16	Thermal stress	288°C 10Sec
17	Test Voltage	50-300V
18	Min. blind/buried via	0.15mm (6mil)
19	Surface Finished	HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold
20	Materials	FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base

Shenzhen Okey Circuit Co., Ltd.Is a manufacturer specializing in the research & development, manufacture and marketing of PCB boards.We have had about 600 workers and 30 R&D technicians since our company was established in Shenzhen City of Guangdong Province in 2006.Covering an area of 10, 000 square meters, our workshops are equipped with about 60 binding machines.
"Quality first, customer highest and service thoughtful" is the management principle that we always adhere to.Our working target is "to do our best to satisfy customers".Our products have the best quality and reasonable prices.Our products sell well in South Asia, the Middle East, Europe, America, Australia, etc.
