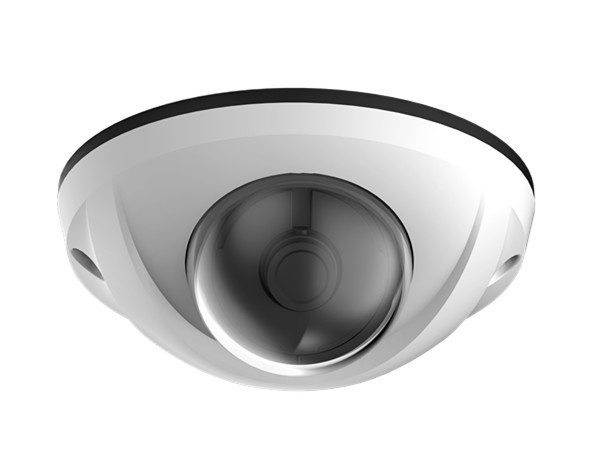

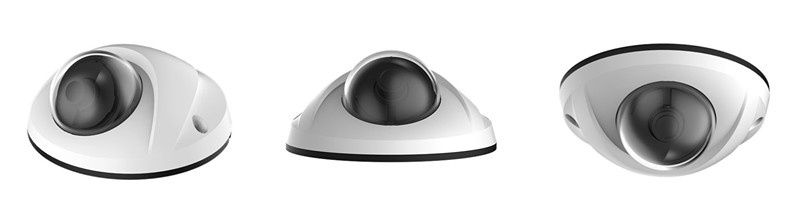

Network 1080P 2 Megapixel Security Mini IP Dome Camera/CCTV Camera
Features1/2.8" SONY Exmor progressive scan CMOS Image Sensor;
Auto Iris, Auto Electronic Shutter, Adapt to different environment;
Support Static IP(IP address, Subnet Mask, Gate way and DNS an be set)
Support PPPOE, VLC,NTP,UPNP;
Support Triple Streaming simultaneous output, 1CH 1080P(network transmission) and 2CH D1(storage and mobile browsing),Max frame rate 25fps;
Image parameter adjustable(Brightness, contrast, hue, saturation;
Bit-rate switchable(VBR and CBR);
16 user IE viewing in the same time; 4 mask zone;
4CH multiscreen play back in the same time;
PoE optional;
RS485, Double SD card, Alarm I/O, Audio I/O optional.
Hot Sale 2.0 Megapixel IP Camera
New Design 2.1MP HD IP Camera/WS-IP314
|
Model |
WS-IP311 |
|
Hardware |
|
|
|
|
|
SOC |
Hi3516C |
|
Image Sensor |
1/2.8" 2 Megapixel progresive scan Sony EXMOR CMOS 138 |
|
Effective Pixels |
1920(H) x 1080(V) |
|
Interface |
|
|
Optical Lens |
Interfaces |
M12 |
|
Iris |
Fix Iris |
|
Focal Length |
3.6mm |
|
Audio Talkback |
1CH Mic input or External access,3.5mm AV interface(with MIC, waterproof will IP65, without MIC is IP66)(Optional) |
|
Audio Output |
1CH speaker output, 3.5mm AV interface(Optional) |
|
Network Interface |
Lan |
10/100M BASE-TX,RJ-45 connector |
|
RS485 |
RS485 port optional |
|
Alarm I/O |
1ch Alarm input or 1ch alarm output(optional) |
|
Memory Slot |
Micro SD, Max 32GB |
|
Audio & Video Encoding |
|
|
|
|
Video Compression |
H.264 Main Profile,;MJPEG Baseline |
|
Resolution |
Main Stream |
1920x1080/1280x720;1-25fps(Adjust) |
|
Sub Stream |
720x576/640x480/640x352/352x288/320x240;1-25fps(Adjust) |
|
Video Bitrate |
30Kbps - 16Mbps, Supports CBR/VBR |
|
Tilt OSD Settings |
Support channel name, date and video stream information overlay |
|
OSD location is adjustable |
|
Privacy Mask |
4 Configurable regions |
|
Image Orientation |
image flip and mirror |
|
Auto Image Control Functions |
Auto Exposure Control(AEC), Auto White Balance(AWB);Auto Gain Control(AGC) |
|
Manual Image Controls |
Color saturation, hue, gamma, sharpness(edge enhancement) |
|
Others |
Anti Fogging/Anti Trembling/IR Detection/IRIS |
|
Audio Compression |
G7.11A/G7.11U/G7.26 |
|
Two Way Audio |
support |
|
Date transmission & Storage |
|
|
|
|
Date storage |
Video and Image |
|
Recording |
Recording set up to record by Auto or Manual(motion and alarm trigger, schedule) |
|
Alarm Output |
FTP,E-Mail |
|
Network Protocol |
TCP/IP,UDP,RTP,TRST,TRCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
|
ONVIF protocols |
Support 2.2 version |
|
Remote View |
PC |
IE 6.0 Above, firefox, Google Chrome |
|
Mobile Phone |
Support Windows Mobile, Symbian, iPhone, Android system |
|
Max. User Access |
16 users |
|
General Parameters |
|
|
|
|
|
Enviromental Casing |
Aluminum alloy Housing, Indoor use |
|
Installation |
Ceiling mount, 3D adjustable |
|
Opetration Temperature |
10 °C ~ 50 °C |
|
Opetration Humidity |
0%-85%RH |
|
Power |
DC12V |
|
POE |
Support |
|
Power Consumption |
2.4W |
|
Dimension |
Φ106×H54mm |
|
Weight |
299g |
