Swans X3

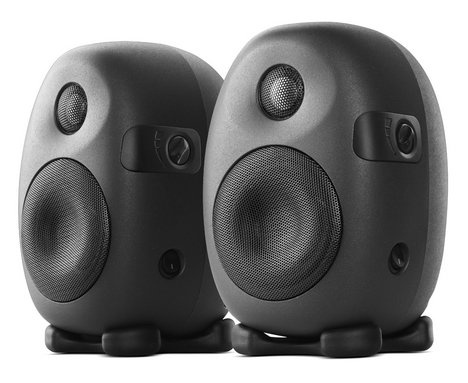

HiVi X3 is a compact high performance active 2-way desktop monitor speaker. It has a built-in professional active filter and power amplifier. The egg-shaped cabinet has low diffraction and good acoustic properties. The die cast aluminum cabinet is extremely strong, and gets maximum volume from its small surface area. The X3 uses a complex low air noise internal bending tube specifically designed for the small cabinet space. The X3 speaker configuration uses a 3-inch woofer and 20mm metal dome tweeter. The crater-shaped tweeter surrounding uses advanced finite element computer aided design in order to obtain a smooth and accurate frequency response and ensure precise sound image localization. The X3 is equipped with a high damping rubber base allowing secure placement, reducing sound distortion caused by extra vibration and also enables +/- 15 degrees of vertical rotation.
The X3 egg-shaped box has a scratch-resistant surface coating and convenient side volume control, along with treble, MID-range and bass control switches on the back. The X3 is specially designed for compact desktop environment with a design philosophy of small size, great sound. The frequency response is 75Hz-20kHz (± 2.5dB, free space) suitable for notebook/tablet computers and digital devices. The X3 offers both desktop and wall-mounted installation, with a mounting rack allowing adjustment to any listening angle. The X3 can also be combined with HiVi's active subwoofer to become a 2.1 system, with a low-frequency extending below 35Hz, creating a wideband dynamic sound system for music and movies.
The X3 is among the lowest low-frequency extension against similar compact sized speakers, along with a smooth full-frequency response. The compact and strong die-cast aluminum egg-shaped cabinet has lower sound diffraction and many choosable color-finishes. The X3 combines advance speaker driver design and professional active filter/power amplifier technology to reproduce smooth frequency response and low distortion in many different acoustic environments, with accurate sound image positioning and extended low frequency performance. The X3 conveniently connects with different sound sources becoming a unique compact professional monitor/multimedia speaker system.
Specifications
General Data
Model Swans X3
System Series Professional Active Crossover Monitor Speaker System
Acoustic System
System Type 2-way 4th-order vented speaker system
Drivers Configuration 3" woofer4/5" tweeter
Frequency Range 75Hz - 20kHz (± 2.5dB, free space)
Harmonic Distortion 330Hz - 20kHz ≤ 1%(80dB/1m)
Amplifiers System
Rated Power 28W RMS/Channel
Input Max 3000mV
Filter Type: Professional active crossover filter
Active Crossover Frequency 3.0kHz
Bass Adjust +2/0/-2dB(100Hz)
MID Range Adjust 0/-2/-4dB(200Hz)
Treble Adjust +1/0/-1dB(10kHz)
Signal-to-Noise > 96dB
Input sensitivity 350mV
Input impedance 12k
Other Parameter
Finished Die-casting aluminum cabinet
Dimension (W× H× D) 5.04"× 4.84"× 7.13"
Net Weight 3.53 lbs
Hivi is a world renowned speaker manufacturer with almost two decades experience in the high end audio industry. The company's origins began in high end loudspeaker driver manufacturing in the early 1990's but have since grown to encompass the following product categories: Home TheaterHigh End AudioMultimedia SystemsCustom InstallationProfessional AudioCar AudioLoudspeaker Drivers
HiVi is the owner of internationally acclaimed loudspeaker brand Swan Speaker Systems since 1997 and has retained its original founder Frank Hale as Chief Design Engineer. Today HiVi's design and engineering is still done in California, USA where it has maintained it's head offices for the past decade.
HiVi's core goal is to create a better quality of life through music and theater: Seamlessly integrating high definition music and sound into every aspect of daily life.
