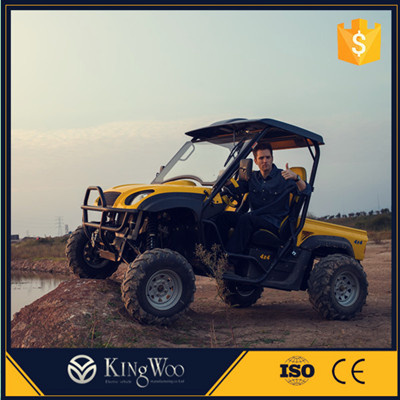

2 Seats EEC UTV 4X4

Product Specifications

Prod Model:	KW500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Kingwoo
MOQ:	6 Set
Color:	as You Like
Loading Port:	Ningbo
Certificates:	EEC Coc
Delivery Time:	7~15 Days
Warranty:	13 Month
Certification:	EEC
Emission Standard:	Euro 1
Condition:	New

Product Description

2 seats eec UTV 4X4

1. Our Advantage:
    Kingwoo , manufacturer , trading company
    Fast delivery from factory directly
    More 10 years producting experience
    Import advanced technology from American and Korea
    The Apple Inc. Supplier for parts
    Milano Expo 2015 Supplier for classic electric car

UTV with EEC APPROVED

Specification:
Overall dimension(s): 2950x1375x1860mm
Cargo bed Dimensions: (L x W x H) 1180×930×340mm
Wheelbase: 1905mm
Max forward speed: 60(km/h)
Climbing ability: <=20 °
Battery: 8V 150Ah X 9 lead-acid battery
Motor: 5KW, 51V, 82AMP 102HZ
Max Power: 15kW
Max Torque: 70N.m
Drive System: RWD
Min turning radius: 3.5 m
Running on 1 full charge: 80km
Electricity Consumption of Sigle Charge: 10Kwh


Motor					Suspension
Motor Type:5KW, 51V, 82AMP 102HZ					Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
Electricity Consumption of Sigle Charge: 10Kwh					Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
Brakes					Tires
Front/Rear Brakes: 4-Wheel Hydraulic Disc					Front Tires: 175/65 R14 82H
Parking Brakes: Hand-Actuated					Rear Tires:  175/65 R14 82H
Function/ Dimensions/ Capacities
Wheelbase: 1905mm					Drive System: RWD
Dry Weight: 788kgs					Battery: 8V, 150Ahx9
Overall Vehicle Size: (L x W x H)2950x1375x1860mm					Overall Vehicle Load Weight: 340kgs
Min Ground Clearance: 220mm					Hitch Towing Rating: 500kgs
Cargo bed Dimensions: (L x W x H)1180×930×340mm					Cargo bed: Capacity185kgs
