Zhangjiagang Shuaifei Drink Machinery Co., Ltd. >> 2000-12000bph Automatic Juice/Tea Filling Capping Machine

2000-12000bph Automatic Juice/Tea Filling Capping Machine

Name: 2000-12000bph Automatic Juice/Tea Filling Capping Machine
Brand: china-manufacturer-directory.com
SKU: 703365135
Availability: InStock
Rating: 4.4 (62 reviews)

Supplier:	Zhangjiagang Shuaifei Drink Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Fully Automatic
Structure:	Rotary
Feed Cylinder Structure:	Single-Room Feeding
Material Type:	Liquid
Type:	Count Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Chute Lifting
Filling Principle:	Negative Pressure
Packaging Type:	Bottle
Dosing Device:	Surface Type
Packaging Material:	Wooden

Product Description

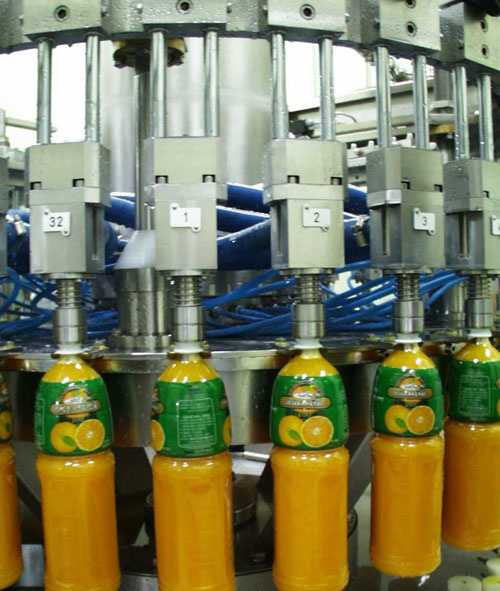

Automtic hot juice filling capping machine:
Automatichot juice filling capping machine uesd for PET bottle filling all sorts of juice/ tea and non-carbonated hot beverage, realizing rinsing filling capping in one hot juice filling machine.
CGF series Automatic hot juice Filling Capping Machine apply to the production of juice drink, tea drink, etc.
Automatic hot juice Filling Capping line includes:
- Water treatment
- Blow molding machine
- Unscrambler
- Air conveyor
- Rinsing-filling-capping 3-in-1 monoblock hot juice machine
- Sleeve / OPP labeler
- Air dryer, visual inspection, ink jet printer
- Shrink wrapper / wrap-round case packer
- Palletizer
- etc
Technical Parameters of automatic hot juice filling capping machine:
- Number of Filling Valves: 12-32
- Filling Speed: 2, 000-15, 000BPH (500ml)
- Type of Bottles: PET Bottles of various shapes
- Bottle Height: 150-320(mm)
- Bottle Diameter: Φ 50-100(mm)
- Filling Temperature: Hot temperature
- Filling Principle: Gravity Filling
- Filling Product: Fruit juice, grape juice, black tea, green tea

Product Description:
The series equipment is used in production of PET bottle-packing carbonated beverage such as Coca-Cola, containing gas mineral water, containing gas juice etc. The machine combines washing/filling/capping with complete automation, and the filling process adopted the micro-pressure technology, which makes filling process faster and more stable. The capacity can be from 3000 to 12000B/H.
Characteristic:
1. It can carry out bottle washing filling and capping in one machine.
2. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.
3. It adopts bottleneck blocking type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
4. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products.

Model:	RCGF16/12/6	RCGF18/18/6	RCGF24/24/8	RCGF32/32/10	RCGF40/40/12	RCGF48/48/12
Production Capacity: 500ml(B/h)	3000	6000	8000-10000	14000	17000	20000
Suitable Bottle Standard: (mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard: (mm)	φ 50-φ 110
Filling Pressure: (Mpa)	0.2-0.3
Filling Model:	by Gavity
Installed Capacity: (L)	3.13	3.84	3.84	5.6	6.3	7.3
Overall SizeL× W× H(mm)	2400× 1670 × 2350	2470× 1970 × 2350	2865× 2170 × 2350	3700× 2570 × 2350	3800× 2950 × 2400	4500× 3400 × 2400
Total Weight: (kg)	2500	3000	4000	5000	6000	7000

Model:	RCGF16/12/6	RCGF18/18/6	RCGF24/24/8	RCGF32/32/10	RCGF40/40/12	RCGF48/48/12
Production Capacity: 500ml(B/h)	3000	6000	8000-10000	14000	17000	20000
Suitable Bottle Standard: (mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard: (mm)	φ 50-φ 110
Filling Pressure: (Mpa)	0.2-0.3
Filling Model:	by Gavity
Installed Capacity: (L)	3.13	3.84	3.84	5.6	6.3	7.3
Overall SizeL× W× H(mm)	2400× 1670 × 2350	2470× 1970 × 2350	2865× 2170 × 2350	3700× 2570 × 2350	3800× 2950 × 2400	4500× 3400 × 2400
Total Weight: (kg)	2500	3000	4000	5000	6000	7000

Our company enjoys pleasant scenery and convenient transportation of land and water.

Our company specializes in manufacturing various kinds of drinking machines.
We have a team of high quality and professional workers who have valuable designing and manufacturing experience.

Our main products are:
(1) Water treatment system
(2) Pure Water, Mineral Water Producing Line;
(3) Tea, Juice Hot Filling Producing Line;
(4) Carbonated Drink Producing Line;
(5) Beer Filling Line;
(6) Other Related Equipment.

If you're looking for suppliers in China, please feel free to contact us for more details.

We welcome customers from all over the world to visit us.
