Zhangjiagang Links-Machine Co., Ltd. >> 2000bph Water Bottling Filling Capping Machine

2000bph Water Bottling Filling Capping Machine

Name: 2000bph Water Bottling Filling Capping Machine
Brand: china-manufacturer-directory.com
SKU: 693097722
Availability: InStock
Rating: 4.9 (142 reviews)

Supplier:	Zhangjiagang Links-Machine Co., Ltd.
Price:	US $ 4000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	2000BPH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	1500-2000 Bottles Per Hour
Control System:	PLC Mitsubishi
Bottle Type:	Plastic Bottle / Glass Bottle
Bottle Volume:	200ml to 2500ml Adjustable
Beverage Drinks:	Pure/Mineral Water
Exchange Parts For Different Bottles:	Provided.
Machines Main Material:	Stainless Steel 304 Food Grade
Capacity Base On 500ml Bottle:	1500bph(Max 2000bph)
Voltage:	Be Designed by Customer Requests
Certificate:	SGS, CE, ISO.
Automatic Grade:	Fully Automatic
Filling Principle:	Atmospheric Pressure
Structure:	Linear
Feed Cylinder Structure:	Multi-Room Feeding
Material Type:	Liquid
Type:	Volumetric Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Chute Pneumatic Combination Lifting
Packaging Type:	Bottle
Packaging Material:	Plastic
Dosing Device:	Volume Pressure

Product Description

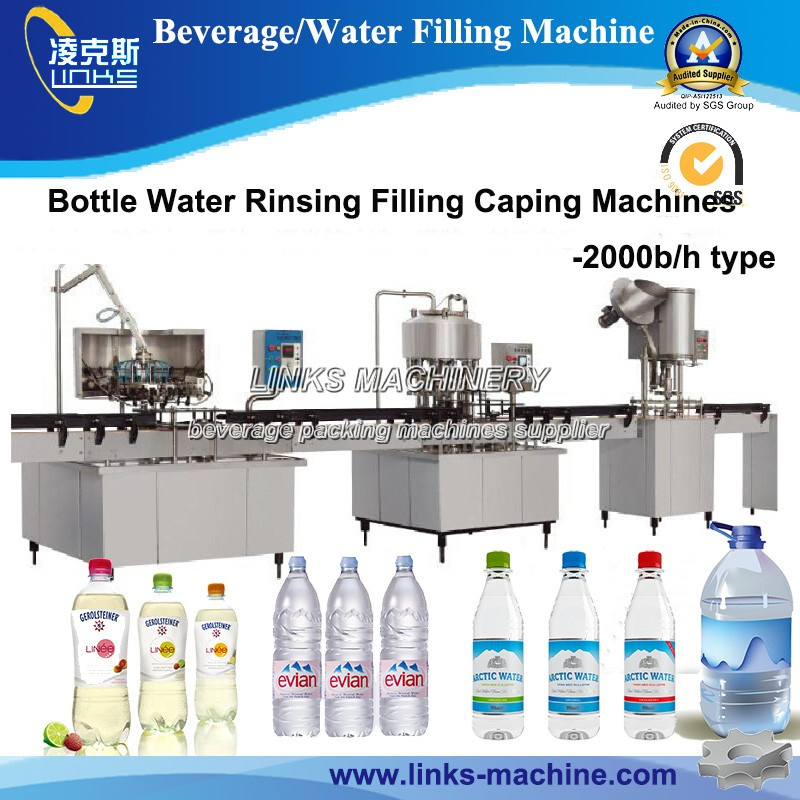

2000bph Water Bottling Filling Capping Machine
Linear Type Water Bottling Filling Machine
This Water Filling Line, Including 4 Parts:
   1/ Water Bottle Rinsing Machine.
   2/ Water Bottling Filling Machine
   3/ Bottle Capping Machine
   4/ Conveyor System

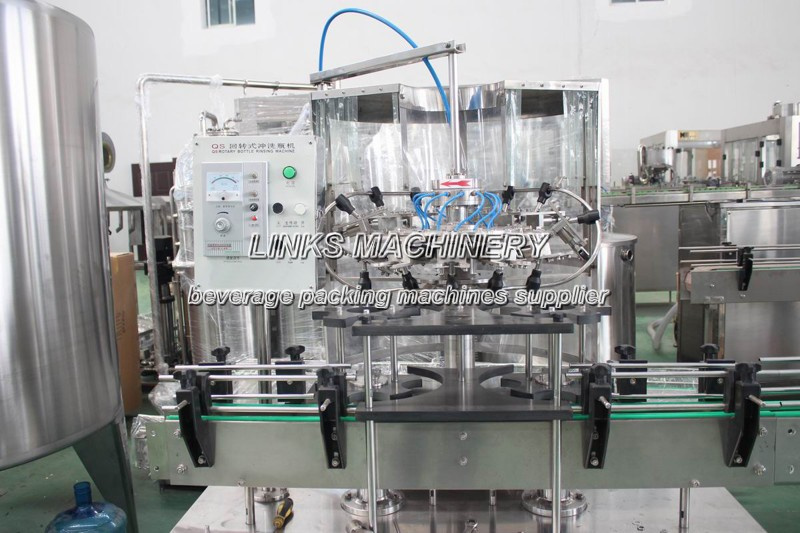

The Rinsing machine is to use pure water to washing the empty bottle.

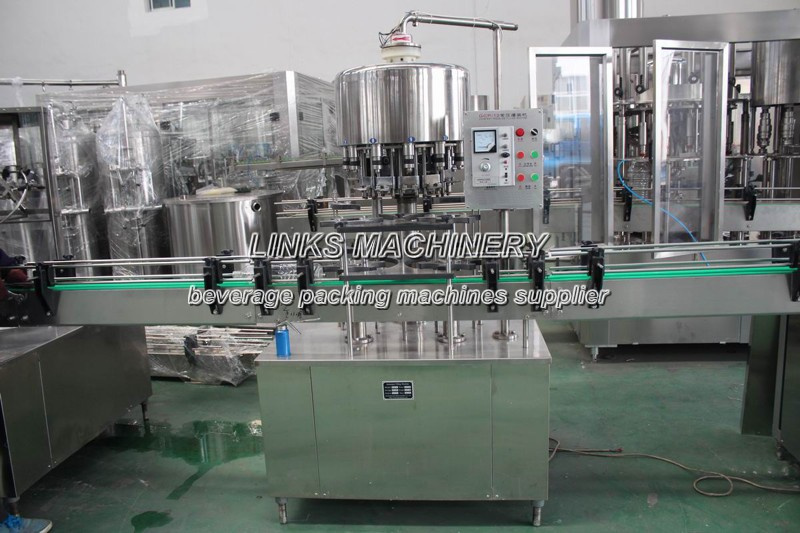

The Bottling machine is to fill the pure water into the bottle on a right level.

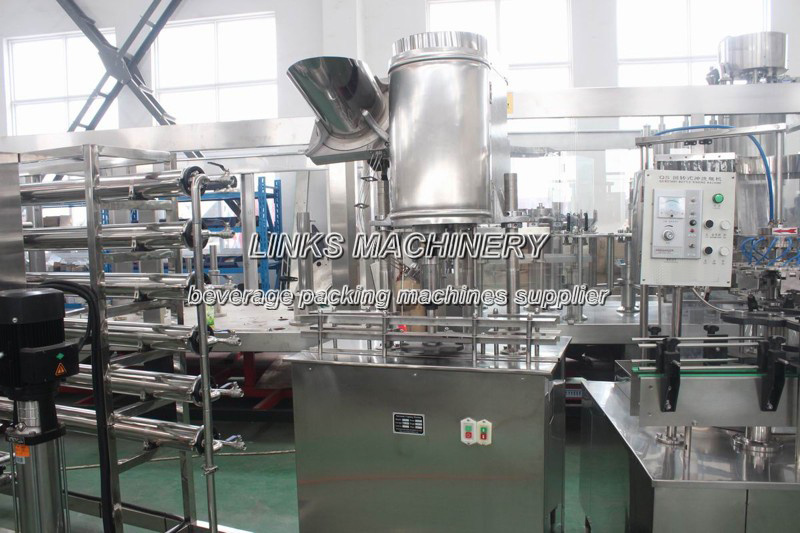

The Bottle capping machine is to screw/press/seal the cap. (common water bottle is screw plastic cap)
Include the 6 meters flat conveyor to connect each machine.

This machine also can be suitable for non-carbonated liquid, like some vodka, wine...ect.

All the parts which touch the liquid choose the stainless steel 304, to avoid polluting the water.

The machines are very easy learning and operation, can fill bottles from 100ml to 2500ml by changing the exchange parts on the machine.

Has speed control system, can adjust the filling line speed simply.

Washing Machine 12 heads; Filling Machine 12 heads; Capping Heads 1 head

Item	Description	Unit	Rinsing Machine
1	Power	KW	0.75kw
2	Main material :	/	Stainless steel 304
3	Production capacity	B/hour	1500bottle/hour 500ml bottle
4	Bottle diameter range(adjustable)	/	dia 60-110mm
5	bottle height(adjustable)	mm	140-380mm
6	Motor	/	Siemens brand
7	Controller ways	/	Electromagnetic speed regulating
7	Speed reducer	/	Made-in-china
8	Dimension	mm	1200×1100×2100mm
9	Weight	kgs	1000
Item	Description	Unit	Filling Machine
1	Power	KW	1.1
2	Main material :	/	Stainless steel 304
3	Production capacity	B/hour	1500bottle/hour 500ml
4	Bottle diameter range (adjustable)	/	dia 60-110mm
5	bottle height(adjustable)	mm	140-380mm
6	Filling temperature		5-90
7	Filling pressure		0.2~0.3Mpa
8	Motor	/	Siemens brand
9	Controller ways	/	Electromagnetic speed regulating
10	Speed reducer	/	Made in china ,best brand
11	Dimension	mm	1200×1100×2100mm
12	Weight		1000kg
Item	Description	Unit	Capping Machine
1	Power	KW	0.55
2	Main material :	/	Stainless steel 304
3	Production capacity	B/hour	1500bottle/hour
4	Bottle diameter range (adjustable)	/	dia 60-110mm
5	bottle height (adjustable)	mm	140-380mm
6	Motor	/	Siemens brand
7	Dimension	mm	940×650×2000mm
8	Weight		400kg

Established in 2001, Zhangjiagang Links-Machine., Ltd. Is a specialized manufacturer of water purification treatment, water/beverage bottle blow molding machines, water/beverage filling machines, labeling machines, film wrapping machines. With the support of advanced technique from Germany and Italy, highly experienced engineers and customer-oriented after sales service,

Our main products including:

1.1200-30, 000 bph Mineral water/pure water production lines

2.1200-22, 000 bph Juice/fruit tea hot filling production lines

3.1200-18, 000 bph Carbonated/soda beverage production lines

4.100-1500 bph 5 gallon jar bottle drinking water production lines

5. Glass Bottle Vodka/Wine Filling Line

6. Complete sets of water treatment plants

7. PET bottle blowing machine

8. Bottle Preform/Caps Injection molding machine

Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
