Product Specifications
| Prod Model: |
WF-1/200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Working Pressure: |
45MPa |
| Air Capacity: |
2m3/Min |
| Power: |
37kw |
| Weight: |
1300kg |
| Size: |
1780*1450*1340mm |
Product Description

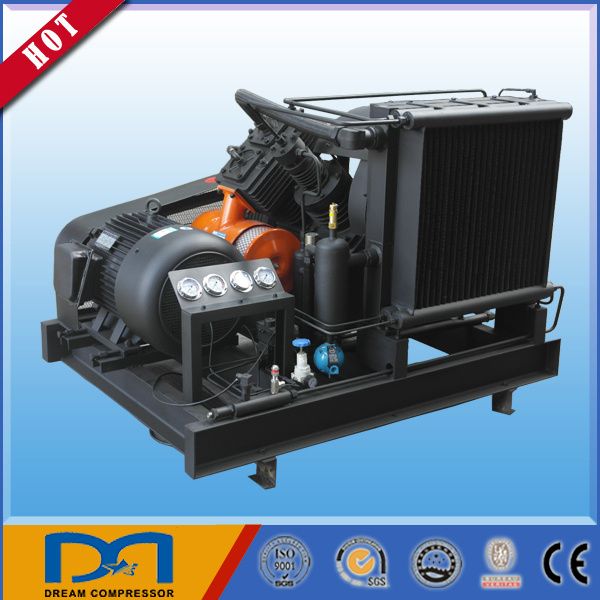

30/40Mpa electric air cooled reciprocating piston High Pressure Air Compressor
Technical data for high pressure air compressor
| Type |
| piston reciprocating |
| Air delivery rate | m3/min | 2 |
| Discharge pressure | Mpa | 45/40/30 |
| Intake temperature | ºC | ≤40 |
| Discharge temperature | ºC | ≤180 |
| Final temperature | ºC | local temp.+5 |
| Crankshaft | RPM | 1000 |
| Piston stroke | mm | 110 |
| Cylinders |
| 5 |
| Power | KW | ≤37 |
Lube oil temperature: ºC ≤70
Lube oil consumption: g/h ≤40
Cooling: air cooled
Air volume: m3/h 7800
Drive: belt or direct drive
Safety valves
1st stage: 0.35 Mpa
2nd stage: 1.1 Mpa
3rd stage 4 Mpa
4th stage 13 Mpa
5th stage 45.5 Mpa
Noise Power: (LWA) ≤108
Weight: Kg 1300
Size: 1780*1450*1340mm
