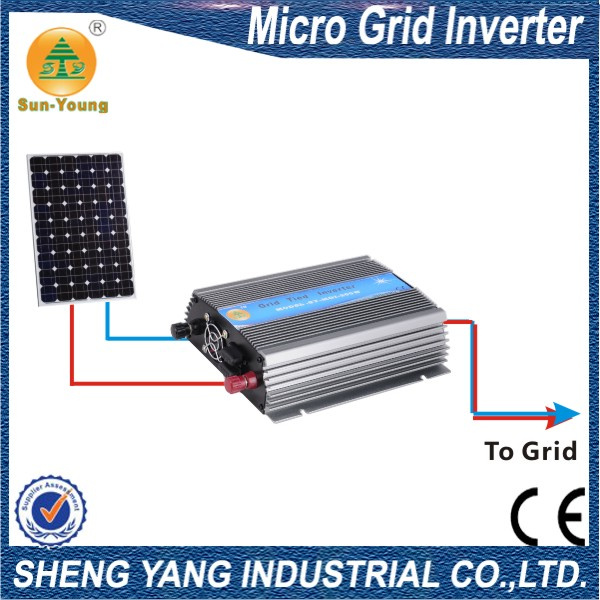

Product Specifications
| Prod Model: |
SY-MGI-200W/220V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Dongguan City China |
| Phase: |
Single |
| Type: |
Solar Inverter |
Product Description
Features
1. High conversion efficiency
2. Wide rande of DC input voltage
3. MPPT
4. Good output current characteristics (PF > 0.98, THDi < 3%)
5. International standard input and output connectors
6. Light weight
Inverter Advantages
1. High power conversion
2. Low power loss
3. Efficient power generation even under poor sunshine
4. Inverter improves grid quality
5. Comprehensive grid and inverter detection
6. Performs well under harsh environments
|
Output Power |
200W |
300W |
400W |
500W |
600W |
800W |
1000W |
|
Recommend use solar panels |
320Wp |
420Wp |
520Wp |
620Wp |
720Wp |
1050Wp |
1250Wp |
|
DC Maximum Input Power |
300W |
400W |
500W |
600W |
700W |
900W |
1200W |
|
DC maximum voltage |
VpvDC30.2VDC |
|
DC voltage range |
Vpv 10.5V~28VDC |
|
|
|
|
Maximum output power factor |
99% |
|
Maximum input current |
15A |
20A |
25A |
30A |
40A |
45A |
65A |
|
AC output power |
200W |
300W |
400W |
500W |
600W |
800W |
1000W |
|
AC maximum output power |
200W |
300W |
400W |
500W |
600W |
1000W |
|
Anti-voltage protection |
Fuse |
|
AC standard voltage range |
90V-140/180~260VAC |
|
AC frequency range |
45Hz53Hz/55Hz~63Hz |
Output current total
harmonic distortion |
THDIAC < 5% |
|
Phase |
< 1% |
|
Islanding protection |
VAC; f AC |
|
Output short circuit protection |
Fuse |
|
Show |
LCD and LED |
|
Standby Power |
< 2W |
|
Night Power |
< 1W |
|
Ambient temperature range |
-25 º C~60º C |
|
Humidity |
0~99%(Indoor Type Design) |
|
Waterproof |
Indoor Type Design |
|
Electromagnetic Compatibility |
EN50081. part1 EN50082. part1 |
|
Power System Disturbance |
EN61000-3-2 EN62109 |
|
Network test |
DIN VDE 1026 |
|
|
|
|
|
|
|
|
|
|
|
Net weight |
7.8KGS(200_ 600W) |
8KGS(800_ 1000W) |
|
GW |
10.6KGS(200_ 600W) |
11KGS(800_ 1000W) |
|
Size (L x W x H) |
21 x 16.5 x5.3cm, 1.3KGS |
31 x 16.5 x5.5cm, 2KGS |
|
Package (L x W x H) |
Inner Box: 31 x 21 x 11.5 CM
Carton: 42 x 31.5 x 35.5 CM |
Inner box: 43x25x15.5CM Carton: 52x45x33CM |
|
Installation |
Wall hanging |
|
AC power cord length |
1.8m |
|
Cooling |
Fan |
|
Show |
1 Red and 1 Green LED |
Shengyang Industrial Co., Ltd is an integrated company located at Changan Twon, Dongguan City which is of hinterland in the pearl river delta with advantage transportation convenient.
Shengyang Industrial is a supplier of mirco-inverters. Shengyang is focused on developing small power inverters. with technicists' unrimitting efforts, within two and three years' short time development, our technicist team have been developped on-grid and off-grid two major types of inverters with power output of up to 1.5KW and be fit for battery generation, PV system, small power wind generation system, and catalogued in several items with scores of different model inverters. Not only our product offerings include solar power inverters and wind power inverters. Shengyang also offers solar power and wind power generation, system design and technical support consulting. It's our team pleasure to be on service of customers with offering high quality inverters which can be fit for different areas and environments base on customers' specification requirements. Shengyang is committed to improving inverter performance and productivity by offering the highest level of technology combined with an exceptional commitment to quality.
Shengyang Industrial is focused on serving the PV projects systems market as at large industrial and mining enterprises, minor enterprises, large on-grid PV power station, small solar power station for demonstration pilot project, factory, hospital, school, family roof solar power, etc. Also Shengyang Industrial partners include solar equipment distributors who understand and embrace the dramatic improvements that Shengyang micro-inverter Systems bring to solar power installations, and have invested their resources to promote this breakthrough solution for solar power conversion.
Thanks for customers' continuous trusts and supports. We will keep service in objectives of credibility, high quality and sincere to do business with customers and earn the trust and supports from new and old customers. Looking forwards to cooperating with more customers to achieve win-win situation!
