Product Specifications
| Prod Model: |
RLDV-5E200C |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Rldv-5e200c |
| Input Voltage: |
180-250 VAC 50/60 Hz |
| Output Current: |
40 a Max |
| Output Voltage: |
5VDC ± 5% |
| IP Rating: |
IP45 |
| Installation: |
Outdoor Rainproof |
| Weight(Kg): |
0.9600 |
| Packing Information: |
20 PCS/ Carton, G.W 20.5kg |
| Cooling: |
Built-in Electric Fan |
| Dimensions(L*W*H): |
205*140*66 Mm |
| Usage: |
Vehicle |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
AC180-250V |
| Brand: |
Neonpro |
Product Description

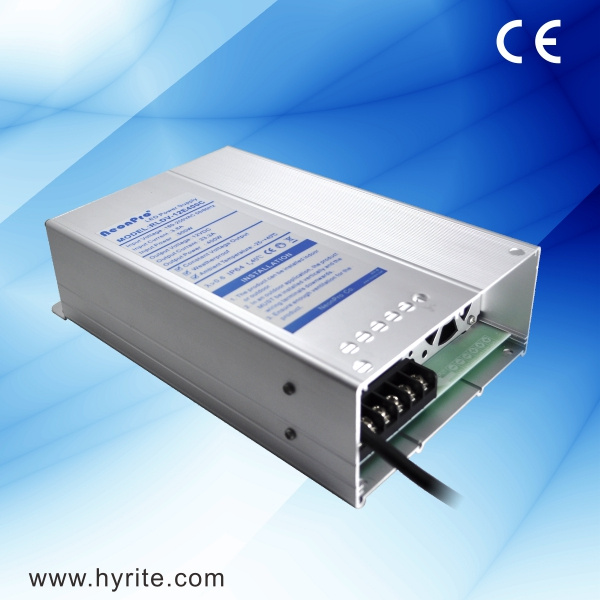

200W 5V Rainproof PWM high quality Switch Power Supply
Features of Switch Power Supply:
- Constant voltage output LED driver.
- Rainproof LED driver.
- Output voltage adjustable.
-100%burn-in test
-Free Air convection cooling with aluminum housing
-With hot star ventilating fan
Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc
Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air
Specifications of Switch Power Supply:
| Model no. | RLDV-5E200C |
|---|
| Input voltage | 180-250 VAC 50/60 Hz |
|---|
| Max. power | 200W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | Low |
|---|
| Efficiency | >83% |
|---|
| Output voltage | 5VDC ± 5% |
|---|
| Output current | 40A max |
|---|
| Operating temperature | -25~40 |
|---|
| Installation | Outdoor rainproof |
|---|
| IP rating | IP45 |
|---|
| Cooling | Built-in electric fan |
|---|
| Connection input/output | Input:18AWG*3(30cm) Output: terminal(six) |
|---|
| Dimensions(L*W*H) | 205*140*66 mm |
|---|
| Weight(kg) | 0.9600 |
|---|
| Packing information | 20 Pcs/ Carton, G.W 20.5KG |
|---|
![]()
![]()
![]()
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
