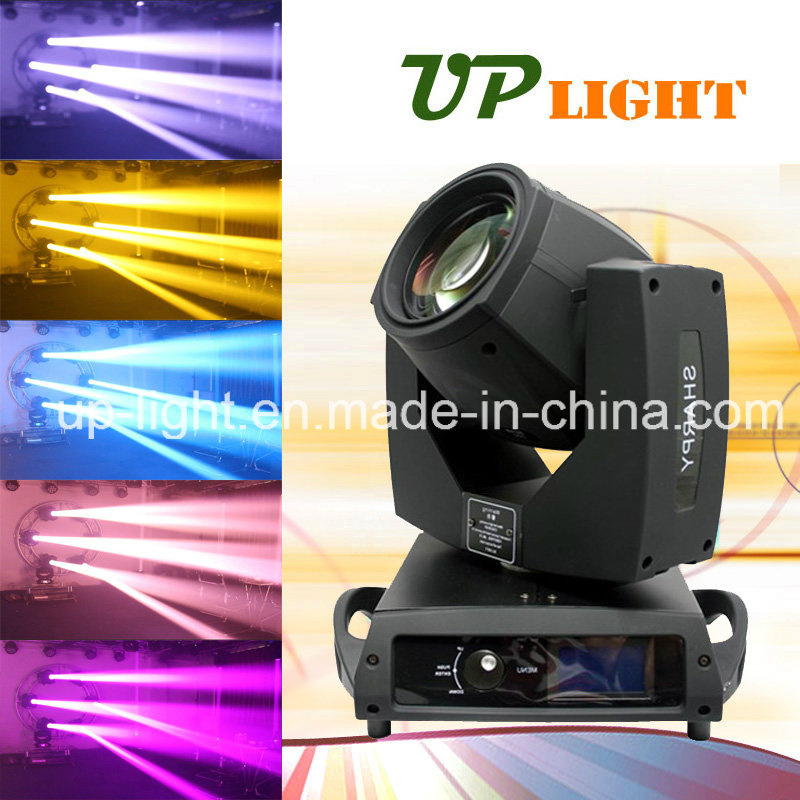

200W Beam Clay Paky 5r for Stage
Product Specifications
| Prod Model: |
UP-B200M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ballast: |
E-Ballast |
| Display: |
LCD Display |
| Prism: |
8-Faced Price with Zoom Function |
| Color: |
14 Colors + Open |
| Gobo: |
17 Fixed Gobos + Open |
| Material: |
Aluminum Alloy |
| Emitting Color: |
Changeable |
| Control Channel: |
18CH |
| Strobe: |
Combined Type Double Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
Philips Msd Platinum 5r Lamp, Philips 5r Lamp |
| Voltage: |
110~220 |
Product Description
200W Beam Clay Paky 5r For StageYoutube Beam Demohttps://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI24 Prism
16 Prism
* PHILIPS MSD Platinum 5R (8, 000K) (189W)
* 3-lenses group
* E-ballast
* Blue LCD display
* 1 color wheel with 14 dichroic color filters
* 1 fixed gobo wheel with 17 interchangeable gobos + white
* Beam Angle 0° ~4° Linearly adjustable
* DMX 0-100% linearly adjustable zoom
* Double shutter blades, 0.3~20 F. P. S
* 1 X 8-facet prism with zoom function
* Channels: 18
* Pan 540º , Tilt 270º With auto position correction, speed adjustable, with lock mechanism.
* IP20
* Weight: 19.5Kg
Standard Accessories: G clamps, 2 PCS; Signal cable, 1 PC; Holder, 1 PC
Technical Data:
Power Supply: 100~240V AC, 50/60Hz
Power Consumption: 350W
Light Source: PHILIPS MSD Platinum 5R (8, 000K, 2, 000hrs)
Lamp protected system: 1. Cooling system---2PCS fans(imported from Japan) and 1PC blast blower
2. Lamp-protected system: When fans' speed less than 1000R/S, the lamp-protected borad will make the lamp auto off-power
Optical System
3-lens group, high efficiency reflector, zoom 3.8 degree.
Colors:
1 Color Wheel
14 dichroic colour filters plus white. Variable speed and bi-directional rainbow effect. Linear colour changing is available.
GOBOS:
1 Fixed gobo wheel: 17 interchangeable gobos+ white. Shaking and bidirectional whee l scrolling at variable speeds. Gobo changing is available.
Prism/Frost:
8-facet rotating Prism(bi-directional with variable speeds) + Frost Filter
HEAD MOVEMENT:
Pan 540 degree, Tilt 270 degree with auto position correction
BEAM ANGLE
0 degree~4 degree, Linear zoom
CONTROL:
DMX512, 3 pin interfaces. 18 channels. Self-test mode
HOUSING:
Composite plastic, IP20
WEIGHT: 19.5Kg
Package:
1. Carton with protected foam inside
2. Double flightcase.Production
| Channel | Function |
| 16 | 20 |
| CH1 | CH1 | Color wheel |
| CH2 | CH2 | Strobe |
| CH3 | CH3 | Dimmer |
| CH4 | CH4 | Gobo wheel |
| CH5 | CH5 | Prism |
| CH6 | CH6 | Prism rotation |
| CH7 | CH7 | Retain |
| CH8 | CH8 | Frost |
| CH9 | CH9 | Focus |
| CH10 | CH10 | Pan fine |
| CH11 | CH11 | Tilt |
| CH12 | CH12 | Tilt fine |
| CH13 | CH13 | Retain |
| CH14 | CH14 | Reset |
| CH15 | CH15 | Lamp on/off |
| CH16 | CH16 | Pan/tilt speed |
| CH17 | Color wheel speed |
| CH18 | Reset |
| CH19 | Dimmer/prism/frost speed |
| CH20 | Gobo wheel speed |
