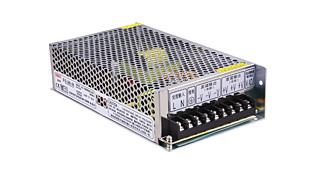

200W Single Way Output Switching Power Supply (B S-200-24)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Western Union |
1) High Efficiency, High Reliability, Low Cost
2) AC Input Range: AC85~132VAC/170~264V Selected by switch
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) 2 Year Warranty.
Specification:
Single output: 200W
Input Voltage range: AC85~132VAC/170~264V Selected by switch
Size: 199× 110× 50mm
Remark: Size and structure can be adjusted according to client's request.
Specification |
Model No. |
B S-200-5 |
B S-200-12 |
B S-200-24 |
B S-200-48 |
DC output |
5V 40A |
12V 16.5 A |
24V 8.3A |
48V 4.2A |
Wave and noise |
100mVP-P |
75mVP-P |
75mVP-P |
75mVP-P |
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Load stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
Efficiency |
79% |
82% |
83% |
86% |
Adiustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
AC input voltage range |
85~132VAC/170~264VAC Selected by switch 47~63Hz, 240~370VDC |
AC Inrush current |
Cold-start current 15A/115V 30A/230V |
OverLoad protection |
105%~201% hiccup mode.auto-recovery |
Over-voltage protection |
|
Setup,rise,hold up time |
200ms, 50ms,20ms |
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv AC 1minute |
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
Working temperature |
-10ºC~+50ºC |
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
EMC standards |
Design refer to GB9254,EN55022 class B |
Weight / size |
0.9kg / 199×110×50mm |
Prod Model: |
B S-200-24 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Type: |
Single |
Voltage Regulating Mode: |
Width Modulation Type |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Self-excited Switching Power Supply |
Warranty: |
2 Years |
Power Supplying System: |
Level 1 Power Distribution Equipment |
Output Power: |
200W |
Input Voltage: |
AC85~132VAC/170~264V Selected by Switch |
Certification: |
CE,RoHS,CCC,ISO9000 |
