Product Specifications
| Prod Model: |
machine tool |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Controller: |
Siemens/Mitsubishi/Fanuc Optional |
| Driving Motor: |
Servo Motor |
| Coolant System: |
Yes |
| Guard Mode: |
Semi-Guarded /Full-Guarded |
| Lubrication System: |
Yes |
| Machine Bed Material: |
Cast Iron |
| Machine Tool 1: |
Machine Tool |
| Tool Change Mode: |
Pneumatic Tool Change/Automatic/Armless/Arm-Type |
| Condition: |
New |
| Machine Tool 2: |
Machine Tool |
| Controlling Mode: |
CNC |
| Precision: |
High Precision |
| Type: |
Middle and Small Machine Tool |
| Automatic Grade: |
Automatic |

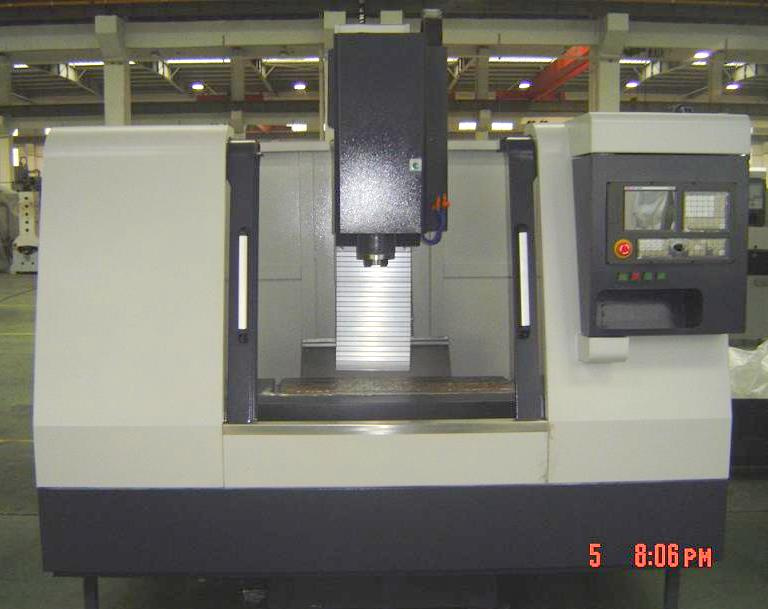

Product Description
For metal cutting.
Working table size: 700x400mm
X/Y/Z axis travel: 400x260x260mm
Spindle motor: Variable-frequency motor 1.5kw
Ballscrew
Working accuracy: 0.02mm
Machine size: 1300x1500x1850
Net weight: 1600kg
|
Model NO. |
CNC/ZX25S |
|
Working table(L*W) (mm) |
700×260 |
|
Max load on table(kg) |
100 |
|
T-slot(slot numbers *slot width *slot pitch) (mm) |
3*14*63 |
|
X,Y,Z axis travel (mm) |
400×260×260 |
|
Spindle end to worktable (mm) |
120-380 |
|
Spindle centerline to column (mm) |
260 |
|
Spindle Taper |
MT4 |
|
Spindle Speed (rpm) |
150-3000/300-6000 |
|
Spindle motor power (kw) |
1.5kw variable-frequency motor |
|
Max spindle torque (N.m) |
10/20 |
|
Ball screw types |
φ25xP10 ball screw |
|
mini display unit (mm) |
0.01/0.001 |
|
axis rapid feeding speed (m/min) |
6 |
|
axis repeatability positioning accuracy (mm) |
0.01 |
|
axis pulse equivalent/pace(mm) |
0.01 |
|
Max drilling diameter (mm) |
Φ20 |
|
max diameter for milling cutter (mm) |
Φ20 |
|
Max boring diameter (mm) |
Φ100 |
|
max feeding forces (N.m) |
5000 |
|
overall dimension (mm) |
1300*1500*1850 |
|
Packing (l*W*H) (mm) |
1750*1750*1950 |
|
net weight (kg) |
1600 |
Hangzhou Datian CNC Machine Tool Co., Ltd is a national high-tech enterprise, national Torth Program committed enterprise, and national innovation fund supported enterprise. Our company team has decades of experience in design, development, manufacturing and exact use of combination machine tool, CNC machining centers and CNC machines, we absorb and bring in high-tech home and abroad with strong ability to conduct innovation and combination.
We cooperate with YAMAHA and develop multi-functional complex CNC machine tools for pianos project; With Bosch electric power, one of the world's top 500 enterprises to develop multi-function complex machine for flat milling, slotting, rolling letting, which all are international initiative innovative technologies; With Beijing CNC Machine Tool Co., Ltd to develop a key high-grade ceramic CNC cutting equipments and with Hang zhou Combination Machine Tool Research Institute to develop CNC machine tool with optional function and activity module features, which are domestically pioneered innovative technology.
Six main innovation products categories of company: High-performance vertical/horizontal gantry machining centers; CNC/TX series combination boring & milling machines; New series of multi-functional machines; Multi-axis and multi-cutter series CNC machines; Flexible series combination machines; And high-grade ceramic NC cutting machines.
We supply multi-functional complex machine tool to world's top 500 enterprises and international well-known companies; Provide domestic listed companies and other user with high-performance vertical/horizontal gantry machining center; Provide the majority of SMEs with TX series CNC combination boring and milling machines; And we also introduce international popular and efficient production mode to customers with needs for mass production: The combination production line of MC series of machining centers and special-purpose machines; Flexible combination of machine tool production lines for mass production of multi-species; NC equipment for clients in traditional industries.
With Da tian machine, we are able to create infinite fortune for clients.
