Product Specifications
| Prod Model: |
KI-WG16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Color: |
White |
| Display: |
LCD |
| Zone: |
99 Wireless Zone, and 4 Wired Zones |
| GSM Transmit Power: |
2W |
| Working Power: |
AC=100~230V, DC=12V 1A |
| 2-Band GSM: |
GSM900/1800MHz |
| Application: |
Indoor |
| Working Mode: |
Passive |
| Signal Transmission: |
Wireless Alarm |
| Type: |
Home Alarm |
| Usage: |
Door |
| Sensor Type: |
GSM Alarm System |
Product Description
Item name:
2012 Newest LCD GSM touch screen wireless alarm system KI-WG16
Description:
1. Touch keypad; LCD displays Date, Day of the week, Time, and current Armed Status
2. Supported Languages: Simplified Chinese\ Traditional Chinese\ English\ German\ French\ and more to meet different market needs...
3. GSM 2/4 Band Net trasmission, phone audible alarming and SMS alarming
4.29 wireless zones (Each zone supports up to 4 sensors) and 2 dedicated zones for remotes (Supports up to 4 remotes or wireless keypads per zone). Sipports 8 more wired zones(Optional).
5. Can preset up to 5 phone numbers and dial in sequence.
6. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed.
7. Record up to a 10 second greeting for the auto-dialer, Then play the greeting back.
Arm\ Disarm the system by 5 ways: SMS, Main Host(Keypad), Wireless Keypad, Keychain Remotes, or even remotely by phones. (PSTN alarm don't support SMS)
8. Available in AC\DC with Low-voltage Indicators
9. Learning sensors to alarm host, very easy operation.
10. Non-volatile chip, information stored automatically when off power.
11. Check door\window status automatically (This is when the system is disarmed only, if a door is opened, it will sound fast "bi bi bi")
12. Support wireless "ding-dong" doorbell function (Optional)
13. Support CID uploading to CMS(Center monitoring Station), can user our GSM CID connector to have this function.
14. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
15. Built-in Li-ion backup battery, it will alert when low power or without external power supply.
17. Store up to 100 alarm records and 100 arm\disarm records
Specifications:
Working power: AC=100~230V, DC=12V 1A
Static current: <50mA (when not charging) Alarm current: <500mA
Built-in Li-ion backup battery: 3.7V 1200mAh(rechargeable),
Standby: Around 16 hours, Full charging time: 12 hours
2-Band GSM: GSM900/1800MHz(4-Band is optional: 850/900/1800/1900MHz)
GSM transmit power: 2W
Receiving and emitting frequency: 433MHz
Working condition: Temperature: -10 ~ 50 Humidity: <80%
Product dimension: 150× 107× 26(mm)

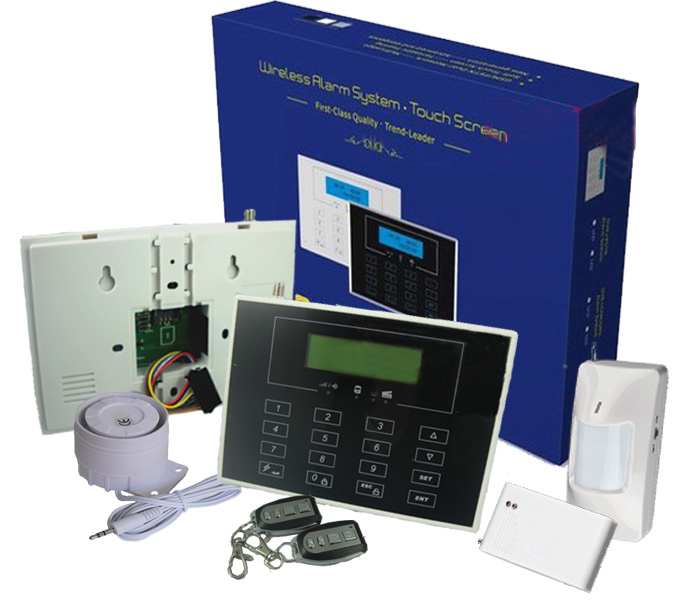

Product components:
This product is composed of alarm host, basic accessories and optional accessories.
Alarm Host
Basic Accessories
Wireless Optional Accessories
GSM LCD Alarm Host
Remote, wireless intelligent door sensor(or wireless door sensor) wireless wide-angle PIR sensor, , wired indoor siren
Gas alarm, smoke alarm, wireless outdoor siren, doorbell button
