Product Specifications
| Prod Model: |
MFP-68KM4-Q1EE1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220V/1/50Hz |
| Remark: |
Fan Inside,4 Tubes |
| Net Dimensions (W X H X D): |
700*700*300 |
| Deliver Date: |
25days |
| Usage: |
for Refrigerate |
| Cooling Method: |
Indirect Cooling |
| Cooling Capacity: |
1350W |
| Heating Capacity: |
1080W |
| Power: |
37W |
| From: |
Shanghai China (Mainland) |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
RoHS |
| Type: |
Central Air Conditioners |
| China Energy Efficiency Standard: |
Level 1 |
| Capacity: |
12000-15000 BTU |
| Power Source: |
Electrical |
Product Description
Feature:
Δ Panels and frame are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself, either to wall (vertical version) or ceiling (horizontal version).
Δ The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.
Δ The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.
Δ The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum or plastic frame.
Δ The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents. The "L" type tray makes the units suitable for both vertical and horizontal installation.
Δ All electric wires are connected to enclosed electrical terminal block, situated on the opposite side to the water connections.
Δ The decorative cabinet has a modern design that blends in with any environment. It's made from galvanized steel treated with polyester powder coating to ensure total resistance to rust, corrosion, chemical agents, aliphatic solvents and alcohols.
Δ The discharge grille and supporting legs are made of ABS materials.
Δ ON-BOARD THERMOSTART
Δ Mechanical type for two pipe system exposed version use, working mode selection (OFF-Heating-Cooling), ventilation (HIGH-MED-LOW) and room temperature setting.
Δ Optional:
1. Condensation tray (water connection area)
2. Different type thermostats with more advanced functions
3. High external static pressure 30PA and 50PA
|
Technical Specifications |

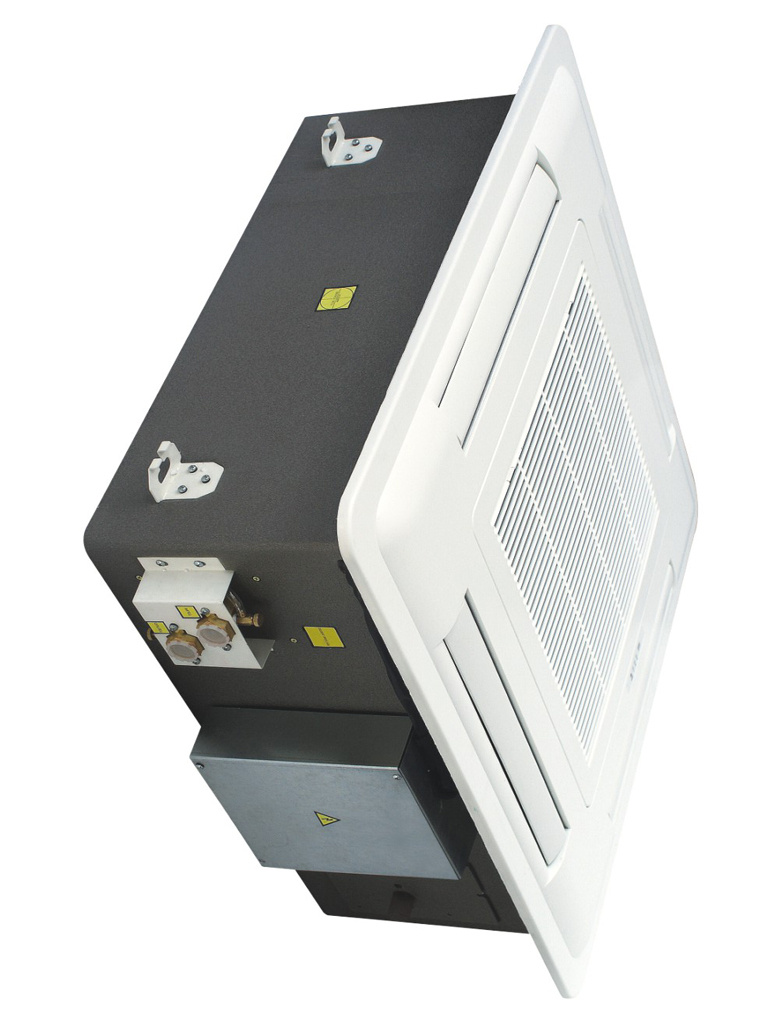

4-pipe cassette type fan coil(4-way) |
|
Type |
4-pipe cassette type fan coil(4-way) |
|
Model No. |
MFP-34KM4-Q1EE1 |
MFP-51KM4-Q1EE1 |
MFP-68KM4-Q1EE1 |
MFP-85KM4-Q1EE2 |
MFP-102KM4-Q1EE2 |
MFP-136KM4-Q1EE3 |
MFP-170KM4-Q1EE3 |
MFP-204KM4-Q1EE3 |
|
Cooling capacity |
W |
1350 |
2030 |
2700 |
3380 |
4050 |
5400 |
6750 |
8100 |
|
Heating capacity |
W |
1080 |
1620 |
2160 |
2700 |
3240 |
4320 |
5400 |
6480 |
|
air volume |
m3/h |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
|
Electrical Data |
|
|
|
|
|
|
|
|
|
Power supply |
220V/1/50Hz |
220V/1/50Hz |
220V/1/50Hz |
220V/1/50Hz |
220V/1/50Hz |
220V/1/50Hz |
220V/1/50Hz |
220V/1/50Hz |
|
Power input |
W |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
|
Remark |
|
|
|
|
|
|
|
|
|
Remark |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
water pump inside, 4 tubes |
|
Others |
|
|
|
|
|
|
|
|
|
Net dimensions (W x H x D) |
panel |
mm |
650*650*45 |
650*650*45 |
650*650*45 |
850*850*45 |
850*850*45 |
950*950*45 |
950*950*45 |
950*950*45 |
|
unit |
590*590*270 |
590*590*270 |
590*590*270 |
752*752*293 |
752*752*293 |
822*822*243 |
822*822*243 |
822*822*243 |
|
Packing dimensions (W x H x D) |
panel |
mm |
745*745*100 |
745*745*100 |
745*745*100 |
910*910*100 |
910*910*100 |
1005*1005*100 |
1005*1005*100 |
1005*1005*100 |
|
unit |
700*700*300 |
700*700*300 |
700*700*300 |
805*805*330 |
805*805*330 |
875*875*305 |
875*875*305 |
875*875*305 |
|
Net weight |
panel |
kg |
2.2 |
2.2 |
2.2 |
4.5 |
4.5 |
6 |
6 |
6 |
|
unit |
20 |
20 |
21 |
24 |
24 |
26 |
29 |
29 |
|
Gross weight |
panel |
kg |
4 |
4 |
4 |
6.5 |
6.5 |
9 |
9 |
9 |
|
unit |
22 |
22 |
23 |
27 |
27 |
29 |
32 |
32 |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
