Product Specifications
| Prod Model: |
ATC-UTOW-A16P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Status: |
Stock |
| Certification: |
CE |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Size: |
44*24*22cm |
| Color: |
Black |
| Warranty: |
1year |
| Type: |
External |
| Interface Type: |
USB |
| Transmission Rate: |
128Kbps |
| Application: |
Company |
Product Description

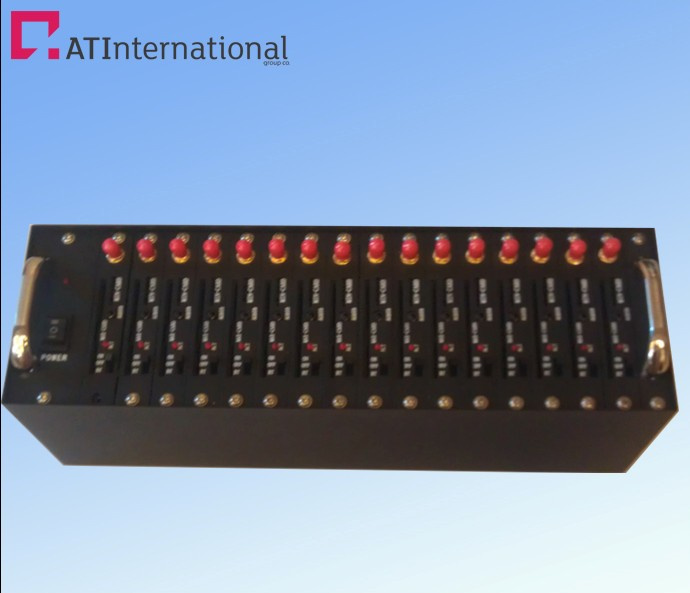

2013 low price! 16 port GSM GPRS modem pool Q24plus, Q2406, Q2438, Q23, Q24, MC55, MC35I with free SMS software
1. Support AT command
2.1 year Warranty
3. Factory low price
4. GSM modem
5. Sending bulk SMS with SMS software
The device built-in16 wireless modules be inserted 16 SIM cards use 16 cards
To send text messages, send speed as 16 times as a single channel modem.
It uses the development of WAVECOM module, 220V power supply be a long
Time stability, generous luxury housing.
Modules
It can be customized, mainly based on wavecom& cinterion module
Q24plus, Q2406, Q2438, Q23, Q24, P5186
MC388, MC55, MC56, MC45, MC35, MC39, TC35, TC35I and more
GPRS dual-band (900/1, 800MHz): Q2406A, Q2406B
GPRS dual-band (850/900/1, 800/1, 900MHz): Q24 plus
CDMA dual-band (800/1, 900MHz): Q2438J
Dual-band (850/900/1, 800/1, 900MHz): GR64, P5186
That modules can support Open AT, TCP/IP protocol.
Key Features
Just like 16 single-channel equipments work at the same time
Insert 8 SIM cards(big or small)
Connection with the computer through a data line be integrated with Serial 16
Each channel with separate power switch
Each individual module be demolished
Industrial chassis, elegant shell
GSM frequency: 900/1800 MHz
Wireless access to internet
Comply with GSM phase2 standard
Dual-band/Quad-band(optional) RS-232/USB interface(optional)
Basic Features
Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
Optional data, voice function
Send and receive SMS in bulk
Dial Plan
Automatic baud rate: From 2400 to 19200 bits / s
Enhanced Features
GPRS compatible
WAP compatible
SMA Antenna Interface
SIM Card Outlet
Power connector
AT command control ( GSM 07.07 and 07.05)
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support
Application
Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business model)
Government agencies or large township
Large company
Large Supermarket
SMS service company
5 -24 VDC power supply
Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
Meet the ETSI GSM 2 + standards
Physical and Environmental
Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -25 ° C - + 70 ° C
Warranty: One year
Package:
Packaging(Standard carton):
Color: Black
Product Weight: 5kg
Product Size: L44*W24*H22(cm)
Accessories: AC/DC adapter, RS-232(PCI card)/USB cable, Antennas and driver
