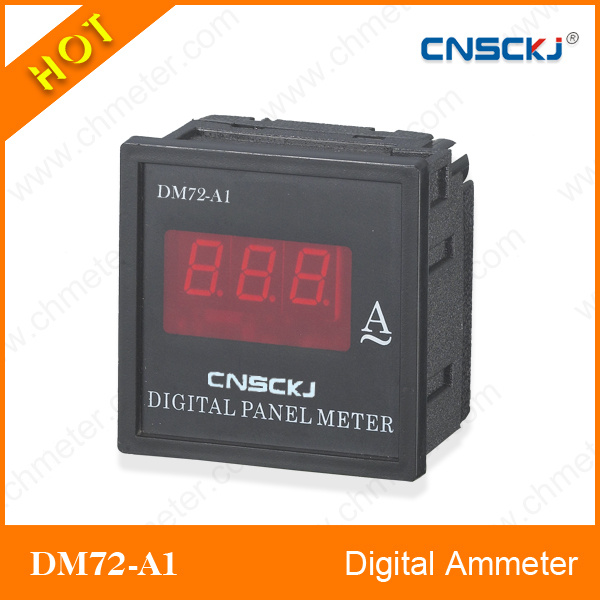

Product Specifications
| Prod Model: |
DM72-AI |
| AC Voltmeter: |
AC 10 ~ 600V,External PT Is Necessary If More Than |
| Type: |
Single Phase |
| Display: |
Digital |
| Application: |
Electronic Equipment |
| Installation: |
Portable Precise |
| Theory: |
Electronic Meter |
| Kind: |
Rotating Coil |
| Power Source: |
AC Meter |
Product Description
Function:
Real-time measurement and indication on AC or DC voltage(current) in an electric circuit; Program mable CT/PT ratio; Higher and lower limit alarm output and programmable rely time of alarm.
Basic parameters:
Measuring range:
AC Ammeter AC 0.05 ~ 6A, external CT is necessary if more than 6A
DC Ammeter DC 0.05 ~ 6A, external electrical shunt is necessary if more than 6A
Accuracy: ± (0.5%FS+1 digit)
Measuring display mode: 4 LED nixietube effective value display
Resolution: Last figure one digit
Overflow indication: The top digit display "1" or "-1" and other digit hiding
Auxiliary power supply: AC 220V± 10%
Alarm contact capacity: AC250V/1A
Alarm Shift Difference: 0.1%FS~50.0%FS
Alarm delay time: 0.0~99.9s programmable
Terminal arrangement and wiring connection:
( Attention: If it is not the same with the wiring schema of the diagram behind case, please accord to the one of diagram behind case)
POWER: Auxiliary power input port of instrument, Auxiliary power supply is AC 220V± 10% (please note if you need special power supply).
INPUT: Signal input port of instrument, HI represents"+" port of DC input signal, fire wire terminal of AC voltage input signal and inlet wire terminal
Of AC current input signal.
LO: "-" port of DC input signal, the other one wire of AC voltage input signal; The outlet wire terminal of AC current signal input
OUT: The alarm contact output port of meter
|
Technical parameters |
Value |
|
input |
Normal value |
Voltage :300V\500V,Current :1A\5A,(Or ordered by customer) |
|
Overload |
Current:continual 1.2times,instaneous10times/1s;
Voltage:continual1.2times,instantaneous 2times/1s. |
|
Frequency |
45~65Hz |
|
Accuracy class |
0.5 |
|
Display |
LED display,range in:-1999~1999 |
Power
supply |
Voltage range |
AC 220V |
|
Power consumption |
<5VA |
|
Insulation resistance |
≥100MΩ |
|
Isolation voltage |
Between power supply/input/output 2kV/1min(rms) |
|
MTBF |
≥50000h |
|
Environment |
Temperature |
Work:-10~55 ,Storage:-25~+70 |
|
Humidity |
≤93%RH,In the place without dew and corrosive gas |
|
Altitude |
≤2000m
|
