Wuxi City Yalian Honeycomb Machinery Plant >> 2014 High Quality Door Stuffing Laminated Paper Honeycomb Core Machine

2014 High Quality Door Stuffing Laminated Paper Honeycomb Core Machine

Name: 2014 High Quality Door Stuffing Laminated Paper Honeycomb Core Machine
Brand: China-Manufacturer-Directory.com
SKU: 736586565
Availability: InStock
Rating: 4.9 (34 reviews)

Supplier:	Wuxi City Yalian Honeycomb Machinery Plant
Price:	US $ 100000-250000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HM 2200-1600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Cutting Speed:	500cuts/Min
Max Cell Size In Line:	4 Cell Size
Max Width:	2200mm--1800mm
Power:	150kw

Product Description

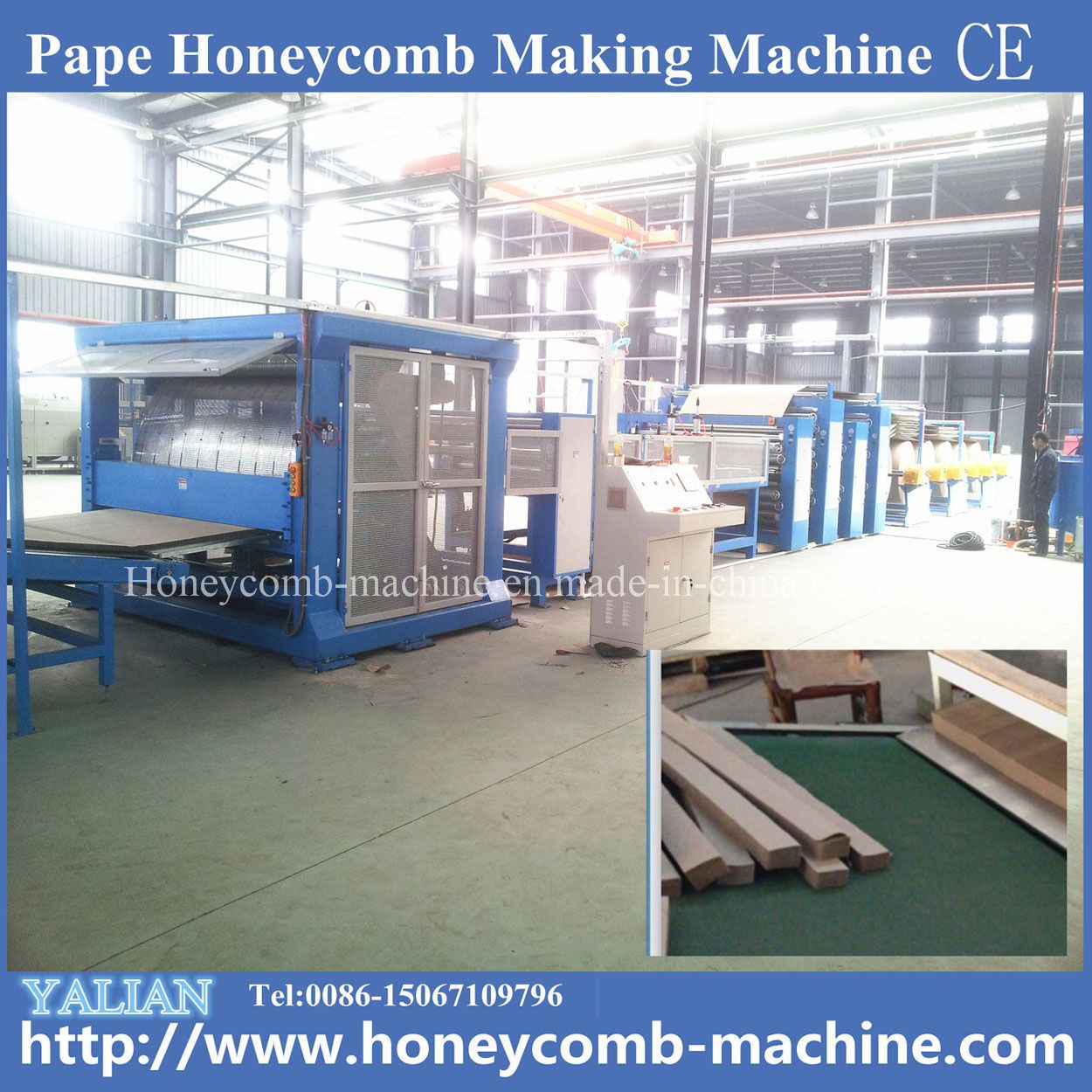

High quality door stuffing laminated paper honeycomb core making machine from China

Door stuffing paper honeycomb core making machine:
Full automatically honeycomb core paper making machine which can stop glue accroding to door layers.

Production Process:
If you want to porduce only ENDLESS HONEYCOMB CORE:
Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing
--Core Cutting--Stacking

Selling poits:
A:Yalian honeycomb machine adopts full Hydraulic shaftless paper holder, it is more convenient to operate; and it uses automotive-type disc brake structure which can stable control the tension. The overall uses of casting structure, the mechanical properties more stable.
B:It has high speed horizontal cutting machine, which don't touch the gluing line while cutting, and the core paper feeding into cutter are stable. We use imported cutter which is durable and imported high-precision rails which has high cutting precise.
C:The Synchronization cutting mechanism adopts servo tracing which has high cutting accuracy; it adopts Taiwan ball screw which makes the walking freely; By using imported high-precision rails, it can move flexible and cutting with high-precision.

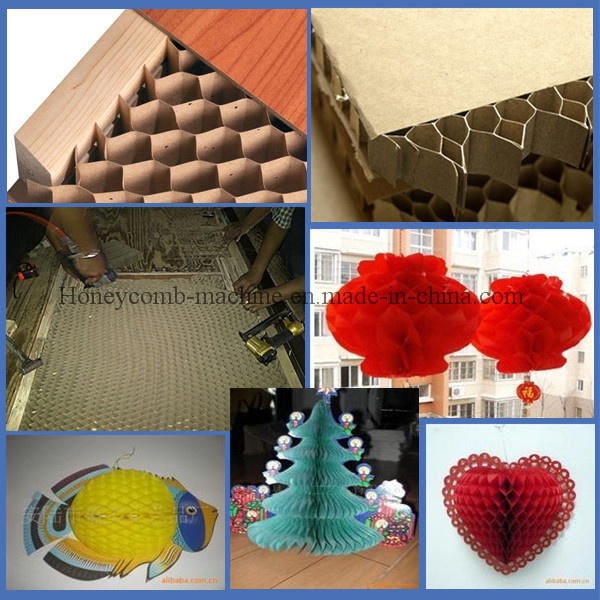

Honeycomb Application:

Customer's Visiting:

Yalian In Fair:

Item No.	HC-1600	HC-1800	HC-2000	HC-2200
Max Width	1600mm	1800mm	2000mm	2200mm
Paper Rolls Qty.	2-6pcs	2-6pcs	2-6pcs	2-6pcs
Honeycomb Cell Size	4mm-25mm	4mm-25mm	4mm-25mm	4mm-25mm
Honeycomb Paper Thickness	6mm-100mm	6mm-100mm	6mm-100mm	6mm-100mm
Cell Size in line	2-4groups cell size ( 2 groups for free)	2-4groups cell size ( 2 groups for free)	2-4groups cell size ( 2 groups for free)	2-4groups cell size ( 2 groups for free)
Paper Holder Type	Axeless Mechanical or Hydraulic Type	Axeless Mechanical or Hydraulic Type	Axeless Mechanical or Hydraulic Type	Axeless Mechanical or Hydraulic Type
Cutting Speed	200-500cuts/min	200-500cuts/min	200-500cuts/min	200-500cuts/min
Cutting Accuracy	±0.08 mm	±0.08 mm	±0.08 mm	±0.08 mm
With Hole Making Device	yes	yes	yes	yes
Operation Workers	1-2person	1-2person	1-2person	1-2person
Wastage Percentage	0-2%	0-2%	0-2%	0-2%
Glue	Starch Glue or White Emulsion	Starch Glue or White Emulsion	Starch Glue or White Emulsion	Starch Glue or White Emulsion
Production Capacity	4-8tons/shift	4.3-8.6tons/shift	4.6-9.3tons/shift	5-10tons/shift
Safety working time	Two shifts /day	Two shifts/day	Two shifts/day	Two shift/day
Suitable Core Paper	100-200gsm	100-200gsm	100-200gsm	100-200gsm
Suitable Surface Paper	Over 200gsm	Over 200gsm	Over 200gsm	Over 200gsm
Machine Weight	23tons	24tons	25tons	26tons
Dimension	2700040003200mm	2700040003200mm	2700040003200mm	2700040003200mm

Wuxi Yalian Honeycomb Machinery Factory is a and trading enterprise combining with design and making. Companies specializing in the design and manufacture of paper honeycomb production line, after years of factory all scientific researcher's technical research and innovation, introduced and absorbed international advanced technology, we have designed and manufactured various types of paper honeycomb production line, cardboard production line, angle cardboard processing equipment etc...Technical level & manufacturing quality have reached the domestic leading level, equipment sales in more than 20 provinces and cities nationwide and also exported to Asia, Europe, South America and many countries and areas.

Factory adhere to the "customers first" principle to provide after sell service for customers, such as: Installation and commissioning, operator training, all in one service, We will fully meet the needs of customers, sincerely accompany you on your road to succeed.
