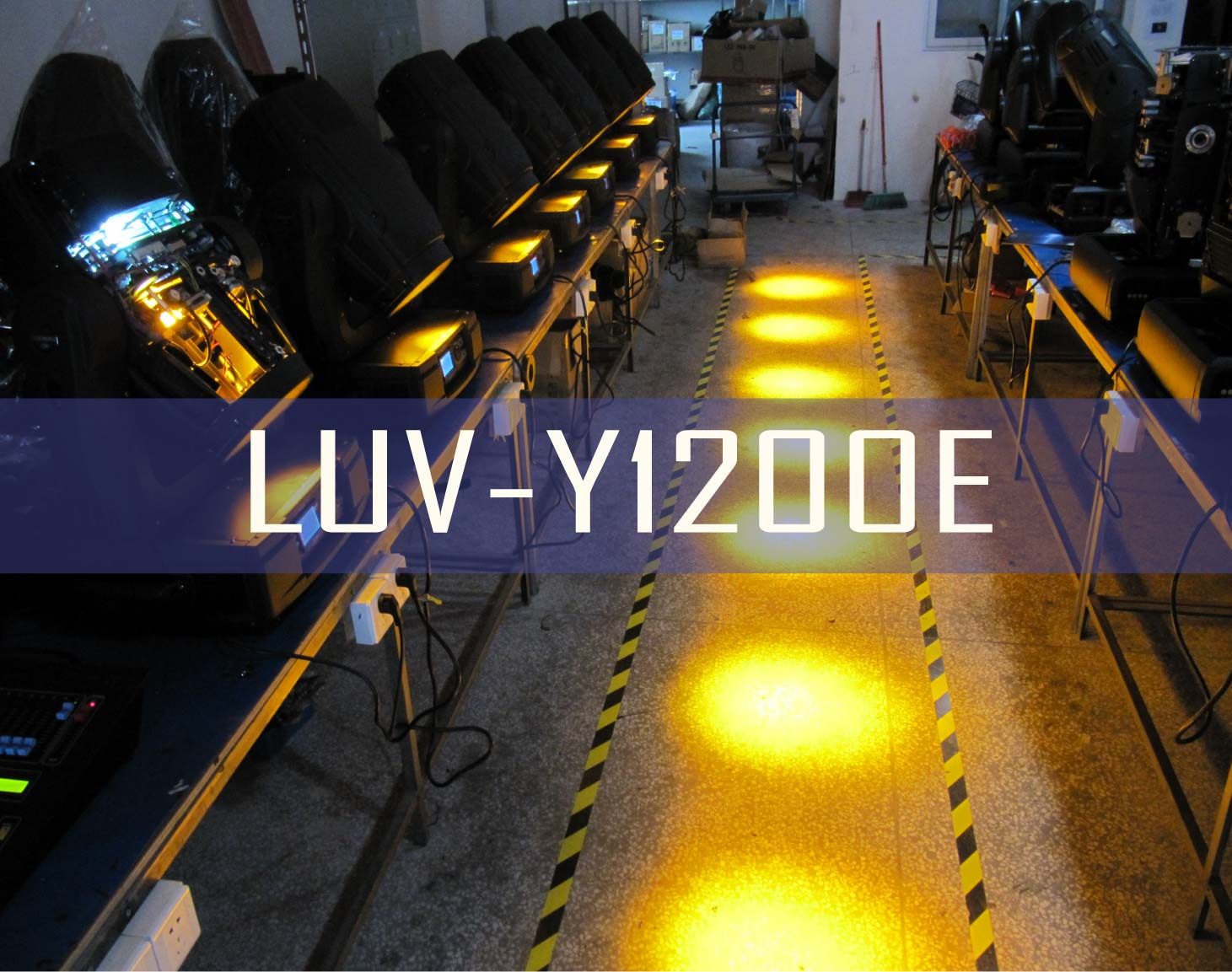

LUV-Y1200E 2014 high quality stage moving head light
Lamp: 1200W short arc discharge
Base: G-22
Approved model: Philips MSR 1200 SA
JENBO MSK1200S
Electrical Specification
Wiring options: 208/230/250V, 50Hz; 208/230V, 60Hz
Power consumption: 1500W at 220V/50Hz
Mechanical Specification
Height: 880 mm (head in horizontal position)
Width: 550 mm
Depth: 640 mm
Net weight: 47kg
Gross weight: 77 kg (with flycase)
Thermal
Maximum ambient temperature: 40° C (104° F)
Maximum surface temperature: 135° C (275° F)
Control and Programming
Protocol: USITT DMX-512
Control channels: 17, 21, 23, 24, 30
DMX channels: 4 protocol modes
Built-in demo sequences
Display: Blue/white LCD graphic
Pan/Titl resolution: 16-bit
Color wheel 1 positioning: 8- or 16-bit
Color wheel 2 positioning: 8- or 16-bit
Zoom: 8- or 16-bit
Dimmer: 8- or 16-bit
Controllable speed of fans
Movement control: Tracking or vector
Built-in analyzer for easy fault finding
Data in/out: Locking 3-pin XLR & 5-pin XLR
Electromechanical Effects
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
CTO: 0 - 100%
Colour wheel 1: 6 replaceable "SLOT&LOCK" colours + open
Colour wheel 2: 6 replaceable "SLOT&LOCK" colours + open
Dimmer/Shutter: Full range dimming and variable strobo effect
Zoom: 10° - 87° Depending on the lens type used
Pan: 530°
Tilt: 280°
Rigging
Mounting points: 8 pairs of? -turn locks
Fixation option: Pan/Tilt-lock mechanism
|
Stage Lighting |
Wash moving head light |
|
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
LUV |
|
Model Number |
LUV-Y1200E |
|
Shipping |
by Express,by sea or by air |
|
Payment |
T/T,Paypal, Western Union |
|
Certificate |
CE,ROHS |
|
Warranty |
1 year |
