Product Specifications
| Prod Model: |
HT760-I3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processor Main Frequency: |
Dual Core 1.8g |
| Operating System: |
Windows 7, 8 or Linux |
| USB Port: |
4* USB 3.0; 2 USB 2.0 |
| Graphic Card: |
Intel HD4000 |
| RAM&HDD: |
Not Include |
| Computer Case: |
Thick Brushed Aluminum Alloy |
| WiFi: |
150m or 300m WiFi with 2 Antennas |
| Size: |
197*197*29mm |
| Warranty: |
3 Years |
| Memory Capacity: |
≥4GB |
| CPU: |
Core i3 |
| Display Type: |
LCD |
| GPU: |
Intel |
| Display Screen Size: |
≥24" |
| HDD Capacity: |
2 Storage Support, 1 SSD+1 HDD |
| Drive Type: |
External USB Drive |
Product Description

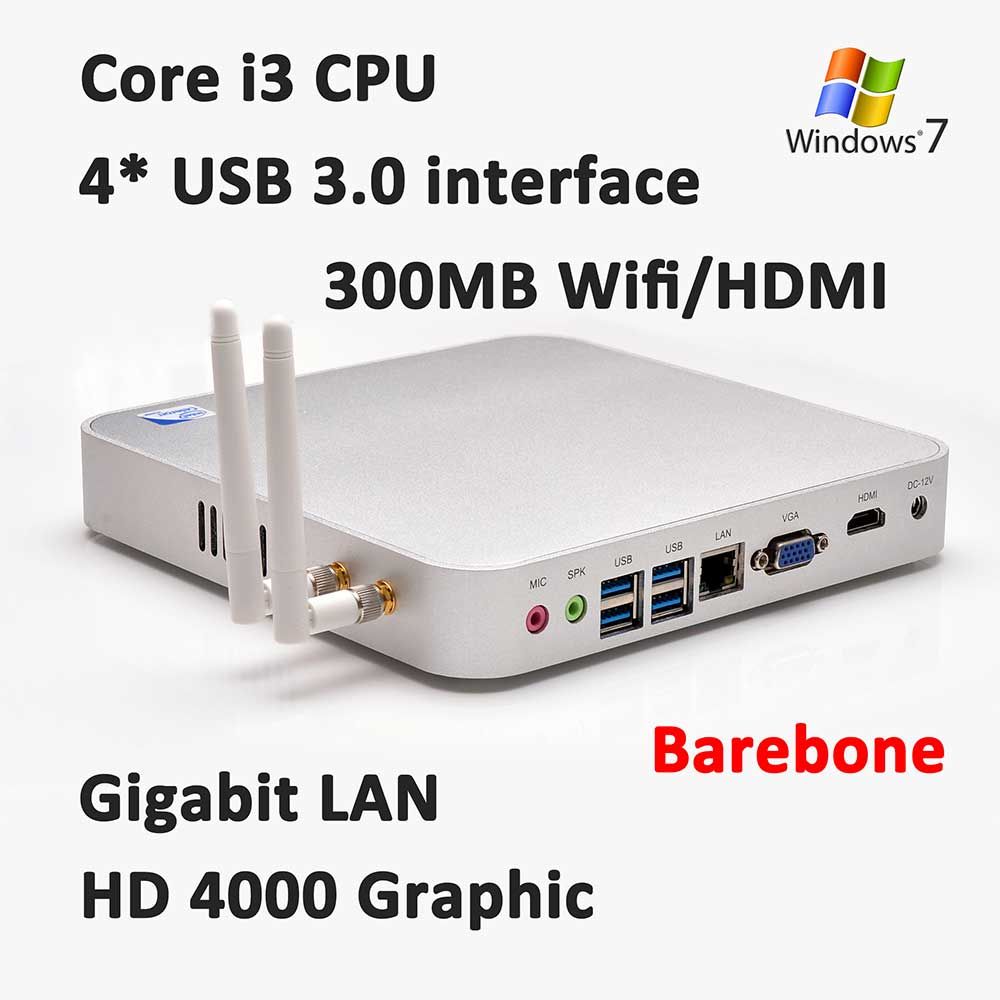

Item Name: Fanless Mini PC Desktop Computer Intel Core I3 HTPC Barebone with no RAM or HDD
If you want to add WiFi please add extra WiFi cost $7
If you need to get it with other capacity of memory and storage, pls feel free to talk with us online or leave message.
Case Material: Brushed Aluminum Alloy; Size: 197*197*29MM; Shipping carton per unit: 31.5*26*8 CM; NW: 1.5kg; GW: 2kg
Package Content: 1*Mini PC; 1*power adapter; 1*desk base; 2* antennas
Warranty: 30 days free defective replacement and 3 year free repair.
Description: This mini computer highlights its smart design and high performance. Design only 197*197*29mm mini size, can run 3D games and 1080P HD resolution vedio playing perfectly. Highly suggest using this mini computer to build home theater system
Specification:
CPU: Intel Core I3 1.8G Dual Core 4 Threads
RAM: 2G/4G/8G DDR3
Storage: 8G/16G/32G/64G/128G SSD; 160G/320G/500G/1TB HDD; Can install 1PC HDD and 1PC SSD together
I/O: Mic; Speaker; 4*USB 3.0 port; 2 USB2.0; 1* RJ45 Gigabit LAN Port; 1*VGA; 1* HDMI; 1* DC12V In;
Top Advantage:
1. Hard decode Blue High-Definition, 300M Wi-Fi with 2 antennas
2. High-grade and elegant outside looking, full aluminum alloy 2.9mm thick case
3. HDMI, VGA, RJ45 LAN...Full I/O make sure all your application supported
4. Low-Energy, power consumption from 12 to 16W
5. Supper strong performance, support perfect 3D games
6. Top grade quality, all material comes from qualified trustable factory and big brand
7. Fanless System, without fan, no noise
What can this mini computer do?
1. Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
4. Entertainment: Support blue ray 1080P video play, XBMC and others
How it works:
1. Work as normal mini desktop computer, only need connecting to monitor, keyboard and mouse to make a full computing system;
2. Work as HTPC, using HDMI cable connecting to HDTV, support remote air mouse and keyboard controller.
Main Application field:
Schools: Building multimedia teaching system at lowest cost;
Bank counter and other similar service end;
Home: Living Room as Home Theater Personal Computer(HTPC); Computer for children, share one computer with whole family users same time;
Office: This mini computer can apply to all office works including developers who require very powerful computing support;
Conference room: Build e-conference room at lowest cost and perfect performance;
Retail shops: Install cashier system and connect to cash box, label printer, barcode scanner and others;
Internet cafe: Build high-grade internet cafe at cheapest investment.
|
General |
|
Processor |
Intel Core i3 @1.8GHz Dual Core 4 thread |
|
Operating System |
Windows XP/ Windows 7/ Linux |
|
Storage |
SSD: 8G/16G/32G/64G/128G/256G
HDD: 160G/320G/500G/1TB
Can install 1SSD(OS)+1HDD(Data saving) |
|
Ram |
DDR3 2GB/4GB/8G |
|
Processor details |
|
CPU |
Intel Core i3 Ivy Bridge |
|
Speed |
1.8GHz (100MHz * 18.0) |
|
Processor number |
2 core / 4 threads |
|
Technique |
22NM |
|
Slot |
Socket H2(LGA 1155) |
|
Buffer Ram |
L1 data cache: 2*32 KB, 8-Way, 64 byte lines
L1 code cache: 2*32 KB, 8-Way, 64 byte lines
L2 cache: 2*256 KB, 8-Way, 64 byte lines
L3 cache: 3 MB, 12-Way, 64 byte lines |
|
Characteristic |
MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST |
|
Display Card Details |
|
Graphic Cards |
INTEL HD Graphics family up to 1GB video memory |
|
Resolution (MAX) |
Support 1920*1080 HD resolution, 32 bit color depth 60Hz |
|
Audio Cards |
Intel(R) display audio @ Intel Panther Point High Definition |
|
Network |
|
Network card |
Realtek RTL8168E PCI-E Gigabit Ethernet NIC |
|
Ethernet |
10/100/1000Mbps Adaptive |
|
WIFI |
802.11.b/g/n(150M or 300M Optional) |
|
I/O port |
|
Display port |
1* VGA+ 1* HDMI |
|
USB port |
4 * USB 3.0 ports |
|
Ethernet port |
Gigabit RJ 45 10/100/1000Mbps Adaptive |
|
Power input port |
1 inner diameter 2.5mm,external diameter 5.5mm |
|
Audio |
Standard 3.5 Audio input and output |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/3A |
|
Type |
External power adapter mode |
|
Consumption |
12 to 16W |
|
Noise |
Fanless System |
|
Temperature |
0-40 Centigrade |
|
Humidity |
10%-85% |
|
Product Dimension & Details |
|
Size |
197*197*29MM |
|
Case Thickness |
2.9MM |
|
Package Box |
Neutral Color Export Box |
|
Content |
Mini PC device, Power Adapter, Desk base, Wifi Antennas |
