Machine name:
Modernized SMT Solder Wire Processing Plant
Application:
Apply to all kinds of with lead or lead-free tin based soldering wire processing complete plant.
This Modernized SMT soldering wire processing plant consist of:
Electronic heating Solder furnace--Auto billect casting machine-CNC Solder wire extrusion machinery ----Solder wire rolling machine -----solder wire die drawing machines -----Automatic wire winding machine, the finished wire gauge is 0.8mm/0.6mm/0.3mm or else (per your request)
Ingot Melting step -Adopt stainless steel.
Burner adopt BAITE brand from Sweden. We can adopt electric or gas burner per customer's request.
Temperature controller adopt Japan RKC brand, electric equipment adopt SHSI brand from Taiwan.
Exhaust system (Buyer equipped according to his own plant)
Mix system: Adopt electro motion
Crucible Specification: Can be 0.5Ton-3Ton according to the required output
Wire extrusion step. Apply to tin based lead-free solder and tin zinc alloy extruding.
Lead& tin alloy wire( Extruding specs φ 5-φ 18mm)
Lead& tin alloy wire: Can extruding lead percentage up to 10-99.95% solder alloy wire
Can extrude single core & triple cored flux solder wire
Lead-free solder wire( Extruding specsφ 5-φ 18mm)
Tin & copper lead-free solder alloy wire
Tin & silver lead-free solder alloy wire
Tin, silver & copper lead-free solder alloy wire
Tin& zinc lead-free solder alloy wire (zinc percentage no more than 25%)
With lead or lead-free solder bar (Have to equipped with solder bar cutter & stamping machine)
Die drawing machinery step
VT-17D 9mm-4.3mm
VT-21Z 4.3mm-1.8mm
VT-21X 1.8mm-0.8mm
VT-28W 0.8mm-0.3mm
Plastic bobbin winding step
Application: Apply to all kinds of solder wire with lead or lead-free winding. (VTZ-08 Semi-auto wire winding machine apply toφ 0.8mm-φ 1.6mm wire; VTX-06 auto wire winding machine apply toφ 0.6mm-φ 2.0mm wire; VTS-08 is manual type, apply to φ 0.8mm-φ 3.0mm wire)
About our company
Victory Technology Internation Ltd is a foreign Enterprise, which is specialiszed in equipment manufacture &develop for solder powde, solder paste, solder wire, solder bar /stick, silver wire and metal spraying materials, pure zinc, zinc alloy wire ect.
We have been making experience and technologies for electronic solder equipmengt, along with mature solder product producng technologies and formula with more than 20 years history, In 2004, our vivtory has been covering of 33, 000 square meter standard modernized factory building, being the largest electronic solder machine production base.
Our workshop
Some pictures with our customers
Step 1:
solder melting furnace , to smelt the solder materials ( with capacity from 0.5T~3.0T) |
Step 2:
auto-billet casting machine , after the solder materials smelting ,and then casting it to the solder billet at dimension (Φ85*185mm) |
Step 3:

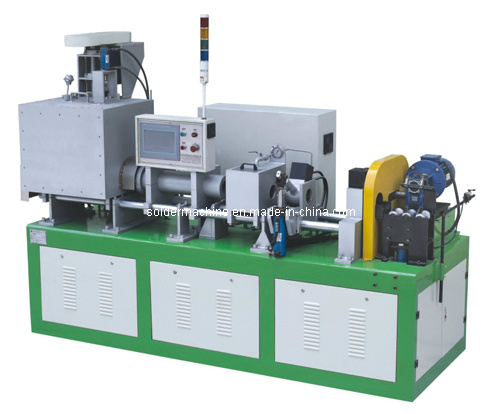

solder extruder , feeding the solder billet into the extruder ,and extrusion to the solder wire at Φ9mm(solid or flux cored wire ) |
Step 4:
Large wire drawing machine, drawing the solder wire from Φ9mm to Φ4.3mm |
Step 5:
Medium wire drawing machine, drawing the solder wire from Φ4.3mm to Φ1.8mm |
Step 6:
Small wire drawing machine, drawing the solder wire from Φ1.8mm to Φ0.8mm |
Step 7:
Small wire drawing machine, drawing the solder wire from Φ0.8mm to Φ0.3mm |
Step 7:
solder wire winding machine, winding and packing the final solder wire into bobbin |
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
