| Supplier: | Zhangjiagang Blissum Machinery Co., Limited |
|---|---|
| Price: | US $ 35000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | RFC-24-24-8 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shipment Terms: | by Sea |
| Delivery: | 30days After Receive Deposite |
| Package: | Wooden Case |
| Warranty: | 1year |
| Certificate: | CE, ISO, SGS |
| Automatic Grade: | Automatic |
| Structure: | Rotary |
| Feed Cylinder Structure: | Single-Room Feeding |
| Material Type: | Liquid |
| Type: | Volumetric Filling Machine |
| Filling Valve Head: | Multi-Head |
| Packaging Type: | Bottle |
| Packaging Material: | Film |
| Filling Principle: | Gravity Filling |
| Dosing Device: | Vavle |
2014 new type 12000bph pure/mineral water filling machine/machinery
Mineral Water Production Line is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
Bottled pure water filling machine:
1 Direct connection technology between air conveyor and in-feeding starwheel is applied to replace in-feeding screw and conveying chain to ease bottle changing process with only to change few parts. Newly-designed bottle-separating grippers are assembled to starwheel.
2 We adopts Neck-hanging technology in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only few parts need to be adjusted
3 Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.
4 High-speed, easily-cleaned filling valves with big flow volume are equipped with well CIP system and control system to rinse the equipment thoroughly.
5 splint of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change arch board and starwheel , within ten minutes
Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→ Reverse Osmosis→ Ozone generator with Ozone generator→Pure water tank → Filling System(Washing,Filling,Capping 3 in 1→Bottle labeling machine →Bottle packing machine
The detailed pictures of pure water filling machine:

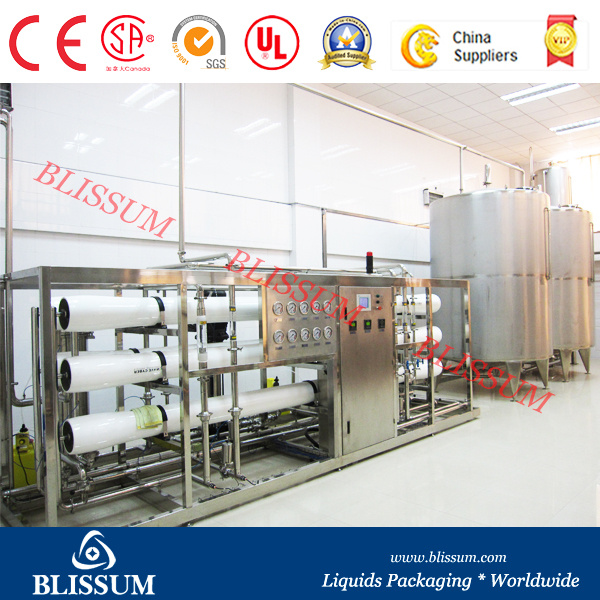

A) Water Filling Line --Water treatment system

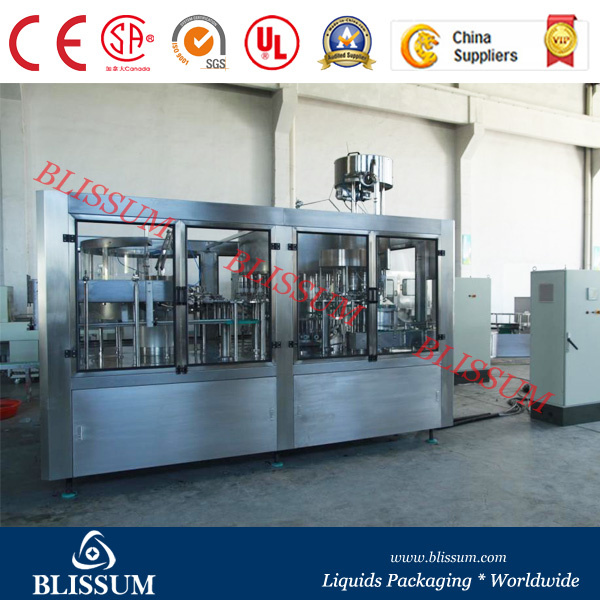

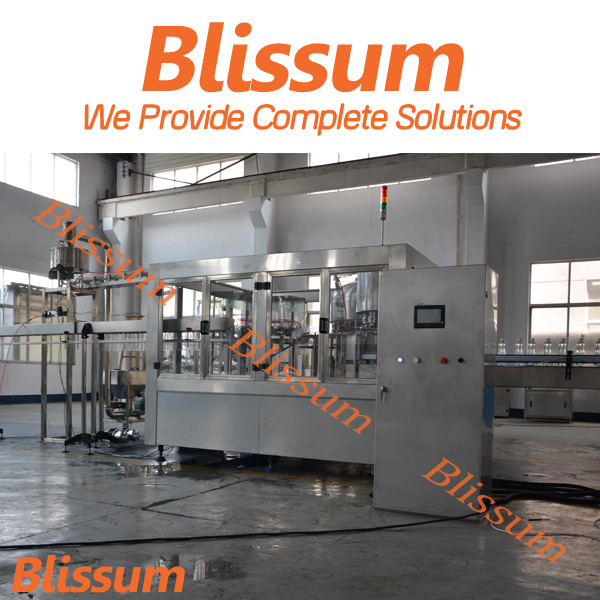

B) Water Filling Line --3 in 1 Filling Machine (washing+filling+capping parts)
a) Washing part of Bottled pure Water Filling Machine:
l All 304 stainless steel rinser heads, water spray style inject design, save water consumption & more clean
l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
l 304 stainless steel washing pump
b)Filling Part of Bottled Pure water filling machines :
l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
l Filling volume adjustable in fine rank, same liquid level after filling
l All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
l 304 stainless steel filling pump
l no bottle no filling
c) Capping part of Bottled pure water filling machine:
l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
l All 304stainless steel construction
l No bottle no capping,
l Automatic stop when lack of bottle
1. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed, SS 316 is also available.
2. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The
quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
