Guangzhou Baoyue Electromechanical Equipment Co., Ltd. >> 2014 New Type CE Approved Auto Paint Spray Booth/Rock Wool Panel and Riello Burner

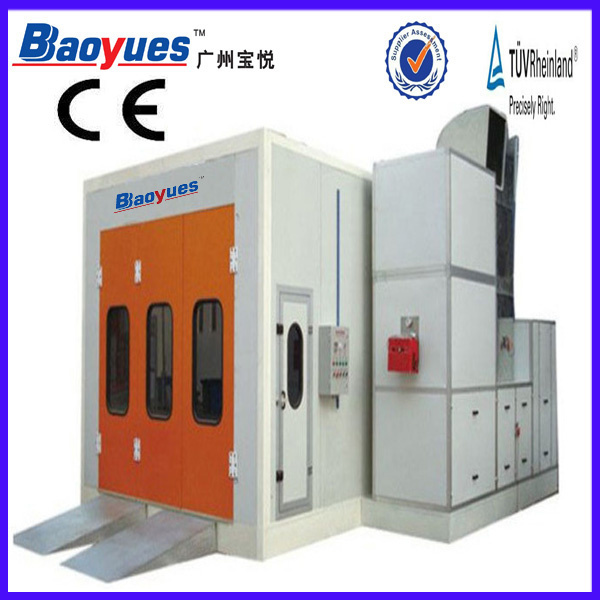

2014 New Type CE Approved Auto Paint Spray Booth/Rock Wool Panel and Riello Burner

Name: 2014 New Type CE Approved Auto Paint Spray Booth/Rock Wool Panel and Riello Burner
Brand: china-manufacturer-directory.com
SKU: 684640542
Availability: InStock
Rating: 4.4 (39 reviews)

Supplier:	Guangzhou Baoyue Electromechanical Equipment Co., Ltd.
Price:	US $ 10000-11000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	BY-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Panel:	Rock Wool
Heating:	Riello Diesel Burner
Intake And Exhaust Unit:	Turbo Fan
Design:	European Design
Heating Mode:	Diesel
Certification:	CE
Condition:	New

Product Description

Spray booth for car painting and baking
1, CE approved, ISO 9000 safety control
2, Real export manufacture
3, Active carbon filter system
4, Car Paint Room

Model: BY-5 nonstandard
Inside dimention: 6900*3900*2650mm L*W*H
Any Size Requirements Can Be Made.
With waterborne paint system

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.

B. During baking, drying time, temperature in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.

C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Detailed Image

Manufacturing Process

Certificate

Inside dimension	6900×3900×2650 mm(L×W×H)
Outside dimension	7000×5300×3450 mm(L×W×H)
Front door	Folding door, 4 folds, 3200×2600 mm(W×H),without frame cover, colour : blue.
Emergency door	1 unit, 800×2000mm(W×H), colour: white
Basement	Galvanized steel assemble, 300mm high, with adjustable bolts, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized. 3ramps, 900×2000mm/pc.
Wall Panels	Thickness: 50mm, width:1150mm,tongue and groove structure, 0.476mm colour steel with rock wool inside, colour: white.
Light	Ceiling Lights: 8Units×4Pcs=32Pcs×58W, Side Lights: 13Units×4Pcs=52Pcs×18W, with electronic ballasts, lighting boxes are powered coated, illumination≥1500Lux
Generator cabinet	Intake from back upper, exhaust from back upper, aluminium alloy frame; white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside.
Intake and Exhaust system	Inlet: 1×7.5KW turbofan, power: 7.5KW, air capacity: 25000m 3 /h.
Intake and Exhaust system	Outlet: 1×7.5KW turbofan, power: 7.5KW, air capacity: 25000m 3 /h.
Heating system	RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.
Purification system	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter
Roof	Galvanized steel
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, pressure alarm system,adjustable electric exhaust damper, all motors are normal start.
Total power	18.5KW

As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc. We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future.
