Qingdao Desiree Group Rubber Machinery Co., Ltd. >> 2014 Qingdao ISO CE SGS Certificated Rubber Cracker Mill

2014 Qingdao ISO CE SGS Certificated Rubber Cracker Mill

Name: 2014 Qingdao ISO CE SGS Certificated Rubber Cracker Mill
Brand: china-manufacturer-directory.com
SKU: 691590452
Availability: InStock
Rating: 4.5 (76 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 36000-46000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XKP-560
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Customized:	Customized
Weight:	<50 tons
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Mixing Roll
Type Of Tire Machinery:	Cycle Tire Machine
Power:	10~100KW
Using Life:	≥15 Years
Name:	Rubber Cracker Mill
Condition:	New
Brand:	Desiree
Warranty:	12months

Product Description

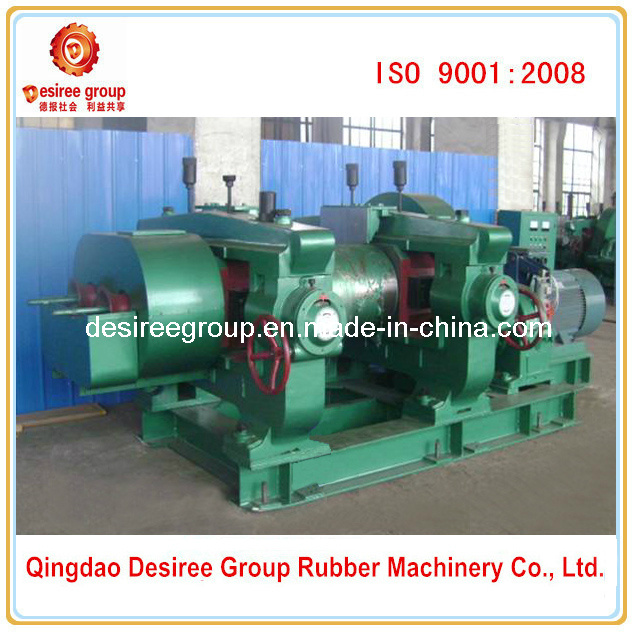

Rubber Cracker Mill XKP-560

Function:
1. Used for crushing the raw rubber before plastication.
2. Used in scrap tire recycling plant, for crushing of processed scrap tire blocks.

Roller detail:
1. Made of chilled cast iron with wear-resistance hard surface.
2. One with grooves, for easy crushing of raw material.
3. The temperature of rollers can be adjusted through inputting steam or cooling water.

Safety:
1. Equipped with overload protection device, to prevent the damage of main components.

2. Equipped with emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.

Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.

Any question about our products, please feel free to contact with us.
We are always pleased to serve you at any time.

Rubber Cracker Mill Model No.	XKP-560	XKP-450	XKP-400
Working diameter of roller(mm)	Φ560 Front roller/Φ510 Rear roller	Φ450	Φ400
Working length of roller(mm)	800	650	600
Working linear speed of front roller(m/min)	25.6	24.5	18.65
Friction ratio of front and rear roller	1:1.28	1:1.27	1:1.27
Main motor power(kW)	75	55	37
Overall size( L x W x H)(mm)	4750x2300x2000	4650x2000x1550	3850x1800x1550
Weight(kg)	18500	11000	7500
Remarks	Copper bush and rolling bearing both grease and oil	Nylon bush / Use grease for lubrication
