Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part: |
Rail Fastener |
Product Description
| Our Slogan: | No Focused Will, No Professional Skill |

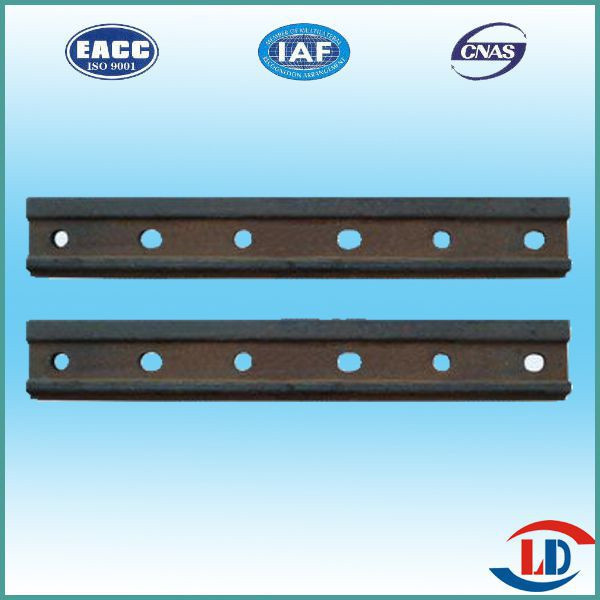

| Product Name: | Railway Fish Plate |
| Material: | Q235,Q295,C50,50# or as customer require |
| Function | Use for rail joint |
| Dimensions | All kinds available |
| Certificate: | ISO9001:2008/ SGS,TUV |
| MOQ: | 500 Pieces |
| Packing: | Wooden cases or other requirements |
| Delivery Time: | 45 days |
| Payment Terms: | L/C,T/T or others |
| Supply Capacity: | 2 million pieces per year |
| Type | Length/Diameter | Weight(Kg) |
| 115RE | 4 hole-24*/6 hole-36* | 17.04/25.56 |
| 132-136RE | 4 hole-24*/6 hole-36* | 17.75/26.63 |
| UIC60 | 4 hole-630/dia26
4 hole-600/dia28
4 hole-630/dia25 | 18.07
17.47
18.1 |
| UIC54 | 4 hole/6 hole-800 | 14.34/19.94 |
| BS80A | 4 hole | 6.5 |
| BS90A | 685.8/dia 26
792.9/dia 26.2 | 13.23
15.34 |
| 90/91LB | 4 hole/6 hole | 18.08/19.9 |
| 50Kg | 4 hole/6 hole | 14.3/19.5 |
| BS75R | 4 hole | 6.56 |
| BS60A | 4 hole | 5.61 |
| S49 | 4 hole | 9.71 |
Anyang Lianda CNC Precision Forging Co., Ltd has been specialized in close die forgings for years. Our company has three automatic CNC forging production lines, two automatic heat treatment production line, advanced mold processing equipment and the complete testing equipment. The forged parts we are able to produce can reach the max diameter 400mm or the max weight 50kg. Our main products are bevel gear, gear, yoke, shaft, valve, base plate, gauge apron, fish plate etc.
We usually produce precision forgings according to cusyomers' drawings or sample, so please provide us your drawings or samples including the material, dimension, weight, quantity etc, then we will send you the quotation according to your detailed requirements within 3 days.
Anyang Lianda CNC Precision Forging Co., Ltd. Was established in June 2011, It is a joint venture which controlled by Anyang Forging (Group) Machinery Industry Co., Ltd. Also it is a high-tech enterprise which engaged in precision forgings production and combination with production, learning and research. The mainly products is precision forged products for auto motor industry, engineering machine, agricultural machine, mining machine, rail transportation and other industries etc. Our company is located in the number 6 Yinshang Logistics Park of Anyang city Henan China, accessible and convenient transportation, Have obtained quality certificate ISO9001. Our company obtain the most advanced precision forging equipments in the world's, we have three production lines with CNC Hydraulic Die Forging Hammers as the major equipments and Band Sawing Machine, Closed Single Point Presses, IF Furnaces as the auxiliary equipments. The max diameter of forged parts we are able to produce can reach 400 mm or the max weight of forged parts we are able to produce can reach 40 kg.
