Product Specifications
| Prod Model: |
YTD-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable Scope: |
FPC Soft Board/EMI/Pi/Back Glue Joint (3m, Tesa PA |
| The X,Y Power System Of Cabinet: |
Servo Motivation |
| The Machine Screw Guide Rail: |
High Precision Mute Grinding Screw Guide |
| Mechanical Repeatability: |
Plus&Minus 0.005mm |
| Products' Laminating Accuracy: |
Plus&Minus 0.075mm |
| Laminating Speed: |
0.4 Sec./PCS. |
| Applicable Product Size: |
Min:50*50mm Max:270*400mm(It Can Be Made Accordin |
| Applicable Back Glue Size: |
Min:3*5mm Max:50*100mm |
| Driven Type: |
Pneumatic |
| Classification: |
Cold Laminating Machine |
| Application: |
Soft Board |
| Automatic Grade: |
Automatic |
Product Description
INTRODUCTION:

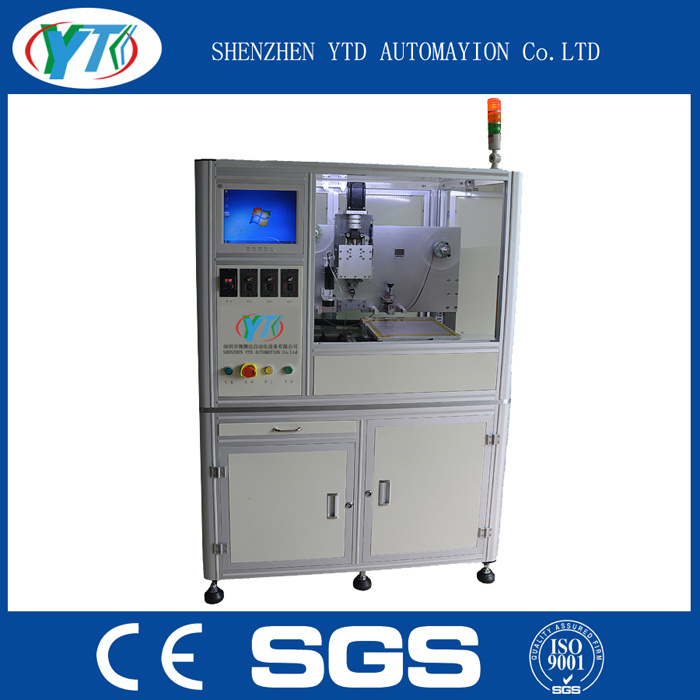

FPC Automatic Labeling Machine is suitable for electronic products such as PC,mobile phone,digital camera,etc,with high intelligent PLC & stepping motor & servo motivation & grinding screw guide,well known for its high speed,high precision,stable quality and easy operation.
SPECIFICATIONS:
| Items | Standards |
| The Applicable Scope | FPC soft board/EMI/PI/back glue joint (3M, tesa palisade, kapton glue, etc.) single PCS joint |
| Equipment joint spindle type | Single shaft, pneumatic or servo |
| The X,Y power system of cabinet | Servo motivation |
| The machine screw guide rail | High precision mute type grinding screw guide |
| Mechanical repeatability | ±0.005MM |
| Products' laminating accuracy | ±0.075MM |
| Laminating speed | 0.4 seconds per time |
| Applicable product size | MIN:50*50MM MAX:270*400MM(It can be made according to customer requests) |
| Applicable back glue size | MIN:3*5MM MAX:50*100MM |
| power | AC220V 1.0KW |
| Air source | 0.5-0.8MPa |
| The weight of a machine | About 450 kg |
| Equipment size | Length*width* height(1200*1000*1720MM) |
SPECIAL PARTS:
1.High pixel and high intelligent camera from Japan, guaranteeing the precision of the position.
2.High precision, mute leadscrew of grinding type from Taiwan, ensuring stable quality.
3.High speed, high impact special custom cylinder, ensuring the cutting quality of the back glue.
4.Self-developed machine software,Simple operation,easy to get started and can be made according to customer requests.
ADVANTAGES::
| Project order | Comparing Items | Comparing contents | Comments |
| On the market | YuTengDa |
| 1 | Production efficiency | 1 sec./pcs | 0.4sec./pcs |
|
| 2 | Product quality | Crashing a lot | Stable,continuous production |
|
| 3 | Product precision | +/-0.15MM | +/-0.075MM |
|
| 4 | Handling | Hard to manipulate | Humanized operation, changes can be made according to customer's need |
|
| 5 | Cost | High price | Low price |
|
| 6 | Set up new materials issue | About an hour | 0.5h for new material issues,10 mins for old material issues |
|
