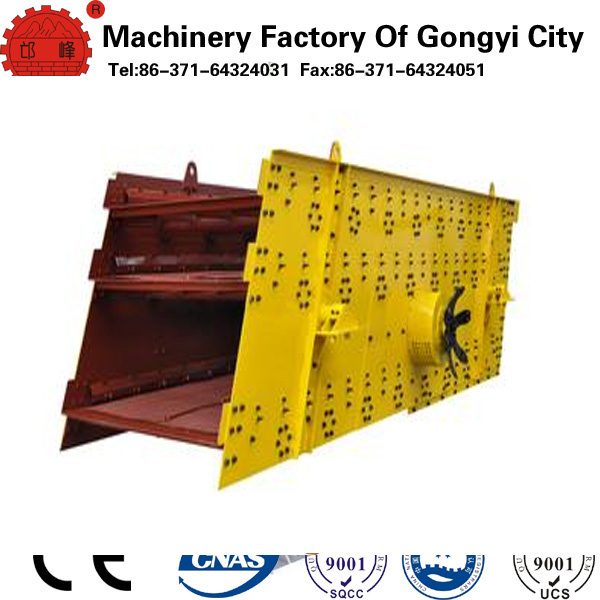

circular Vibrating Screen - Product Description
Circular vibrating screenadopts eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of screen box forces screen box to vibrate by the driving of motor. The sideboard of vibrating screen is made of high quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support.
The motor of Circular vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.
Vibrating Screen - Application
Circular vibrating screen is applied in quarry for screening sandstone or for product classification of coal, mine, construction materials, electric power and chemical industry.
Technical Parameters
Round Vibrating Screen - Technical Parameters
Spec. | Screen Surface | Maximum Feeding Particle Size(mm) | Capacity (t/h) | Motor | Weight (kg) |
Area (m2) | Dip Angle (°) | Mesh size (mm) | Spec. | Power |
YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4905 |
2YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 5311 |
YA1530 | 4.5 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4675 |
YA1536 | 5.4 | 20 | 6~50 | 200 | 100~350 | Y160M-4 | 11 | 5137 |
2YA1536 | 5.4 | 20 | 6~50 | 400 | 100~350 | Y160L-4 | 15 | 5624 |
YK1536 | 5.4 | 20 | 30~150 | 400 | 160~650 | Y160M-4 | 11 | 5625 |
2YK1536 | 5.4 | 20 | 30~200 6~50 | 400 | 160~650 | Y160L-4 | 15 | 6045 |
YK1542 | 6.5 | 20 | 6~50 | 200 | 110~385 | Y160M-4 | 11 | 5515 |
2YK1542 | 6.5 | 20 | 30~150 | 200 | 110~385 | Y160L-4 | 15 | 6098 |
YK1548 | 7.2 | 20 | 6~50 | 200 | 120~420 | Y160L-4 | 15 | 5918 |
2YK1548 | 7.2 | 20 | 6~50 | 200 | 120~420 | Y160L-4 | 15 | 6321 |
YK1548 | 7.2 | 20 | 30~150 | 400 | 200~780 | Y160L-4 | 15 | 6842 |
2YK1548 | 7.2 | 20 | 30~150 | 400 | 200~780 | Y160L-4 | 15 | 7404 |
YK1836 | 6.5 | 20 | 30~150 | 200 | 140~220 | Y160M-4 | 11 | 5205 |
2YK1836 | 6.5 | 20 | 30~150 | 200 | 140~220 | Y160L-4 | 15 | 5946 |
YK1836 | 6.5 | 20 | 30~150 | 400 | 220~910 | Y160M-4 | 11 | 5900 |
2YK1836 | 6.5 | 20 | 30~200 6~50 | 400 | 220 ~900 | Y160L-4 | 15 | 6353 |
YK1842 | 7.6 | 20 | 6~150 | 200 | 140~490 | Y160L-4 | 15 | 5829 |
2YK1842 | 7.6 | 20 | 6~150 | 200 | 140~490 | Y160L-4 | 15 | 6437 |
YK1842 | 7.6 | 20 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 6352 |
2YK1842 | 7.6 | 20 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 7037 |
YK1848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6289 |
2YK1848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6624 |
YK1848 | 8.6 | 20 | 30~150 | 150 | 250~1000 | Y160L-4 | 15 | 7122 |
2YK1848 | 8.6 | 20 | 30~150 | 400 | 250~1000 | Y160L-4 | 15 | 7740 |
YK2148 | 10 | 20 | 6~50 | 210 | 180~630 | Y180M-4 | 18.5 | 9033 |
2YK2148 | 10 | 20 | 6~50 | 210 | 180~630 | Y180L-4 | 22 | 10532 |
YK2148 | 10 | 20 | 13~200 | 400 | 270~1200 | Y180M-4 | 18.5 | 10430 |
2YK2148 | 10 | 20 | 30~ 150 | 400 | 270~1200 | Y180L-4 | 22 | 11190 |
YK2160 | 12.6 | 20 | 3~80 | 200 | 230~800 | Y180M-4 | 18.5 | 9926 |
2YK2160 | 12.6 | 20 | 6~50 | 200 | 230~800 | Y180L-4 | 22 | 11249 |
YK2160 | 12.6 | 20 | 30~150 | 400 | 350~1500 | Y200L-4 | 30 | 12490 |
2YK2160 | 12.6 | 20 | 30~150 | 400 | 350~450 | Y200L-4 | 30 | 13858 |
YK2448 | 11.5 | 20 | 6~50 | 200 | 200~700 | Y180 M -4 | 18.5 | 9834 |
YK2448 | 11.5 | 20 | 6~50 | 400 | 310~1300 | Y200L-4 | 30 | 11830 |
2YK2448 | 11.5 | 20 | 30~150 | 400 | 310~1300 | Y200L-4 | 30 | 13012 |
YK2460 | 14.4 | 20 | 6~50 | 200 | 260 ~780 | Y200L-4 | 30 | 12240 |
2YK2460 | 14.4 | 20 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 13583 |
YK2460 | 14.4 | 20 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 13096 |
2YK2460 | 14.4 | 20 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 14455 |
