2015 Jiangsu EPS Air Cooling Block Moulding Machinery Factory

Name: 2015 Jiangsu EPS Air Cooling Block Moulding Machinery Factory
Brand: china-manufacturer-directory.com
SKU: 759567725
Availability: InStock
Rating: 4.6 (141 reviews)

Supplier:	EPS INDUSTRY ENGINEERING CO., LTD.
Price:	US $ 50000SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	spc eps machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Product Length:	2000~8000mm
Product Width:	1200mm
Product Height:	1000mm
Product Density:	8~35 Kg/M3
Capacity:	3~20 Piece/Hr
Steam Pressure:	0.6 MPa
Compressed Air Pressure:	0.6 MPa
Power Supply Voltage:	380/50 V/Hz
Power:	30~42 Kw
Weight:	6000~12500 Kg
Board Layers:	Single Plate
Certification:	ISO9001:2008
Automation:	Automatic
Computerized:	Computerized
Product Type:	EPS Board

Product Description

Description:

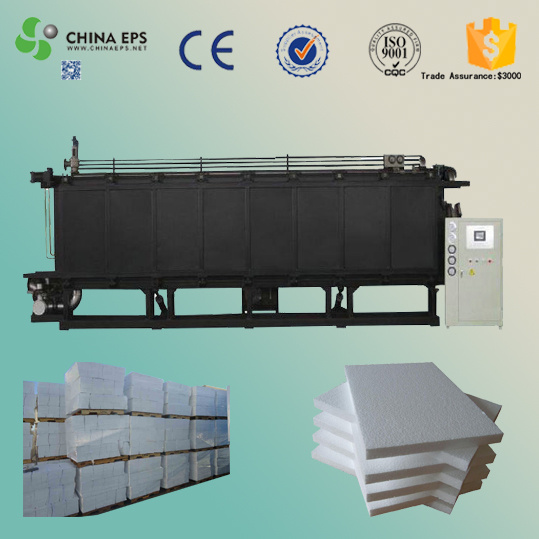

EPS block moulding machine is used for making EPS block, which can be cutted into panels for wall insulation, sandwich panel core, etc.

Characters
The inner walls formed by stainless steel cuniform plates insulated by rock wool and covered by galvanized plates. The 15Kw material suction blower with insulated cabin block fusion monitored by foam pressure switch sensor fast vacuum system with fast cycle time mitsubishi PLC programming and touch screen.

Remark: Height changeable system is optional

TYPE ADVANTAGE	TRADITIONAL BLOCK MOULDING MACHINE	NEW HIGH SETTING VERTICAL BLOCK MOULDING MACHINE	REMARKS
ELECTRIC EQUIPMENTS	DOMESTIC MADE	IMPORTED	THE LATTER WITH HIGHER COSTS, BUT WITH HIGHER SAFETY AND USABILITY
MOULDING SPEED e.g.: 20kg/m3	8-10 min/cycle	4-5 min/cycle	THE LATTER OPTIMIZES AIR INLET STRUCTION, SAVES ENERGY
FEED SPEED	30-40s	20s	THE LATTER WITH SHORTER PRODUCTION PERIOD
BLOCK BONDING LEVEL	EXPERIENCED WORKERS HAVE TO ESTIMATE COOLING TIME, HIGH UNCERTAINTY	EQUIPPED PRESURE SENSING SWITCH, AUTOMATICALLY STOP TO COOL & AUTOMAICALLY OPEN MOULD WHEN BLOCK EXPANSIBILITY REACH THE SETTED PRESURE NUMBER	AN IMPORTANT FACTOR INFLUENCING BLOCK QUALITY
INNER MOULD PANEL	ALUMINIUM	STAINLESS STEEL	THE LATTER IMPROVES AIR INLET & EXHAUST, LESS BLOCKAGE
CONTROL	HYDRAULIC CONTROL	ELECTRIC CONTROL	THE LATTER AVOIDS PROBLEMS LIKE OIL LEAK, MAINTENANCE WHEN ADOPTING HYDRAULIC CONTROL, CAN BE CUSTOMIZED WITH HYDRAULIC + ELECTRIC CONTROL
OTHERS		AUTO TRANSPORT, NO LABOUR FOR FLITTING
		INSULATING COURSE
		NEW VACUUM SYSTEM

specification	Unit	SP/E2000	SP/E3000	SP/E4000	SP/E6000	SP/E8000
Product length	mm	2000	3000	4000	6000	8000
Product width	mm	1200	1200	1200	1200	1200
Product height	mm	1000	1000	1000	1000	1000
Product density	Kg/m3	6-35	6-35	6-35	6-35	6-35
Capacity(20kg/m 3 )	Piece/hr	12	12	12	12	12
Steam pressure	Mpa	0.6	0.6	0.6	0.6	0.6
CompressedAirpressure	Mpa	0.6	0.6	0.6	0.6	0.6
Power supplyvoltage	V/Hz	380/50	380/50	380/50	380/50	380/50
Power	kw	32	32	39	53	53
Contoursize	mm	80004000 4000	90004000 5000	100004000 6000	120004000 8000	140004000 10000
weight	kg	8000	10000	12000	15000	18000

Picture of EPS Block
