Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spraying Capacity: |
0.9m3/Hour |
| Working Pressure: |
<=4MPa (Adjustable) |
| Voltage/Hz: |
Customized |
| Vertical Plastering Distance: |
15 M |
| Horizontal Plastering Distance: |
30 M |
| Displacement: |
15 L/Minute |
| Air Consumption: |
150-600 L/Minute |
| Max Aggregate Diameter: |
2mm |
| Type: |
Shotcrete |
| Machining Process: |
Vacuum |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Shotcrete Type: |
Mortar |
| Productivity: |
0.9m3/Hour |
| Feeding Height: |
15m |
Product Description

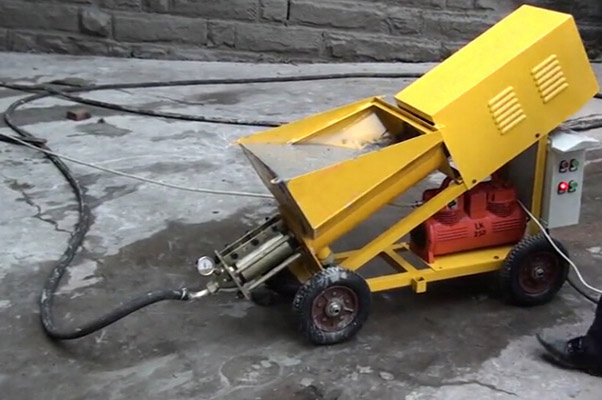

2015 Mortar Spraying Machine Mortar Plastering Machine :
1 Can spray putty, diatom mud, K11, 911, penetration crystallization, polyurethane, JS, cement and asphalt waterproofing coating materials, continuous and stable, no impulse.
2. Comes with special air compressor,compact and lightweight, simple operation.
3. Patented nano ceramic technology, super wear-resistant, durable.
4. Patented universal transmission technology, energy saving, noise reduction,shock suction.
5. Patented worm boosting technology, passive boost, easy adjustment.
6. Patented double helix rotor curve meshing technology, greater displacement, higher pressure, less energy consumption.
7. Patented adjustable stator technology, easy to adjust the pump pressure, prolong the service life to 3 - 5 times.
8. Patented sealing technology, no leakage, clean construction, put an end to pollution waste, maintenance free.
9. Patented specially made conjoined gear motor,small power,great strength, ultra low energy consumption.
10. Equipped with special type of paint spraying gun, can spray thick viscous slurry, spray evenly.
Technical Specifications :
Model | BP-05 |
| Max Aggregate Diameter | 2MM |
| Spraying Capacity | 0.9M3/Hour |
| Displacement | 15 L/Minute |
| Air Consumption | 150-600 L/Minute |
| Working Pressure | <=4Mpa (Adjustable) |
| Plastering Distance | Vertical:15M |
| Horizontal:30M |
| Power | 1.5KW |
| Voltage | 380V(Industrial Electricity) |
| 220V(Civial Electricity) |
| 110V(Civial Electricity) |
| Weight | 120Kg |
| Dimension | 1300x450x1000MM |
With 20 year's experience, Qinhuangdao Lulong HT Engineering Machinery Factory keeps pace with updated technique in the world. The product design bases on the original research findings from the top lab in China. We are focusing on Asia, Europe, North America, South America, Africa, Oceania markets and improving the reliability than ever.
We have advanced technique, steady quality and excellent performance. Moreover, our products are perfectly suitable for complicated working condition and satisfying needs from customers.
Customer Support:
We focus on providing complete professional pre-sales and after sales support for our customers across all products lines through a comprehensive, multilingual technical support service. "Excellence in performance, Excellence in quality" is our quality policy.
Quality:
We enforce the strictest quality standard in products, ensuring the highest level of operation and service from product design and manufacture to customer delivery and after-sales services.
Mission:
Our mission is to provide products with high quality and competitive prices to our customers, while achieving the most customer satisfaction.
We sincerely hope to set up long term cooperation with you based on mutual benefits.
