1. Brief introduction

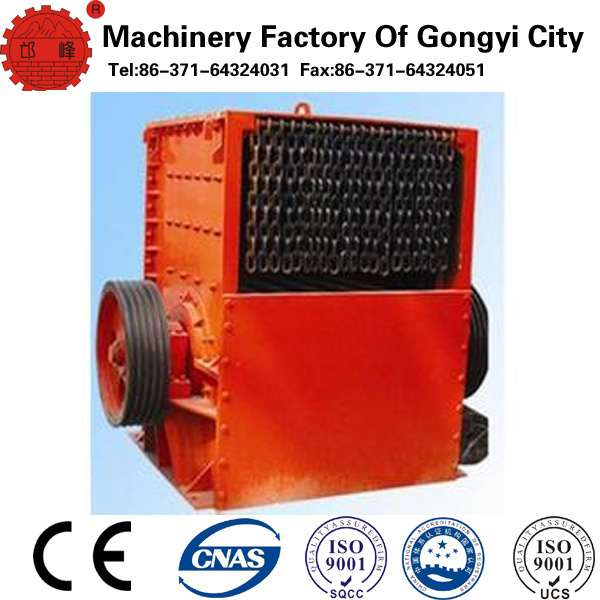

box Hammer Crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture,such as coal, cement,gypsum,alumen,brick,tile,limestone,etc.It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
2. Working Principle
The main working part of box Hammer Crusher is the rotor with hammers.The rotor consists of main shaft, disk,hinge pin and hammers.A sieve plate is below the rotor.The motor drives the rotor to rotate at a high speed.When the materials get into the crushing cavity,they are crushed by the rotating hammers,the crushed products which meet the required size can be discharged from the sieve plate and become the final products,the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Model | / Turn sub-work | Speed | Feeding Size | Max Feeding Size | Output Size | Handle ability | Power | Weight | Over dimension |
mm | r/min | mm | mm | mm | t/h | kw | t | mm |
Φ400×400 | Φ400/400 | 1500 | 145×450 | ≤100 | ≤10 | 5-8 | 7.5 | 0.9 | 844 ×942×878 |
Φ600×400 | Φ600/400 | 1000 | 295×450 | ≤100 | ≤15 | 10-12 | 18.5 | 1.03 | 1054×972×1117 |
Φ600×600 | Φ600/600 | 1000 | 295×570 | ≤100 | ≤15 | 12-18 | 45 | 2.14 | 1315×840×1501 |
Φ800×600 | Φ800/600 | 1000 | 350×570 | ≤120 | ≤15 | 20-25 | 55 | 2.45 | 1515×2586×1040 |
Φ800×800 | Φ800/800 | 1000 | 350×750 | ≤120 | ≤15 | 35-45 | 55 | 3.05 | 1515×2831×1040 |
Φ1000×800 | Φ1000/800 | 1000 | 580×850 | ≤200 | ≤15 | 25-40 | 110 | 6.5 | 3206×2210×1515 |
Φ1000×1000 | Φ1000/1000 | 1000 | 580×1060 | ≤200 | ≤15 | 40-80 | 132 | 7.59 | 3514×2230×1515 |
Φ1250×800 | Φ1250/800 | 750 | 650×850 | ≤200 | ≤15 | 20-50 | 132 | 11.7 | 2630×1780×2050 |
Φ1250×1250 | Φ1250/1250 | 750 | 650×1330 | ≤200 | ≤20 | 90-110 | 185 | 13.2 | 2630×2180×2050 |
Φ1400×1400 | Φ1400/1400 | 750 | 1050×1540 | ≤250 | ≤20 | 120-170 | 280 | 17.2 | 2790×2800×2310 |
Φ1600×1600 | Φ1600/1600 | 600 | 1500×1785 | ≤350 | ≤20 | 220-280 | 450 | 22.8 | 3350×3120×2660 |
