2015 New Hpr Slide Wirewound Variable Ceramic Resistor
| Price: |
US $ 5/Piece |
| Trade Terms: |
others |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
HPR200W-AP01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Surface Mount |
| Type: |
Slide Potentiometer |
Product Description

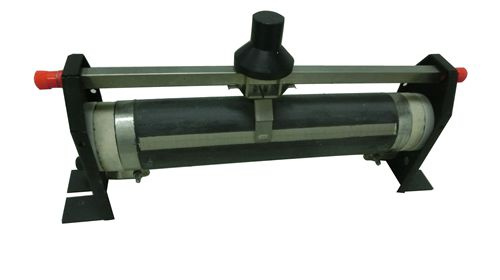

2015 New HPR Slide Wirewound Variable Ceramic Resistor

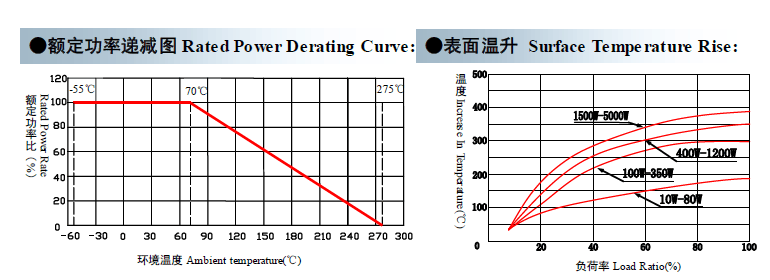

1, Good overload and heat durability capacity, the use life is longer than the others.
2, The resistors surface is coated in green
3, Operating ambient temperature: -55C to +275C
4, Resistance tolerance: ± 5%, ± 10%

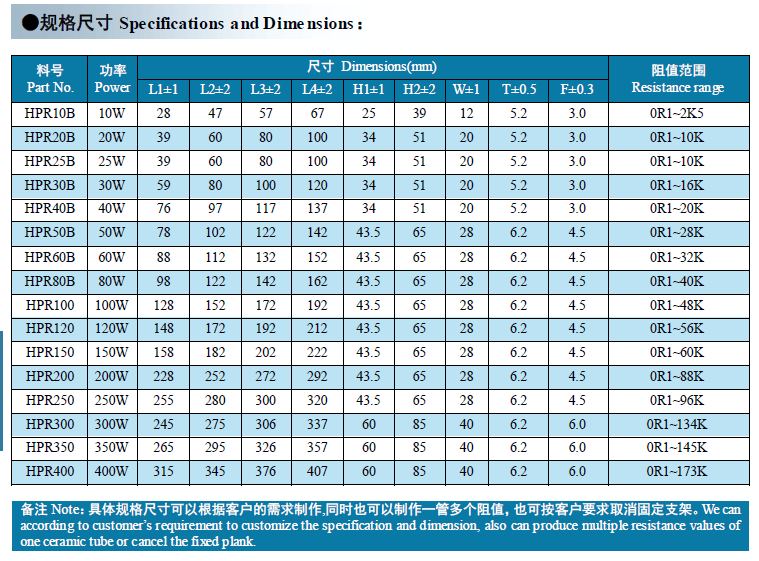

Power: 10W, 25W, 50W, 75W, 100W, 150W, 200W, 250W, 300W, 400W, 500W, 600W, 800W, 1000W, 1200W, 1500W, 2000W
Tolerance: ± 5%, ± 10%
Range: 0R1-100K
