Product Specifications
| Prod Model: |
IN-102S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wi-Fi: |
300m WiFi |
| BIOS: |
Ami BIOS, Acpi Supported |
| Network Card: |
Dual Intel 82574L Gigabit |
| CPU: |
Intel |
| GPU: |
Intel |
| Memory Type: |
DDR3 |
| Use: |
Commercial |
| CPU Frequency: |
1.5-2.0GHz |
| Memory Capacity: |
2g/4G/8g |
| HDD Capacity: |
8g/16g/32g/64G/128g/256g/512g/80g/160g etc |
Product Description
Features:
1. Onboard IVB platform Celeron dual-core C1037U 1.8GHz CPU ( integrated graphics HD Graphics) strong performance, overall performance over D2550 performance 2-3 times more
2. Two Gigabit LAN support diskless boot definition HDMI interface supports both Blu-ray 1080P HD output hardware solution software solution
3.12V external DC power supply , green, everyday use only 12W to 16W power
4. 1 USB 2.0 interface, fully two 1000M card, Wireless 150M or 300M WIFI network optional
5. Intel HM77 Express Express Chipset
6. Supports boot function calls
7. All solid , shock, drop and long-term stable and reliable operation
8. Specific system protection technology restart System Restore , all protected system , the virus can not invade
9. Exclusive RAM disk technology is mature applications , read and write speeds of up to 1300M / S, is a traditional hard drive speeds more than 20 times . All the system writes the RAM disk completed , protecting the SSD solid state disk , long service life of up to 10 years. (4 GB or more of memory optional feature )
Market positioning:
1 living room HD computer TV in the living room below , as the network after connecting TV movie player , Internet , and viewing photos to use , but also can download machine , download movies ( large capacity drives )
2 business office preferred . Online shopping mall , shop office use, environmentally friendly energy , save electricity . Only 15W power down , corporate offices , saving space. Many advantages , the typical business office committed to make.
3 rooms dedicated computer -aluminum exterior , elegant, upscale . Placed hotel is very convenient , all- solid-state design , not damaged, no dry sound , low power consumption , energy saving.
4 education industry dedicated computer terminal than the low clouds have better performance , easier software compatibility , better color , faster , more suitable for the education sector .
5 industrial computers designed for industrial users reservation and serial port, and the design of the machine , can be fully qualified for industrial applications , all solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users .
6 users call center has a large number of mature applications

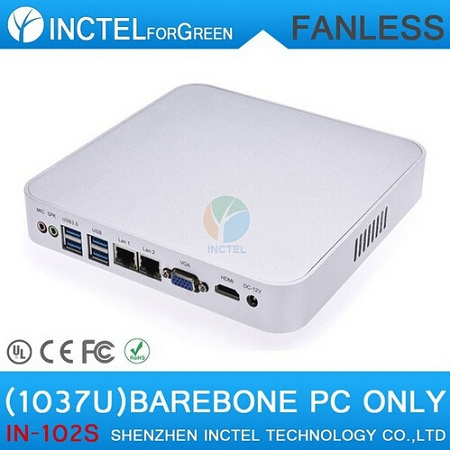

The picture shows the rear panel of the interface map
Parameters are described below :
？ Onboard Intel Ivy Bridge Celeron dual-core C1037U 1.8GHz CPU ( integrated HD Graphics) 2M three cache , power consumption 12W fanless
？ Memory DDR3 SO-DIMM *1 ( maximum support 8GB)
？ 2 * RJ45 10 ~ 100 ~ 1000M Ethernet LAN
？ Graphics Card Intel HD Graphics graphics core, default 256M memory, up to 1024M, support 1920 * 1080
？ SATA SSD optional 8G,16G,32G,64G,120G ( or notebook hard drive 160GB 320GB 500GB 1TB 2TB)
？ 3 x USB 2.0 ports , including two front , rear 1, USB 3.0*2
？ Front USB and Audio Interface
？ Optional ( non- standard ) 150M or 300M Super Signal Dual Antenna WIFI
Pictured on the CPU parameter information , see the number of cores , the production process has reached an advanced 22NM process
Pictured on the experience of scores WIN7 system , CPU speed of the computer experience points reached 5.8 points, but more alarming is that 3D gaming graphics score of 6.1 points
Pictured on Master Lu performance test results , showing obtained silver medals, as a slightly larger than the palm of your hand and weighs 850 grams , fanless operation , power 15W mini computer , it is already a miraculous performance
Measured reach 1.0Gbps Gigabit Ethernet LAN speed networking to ensure high-speed stability , and the perfect support for diskless applications
Under the WIN7 start 77 program startup speed of less than 20 seconds , beating 99% of computers, was named the star god machine 360 .
Detailed configuration
CPU interface BGA package CPU board stickers
Onboard Intel Ivy Bridge CPU Celeron dual-core C1037U 1.8GHz CPU ( integrated HD Graphics) CPU bus (FSB) 1024MHz
Chipset Intel HM77 Express Chipset
Three cache (L3 Cache) 2MB,, CPU integrated
BIOS AMI BIOS, ACPI supported, support caller boot function
System Memory 1 SO-DDR3 SDRAM memory slot , up to 8GB DDR SDRAM
Built-in graphics core built-in Intel HD Graphics Display
Support CRT interface supports VGA output interface supports HDMI output and can vary significantly synchronous output
NIC onboard Intel 82574L 10/100/1000 BaseT LAN optional super- 150M or 300M dual antenna signal WIFI
ALC662 sound card using the chip to provide 6-channel audio
SATA 1Serial II ATA interface, support for 3Gb / s
MINI PCIE two MINI PCIE interface supports full-height half MSATA SSD Support MINI PCIE Wireless LAN
WIFI Optional 150M WIFI or 300M WIFI built-in modules , external antennas to enhance signal
USB 1 USB 2.0 interfaces ( ONE on-board rear, two on the front panel ) \
panel VGA HDMI 2* RJ-45 1 * USB ports 1 * DC (in) 4*USB 2.0
12V AUDIO-OUT AUDIO-MIC
DC IN 12V power supply support
Sizes 205mmx 140mmx40mm
Weight : 850 grams to about 1000 grams
Temperature:
Operating Temperature:
0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)
Storage Temperature:
-20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)
