Product Specifications
| Prod Model: |
HQ940 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Weight: |
12000kg |
| Engine: |
Deutz or Cummins or EPA Tier 3 / 4 |
| Loading Capacity: |
4000kg |
| Overall Dimension (L×w×h): |
7027X2435X3227 Mm |
| Type: |
Wheel Excavator |
| Size: |
Large-Scale |
| Condition: |
New |
| Certification: |
SGS,Rops&Fops |
| Usage: |
Construcion,Building, Earth Moving |
Product Description

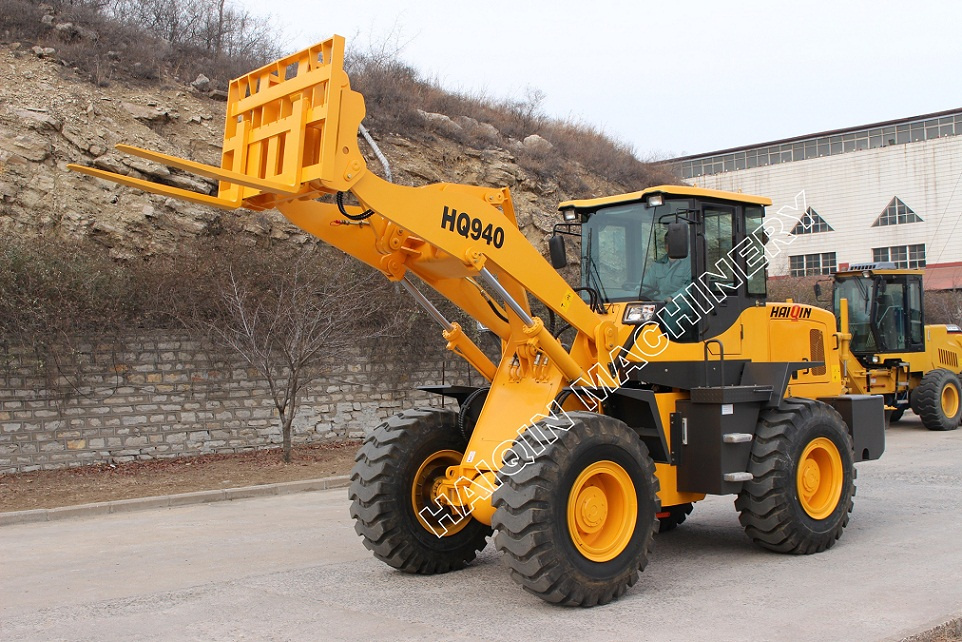

1, Advantage of HQ940 wheel loader:
(1) Re-optimization the engine, strengthened the cold start ability, strong power, greatly improves the efficiency and performance of the whole machine operation. Equipped with Weichai Engine, Optional: Cummins or TIER 4 standard engine.
(2) Advanced cooling system, and to withstand 40 degree high temperature, can also play the highest performance in a high dust environment.
(3) Full hydraulic steering system. Choose the best hydraulic components, pilot operation, easy and durable.
(4) Using ISR hoses with high quality, strength and reliability is greatly improved.
(5) Fixed axle gearbox, power shift, featured by simple structure, high transmission efficiency, long life, easy maintenance, more gear, and high speed, is suitable for heavy load operating conditions.
(6) New Cooling system design, can meet minus 20-43 degree environment temperature requirements.
(7) (Quick hitch ) option tools: Pallet fork, wood fork, pipe fork, grass fork, rock bucket, snow bucket, mixing bucket etc.
(8) According to clients request, can design and produce special tools or machines.
2, Haiqin Machinery is a professional manufacture and supplier of every kinds of mini loader, wheel loader, farm machinery, agricultural machinery in China. All of our machines get CE, SGS, Rops&Fops certificate. Now our machines can be found working in more than 30 countries, like Sweden, Germany, Finland, Norway, Denmark, Poland, Australia, Canada etc.
· Delivery time: 20-25 days after deposit.
· Payment term: T/T 30% in advance.
· Packing: 1 units in one 40 container. Triangle wood and 10mm wire fixed.
· Warranty time: 15 months, We have spare parts service center in Germany and Sweden.
· Minimum order quantity: 1 units
Contact Us--Service for you in 24 hours!
|
Performance |
1 |
rated loading |
4000kg |
|
2 |
overall weight |
12000kg |
|
3 |
rated bucket capacity |
2-2.2m³ |
|
4 |
maximum tractive force |
97KN |
|
5 |
maximum breakout force |
127KN |
|
6 |
maximum grade ability |
30 degree |
|
7 |
maximum dump height |
3200mm |
|
8 |
maximum dump reach |
1100mm |
|
9 |
overall dimension (L×W×H) |
7017x2500x3340 mm |
|
10 |
minimum turning radius |
6400mm |
|
Engine |
11 |
model |
Deutz WP6G175E 22 / Cummins 6BTA 5.9-C180 / TIER 4 (EPA) Engine |
|
12 |
type |
lnline water cooled, four stroke |
|
14 |
rated power |
175HP |
|
15 |
maximum torque |
500N.m |
|
16 |
min fuel-consume ratio |
≤210g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ315_x |
|
18 |
gearbox mode |
Power shift normally engaged straight gear |
|
19 |
gear shift |
4forward shift , 2 reverse shift or
4forward shift , 3 reverse shift (ZF technical)
|
|
20 |
maximum speed |
40km/h |
|
Drive axles |
21 |
main reducing mode |
Bevel gear grade lreduction |
|
22 |
decelerating mode |
Bevel gear grade lreduction |
|
23 |
wheel base (mm) |
2750mm |
|
24 |
wheel tread |
1850mm |
|
25 |
ground clearance |
400mm |
|
Hydraulic system |
26 |
system working pressure |
16.5MPa |
|
27 |
boom lifting time |
4.83s |
|
28 |
total time |
9.15s±0.5s |
|
29 |
fuel tank capacity |
156L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
|
32 |
parking brake |
Manual disk brake |
|
Tyre |
33 |
type specification |
20.5-25 |
