2015 New Through Type Blasting Cleaning Machine

Product Specifications

Prod Model:	Q69
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Shot Blasting Machine
Color:	According to Your Requirement
Warranty:	3 Years
Ues:	Polishing,Shot Blasting
Efficiency:	>99.99%
Certrification:	ISO
Application:	Metal Casting
Type:	Roller Table Shot Blasting Machine
Feature:	Rust Removal

Product Description

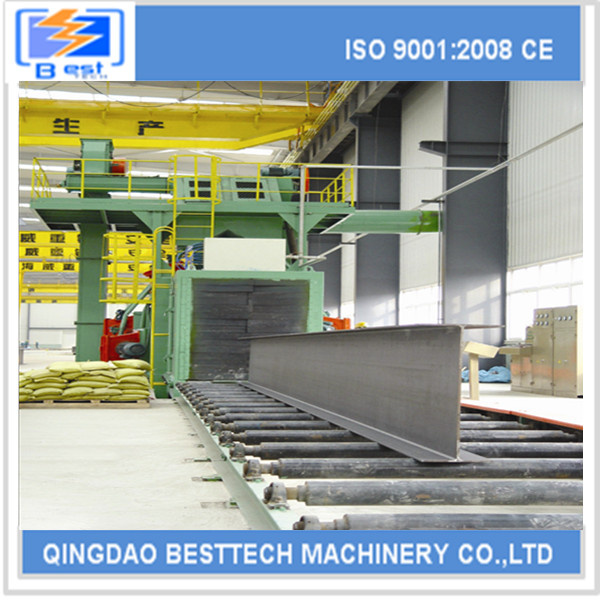

Q69 steel plate,section shot blast clean-up machine:
Designed and produced by adopting the advantages of similar products from both within the country and abroad.the rusting cleaning parts(shot blast cleaning)adopts high-efficiency blast wheel and full shutter type shot sand separator.the aweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator.the preheating and drying part may adopt various heating methods.the paint spraying parts adopt high-pressure airless spraying method.the complete set of equipment is controlled by PLC,and is the large-size complete equipment of international advance level.
it is mainly used for surface treatment(namely preheating,rust removal,paint spraying and drying) of steel plate and various structural sections,as well as for cleaning and strenghening of metal structure parts.
technique parametr:

Name			Q698	Q6910	Q6912	Q6915	Q6920	Q6925	Q6930	Q6935
cleaning dimention	plate	length(mm)	2000-9000	2000-9000	3000-9000	3000-9000	4000-12000	4000-12000	6000-12000	6000-12000
		width(mm)	800	1000	1200	1500	2000	2500	3000	3500
		tkickness(mm)	2-35	2-35	2-40	2-45	3-50	4-60	5-60	6-60
	section steel	width(mm)	800	800	1000	1400	1800	2000	2500	3000
		height(mm)	≤1600	≤1600	≤1800	≤2000	≤2000	≤2500	≤2500	≤3000
speed		m/min	0.5-3	0.5-3	0.5-2	0.5-2.5	0.5-2.5	0.5-2	0.5-2.5	0.5-3
blasting quantity		kg/min	4*250	4*250	4*250	4*250	4*250	6*250	6*250	6*250
section steel abrsive caacity		kg/min	8*250	8*250	10*250	10*250	10*250	12*250	12*250	16*250
ventilation capacity		m3/h	8000-14500	9000-14500	12000-18000	13000-24000	13000-24000	16000-28000	16000-28000	18000-28000
