Technical parameters:
1.Deadweight of the machine : ≥110kg
2, Power- Driven: 380V or 220V, 50Hz ~ 60Hz,; total power :2.75kw,;rated power: 0.75KW
3.Work efficiency: 4.5 / minute, 600 m2 / day
4. Boundary dimension: length × width × height = 1100 × 650 × 5500
5. Whitewashing width: ≤1100
6. Whitewashing thickness: ≤35mm
II. Eight innovation:
1.A full top in the end: top to bottom all the powder in place, up and down without leaving a centimeter negative angle!
2, double wipe board: four repeated wiping pressure, stronger adhesion, smoothness, flatness better!
3, no RBI wear bars: automatic positioning device using infrared vertical leveling without manual ahead RBI wear bars! Efficacy greatly improved!
4, the single-person operation: one person can do all the work from the machine positioning plus gray expanse, save labor.
5. Limit the rod: lintel construction without following measurement accuracy of 100%, disassembly only 1-2 seconds, effectively improve work efficiency
6, flatness higher: Machine access rail movement, infrared vertical positioning, reduce manual errors, flatness verticality been greatly enhanced
7, retractable roof protection: Over-location without the influx of construction equipment protection roof beams, effectively improve work efficiency.
8, an increase of 40% effective hopper: Hopper increased 40%, to reduce the midway plus gray, improve work efficiency.
the main features:
1. It adopts rack lifting made,with steady operation and low failure rate .It is equipped with new power transmission system with overlod protection .It is made with light magnalium material ,so it is very light .
Its appearance adopts automobile paint ,which makes sure the service life of the machine is at least 5 years.Meanwhile ,it adopts Chinese famous brand Globe universal wheel .So ,it is durable and machine movement is convenient and fast.
2, all of the wall thickness of 2.0 steel pole, beautiful and durable permanent deformation. The plastering plate adopts mangaese steel panel.It will not rust ,deform and oxidize.Besides,it has good rigidity and long service life.
3.The motor adopts imported German WANSHSIN motor with original packaging.It can slow down and brake automatically. The electric appliance adopts Chinese famous brand CHNT,equipped with leakage protector which ensures personnel security.
4.The machine adopts totally-closed bearings,so sand and water will not enter it.Besides,it will not rust and is durable. Aluminum bearing box will not rust even if it contacts water for a long time .

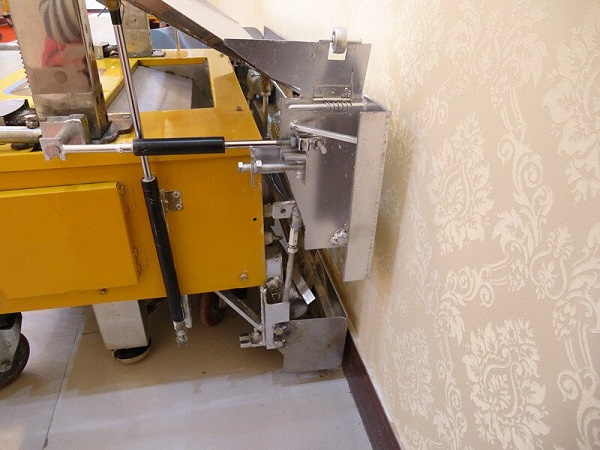

5.The machine adopts split-type design .The box of the main machine is separated from the hopper and scraper blade.When the machine reaches the top,the hopper will sink and the scraper blade will make a turn automatically so that it can whitewash to the top in one time .Meanwhile ,when the machine descends,it has the functions of scraping and troweling .Manual repair is not needed again .
6.It is supported by the portal frame, a hydraulic cylinder lock grip, The machine is fixed between the ground and the top,which ensures firmness of the machine and wall smoothness.
7.Thickness adjustment mechanism is designed .It is very convenient to adjust the thickness.
8.The high-frequency vibration device is installed on the hopper and the scraper blade respectively to reach material pressing and scraping through vibration and polish the original path so that there is no hollowing and crack.
Beijing Chenggong Mechanical Technology Research Institute is Located in the Party School of Fengtai District, Beijing. It is a strong innovative enterprise integrating research, development, production and sale of wall whitewashing machine, mortar coating machine, putty coating machine and grinding machine. Since its setup in 2001, it has set up three production bases in Beijing, Hunan and Shanghai to mainly research, develop and manufacture full-automatic intelligent wall whitewashing machine, pasting machine, mortar coating machine, putty coating machine, grinding machine, excellent machining equipment, perfect technological process and advanced detection means. Excellent and advanced intelligent wall whitewashing machine is well received by vast customers. Over the years, Chenggong has concentrated on research and development of constructional engineering machinery, always stands on the front line of automatic wall whitewashing machine production technology, continuously launches new products according to market demand, offers new generation of wall whitewashing products and continuously leads automatic wall whitewashing machine to innovate, Therefore, Chenggong becomes a well- deserved strong brand in Chinese constructional engineering and automatic wall whitewashing industry.
The new wall whitewashing machine researched and developed by Chenggong in 2002 as a leading product of the enterprise became very popular nationwide after market verification for several years. Through continuous innovation, research and development for over one decade, automatic wall whitewashing machine of Chenggong experienced 10 times of revolutionary improvement successively. Its products are sold well nationwide and even sold in numerous international regions including the Middle East and South Asia.
