Product Specifications
| Prod Model: |
MT-6-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Capacity: |
10L |
| Cylinder Weight: |
8.8kg |
| Service Pressure: |
150bar |
| Wall Thickness: |
8mm |
| Overall Dimension: |
150*730mm |
| Flow Regulation Range: |
0-15L/Min |
| Oxygen Supply Time: |
1400min |
| Certification: |
DOT/Tped/CE |
| Delivery Time: |
25days |
| Material: |
Aluminum |
| Structure: |
General Cylinder |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |
| Power: |
Hydraulic |
Product Description
Small Portable Oxygen Cylinder can be peovided by Shanghai Eternal Faith Industry CO., ltd.

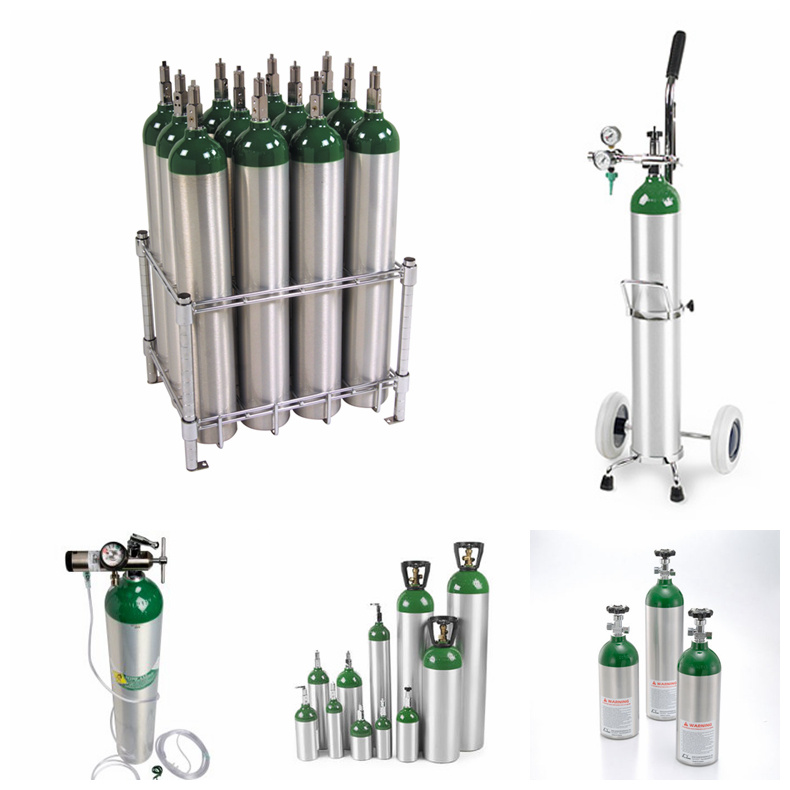

Small Portable Oxygen Cylinder Description:
Specification: MT-6-10
Water Capacity: 10L
Cylinder Weight: 8.8kg
Service Pressure:150bar
Wall Thickness: 8mm
Overall Dimension: 150*730mm
Oxygen Supply Time: 1400min
Flow Regulation Range: 0-15L/min
1.Our gas cylinders are made from superior aluminum alloy 6061 so that they features high strength (No splashing fragment in explosion), lightweight (40% lighter than steel cylinders) and corrosion resistance etc.
2.Our gas cylinders interior and exterior are treated by passivation which can make sure the gases clean, odorless and anticorrosive.
3.There are kinds of gas cylinders for your choice and we can also design and manufacture any non-standard gas cylinder according to customers' requirement.
Packaging & Delivery:
Packing Detail: Packed By Cartons. Delivery Detail: 25 days after deposit
Company Information SEFIC: A Company You Can Trust
1).Located in Shanghai, SEFIC is a professional manufacturer of gas equipment such as storage tank, vaporizers,gas cylinder and gas filling station,and various gas equipment parts,such as valve, cap and steel soft pipe.
2). We have implemented a strict and complete quality control system. SEFIC production and management are carried out under ISO9000 Quality Management System strictly and keep a good quality. Our products have attained the CE/DOT/TPED certification.
3) We are not only cylinder supplier, but also the first-rate service provider.We have been making great effort to achieve this win-win project and sincerely hope you can join us. You success,our glory.
4). SEFIC has been specializing in seamless steel gas cylinders designing and manufacturing for many years, and has gained a good reputation at home and abroad with the support of professional and powerful team.
Frequently Asked Questions
1. What is the capacity of this cylinder? 10L
2. What is the delivery time? 30Days once deposit paid.
3. What's the payment terms?T/T, 30% deposit, 70% before delivery
Contact Us
Please feel free to contact us if you need further information.
Kind regards,
Nancy Chen
Tel: 0086-21-66019677 Fax: 0086-21-66019679
Add: No.222,Meidan Road,BaoShan District,Shanghai,China 201908 SHANGHAI ETERNAL FAITH INDUSTRY CO.,LTD
O2 ALUMINIUM CYLINDER |
| Part NO. | Specification | Water C
apacity(L) | Wall thickness
(mm) | Cylinder
Weight(kg) | Overall
Dimension(mm) | Service Pressure
(bar) | Oxygen Supply Time(min) | Flow R
egulation Range
(L/min) |
| MB1 | MT-2/4-2.0 | 2 | 5.5 | 2.2 | 108*340 | 150 | 280 | 0-7 |
| MB2 | MT-2/4-2.8 | 2.8 | 6.1 | 2.9 | 120*392 | 150 | 390 | 0-7 |
| MB3 | MT-2/4-3.2 | 3.2 | 6.1 | 3.3 | 120*437 | 150 | 420 | 0-7 |
| MB4 | MT-2/4-4.0 | 4 | 7.1 | 4.2 | 140*410 | 150 | 560 | 0-7 |
| MB5 | MT-4-6.3 | 6.3 | 7.1 | 5.9 | 140*605 | 150 | 900 | 0-7 |
| MB6 | MT-6-6.3 | 6.3 | 8 | 6.4 | 159*495 | 150 | 900 | 0-15 |
| MB7 | MT-6-10 | 10 | 8 | 8.8 | 159*730 | 150 | 1400 | 0-15 |
