Product Specifications
| Prod Model: |
DW-I546 / 8492MT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
Intel 82546 |
| Port: |
RJ45 |
| LED Indicator: |
Link/Act |
| Wake On LAN: |
Yes |
| OEM&ODM: |
Accept |
| Feature: |
Support Vlan Gathering and X-Router |
| Type: |
Wired |
| Bandwidth: |
10Mbps/100Mbps |
| Interface: |
PCI Express |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Server |
| Motherboard Integrated: |
Separate Network Card |
| Frequency Range: |
Dual Frequency |
| Type Of Network: |
Gigabit Ethernet |
| Field: |
Server |
Product Description

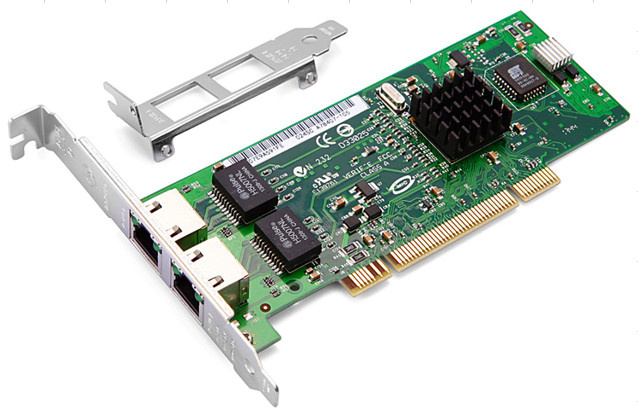

2015 Newest Product 1000M Intel 8492MT 2 port PCI network interface card
Highlights:
Alleviate bottlenecks and conserve valuable PCI slot space with high-performance server network card featuring two 10/100/1000 copper network connections in a single PCI slot. Intel PRO/1000 MT Dual port server network card offer exchangeable brackets for both full-height and low profile PCI/PCI-X slots. Advanced server features reduce server bottlenecks and increase uptime.
Features Include:
MultiGigabit scalability with Adaptive Load Balancing, Gigabit EtherChannel, Intel Link Aggregation, IEEE 802.3ad.
Increased uptime and online serviceability via automatic failover, PCI Hot Plug and Active PCI.
Ideal solution for 1U and 2U servers - full-height and low-profile brackets allow easy installation in full height or low profile PCI/PCI-X slots.
Remote management features include WfM, DMI 2.0, SNMP
Specifications:
|
|
Host Interface |
PCI Network Card |
Product Type |
Gigabit PCI Network Card |
Dimensions |
2.50" Height x 6.60" Width |
Interfaces/Ports |
2 x RJ-45 PCI-X Network Card |
Form Factor |
Internal Intel 82546 1000MT lan card |
Network Technology |
10/100/1000Base-T |
Number of Ports |
2 |
Product Line |
PRO/1000 |
Input Voltage |
5 V DC |
Protocols |
Ethernet
Fast Ethernet
Gigabit Ethernet |
Packaged Quantity |
1 |
Standard Memory |
128 KB |
Certifications & Standards |
· FCC
· CE
· IEEE 802.3ad
· IEEE 802.1p
· IEEE 802.3ab
· IEEE 802.1Q
|
Humidity |
0% to 85% Operating |
Input Current |
1 A 5 V DC |
Management |
· Wired for Management (WfM) Baseline v2.0 Enabled for Servers
· DMI 2.0 Support
· WMI & SNMP-manageable
· Offline Diagnostics
· Dynamic Cable Diagnostics
· Intel Boot Agent
· ACPI Power Management
· Wake on LAN
· PXE 2.0
|
Temperature |
32F (0C) to 131F (55C) Operating |
Additional Information |
· Intel SingleDriver technology1
· Plug and Play Specification Support
· Easy Installation, Intel PROSet II Utility
· Auto-negotiation, Full-duplex Capable
· Includes a Low-profile and a Full-height Bracket
PHYSICAL DIMENSIONS:
· Height of Full-Height End Bracket 12.1cm (4.75 in)
· Height of Low-Profile End Bracket 8.1cm (3.2 in)
Advanced Software Features:
· Adapter Fault Tolerance
· Switch Fault Tolerance
· Adaptive Load Balancing
· Fast EtherChannel (when used with a capable switch)
· Gigabit EtherChannel (when used with a capable switch)
· IEEE 802.3ad (when used with a capable switch)
· Test Switch Configuration
· PCI Hot Plug and Active PCI
· IEEE 802.1Q VLANs
· IEEE 802.3x Flow Control
· TCP Checksum Offload
· IEEE 802.1p
· TCP Segmentation/Large Send Off-load
· Interrupt Moderation
· Save and Restore
Platforms Supported:
· Windows 2000, and XP
· Windows NT 4.0
· Novell NetWare 4.11, 4.2, & 5.0, 5.1, 6.0
· SunSoft Solaris 7, 8
· UnixWare 7.x and OpenUNIX 8 (ddi8)
· Linux 2.2.5 or Later
· FreeBSD (latest kernel)
|
System Requirements |
OS Required:
· SunSoft Solaris 7
· Novell NetWare 4.2
· Novell NetWare 4.11
· Novell NetWare 5.1
· SunSoft Solaris 8
· Novell NetWare 5.0
· FreeBSD
· Microsoft Windows 2000 / NT4.0
· Linux 2.2.5 or later
· Microsoft Windows XP
· Novell NetWare 6
· UnixWare 7.x
|
Delivery
1.1-2days for sample order;
2.3-7 days for bulk other OEM;
3.OEM 7-15 days after receiving your sample confirmation.
