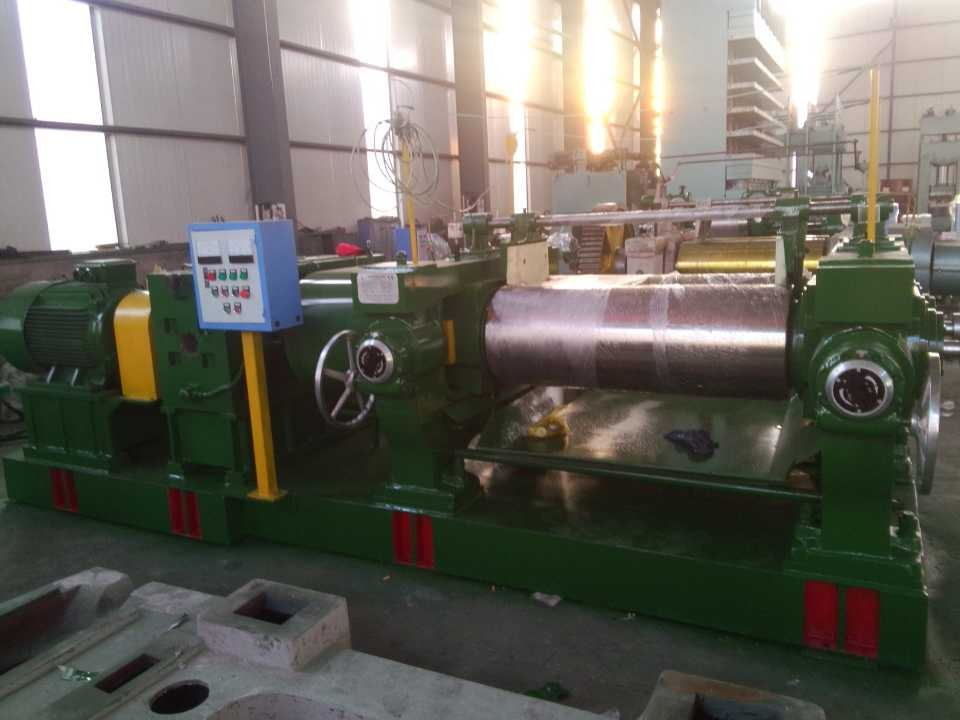

2015 Rubber Machinery -Open Mixing Machine

Product Specifications

Prod Model:	xk-250
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	380V
Weight:	<50 tons
Type Of General Rubber Machinery:	Mixing Roll
Certification:	ISO, CE, SGS
Power:	10~100KW
Using Life:	≥15 Years
Customized:	Customized
Type Of Tire Machinery:	Rubber Raw Processing Machine
Type:	General Rubber Machinery

Product Description

Usage:
This machine is mainly used in following cases for rubber porduction factory, natural rubber refining, raw rubber and compound ingredient mixing.

1. The mixing mill are equipped with stock blender which save labor and increase production efficiency...
2. Adopting Korea technology, it has reached domestic advanced level. Besides, with hydraulic-controlling roll guide, it can freely adjust the axial separation of roll guide.
3. With chain drive, the main engine owns the characteristics of compact structure, high intensity, low noise and so on.

Factory direct sales, with high quality and competitive price

1- Name:

Rubber mill, Rubber mixing mill, Two roll mill, Open rubber mixing mill, rubber mixer.

2- USE:

This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet.

3- Main features:

A. The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.

B. The machine is equipped with an overload protection device to prevent the main components from being damaged.

C. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.

D. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.

E. The base frame is a whole framework, which is convenient for installation.

F. Stock bender for direct rubber sheet and knife to cut as your need to assemble.

G. Auto-lubrication sysytem for greese or oil and match bearing bush.

MODALITY:

A. Two roll mxing mill: Connon Gear Type (Nylon shoe, Copper shoe and Bearing).

B. Two roll mixing mill: Reducer use Hard Tooth Face Type.

C. Two roll mixing mill: B type. (The motor under the roller)

D. Two rolll mixing mill: H type.

Type		XK-150	XK-250	XK-300	XK-360	X(S)K-400	X(S)K-450	X(S)K-560
Working diameter of rolls (mm)		Ø150	Ø250	Ø300	Ø360	Ø400	Ø450	Ø560
Working length of rolls (mm)		320	620	750	900	1000	1200	1530
Working linear speed of front roll(m/min)		8	15.1	15.1	16.25	18.65	24.5	27.7
Max gap (mm)		10	10	10	10	15	15	15
Capacity per.batch(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	95
Overall dimension (mm)	L	1080	3400	3580	3940	4250	5200	6120
	W	796	1350	1550	1780	1850	2380	2280
	H	1415	1500	1695	1740	1870	1770	2000
Weight (kg)		1100	3500	5205	5670	7600	13000	22000
Notes		Bearing	Nylon bush grease LUB    Copper sleeve oil LUB					Nylon bush grease LUB
