2015 Small Size A3 T Shirt Printing Machine Wirh Acro Rip Software

Product Specifications

Prod Model:	byc168-2.3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Small Size A3 T Shirt Printing Machine
Print Size:	32.9*60cm or 32.9*42cm Optional
Color:	Cmyk+Ww
Nozzle Configuration:	540 Nozzles (90 * 6 Colors)
Ink Cartridge:	CISS
Max Resolution:	5760*1440dpi
Minimum Ink Droplet Size:	1.5 Pico Liters
Height:	180mm
Service:	OEM, Free Sample
Color & Page:	Multi-Colour Printing Press
Printing Interface:	USB2.0
Plate:	Flatbed Printing
Structure:	Flatbed Printer
Usage:	T Shirt Printing Machine
Printing Speed:	A4 Size Photo with About 2 Minutes.
System Supported:	Windows 2000/XP/7

Product Description

2015 small size a3 t shirt printing machine wirh acro rip software

Specifications
1, directly print picture from computer onto black ans white t shirt;
2, low print costs: Approx $0.1 for a4 size photo;
3, CE certificated;


2015 small size a3 t shirt printing machine wirh acro rip software

Thanks for your interest in our printer.
We produce flatbed printer since 2002, as one of the most experienced manufacturer, we provide high quality machine and good support. I am in this company for almost 4 years; I will help you to get the best and most suitable machine. We cooperate with professional freight companies, DHL, TNT and FedEx for many years; We will provide fast and safe shipping.

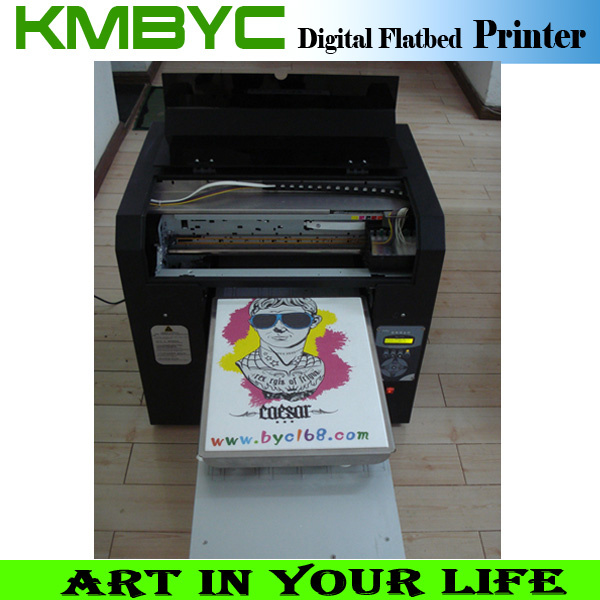

Model: BYC168-2.3

Brief Introduction
This printer is economy normal speed model; Suitable for print logo, photo, letters on any color t shirt;
Its print speed is normal, for example to print A4 size photo, it costs approx 2 minutes;
It is good for small volume customized DIY t shirt printing.

Necessary goods for t shirt printing are as bellows:
1, color textile ink + white textile ink, can print on any color t shirt;
2, pretreat fixing agent is used for white textile ink pretreatment, you need only to spray it on product before print white ink. If you print on light color t shirt, no need white ink, no need pretreatment;
3, Cleaning liquid: It is better to keep some Cleaning liquid in stock, you may need to clean the printer someday (for example if you will leave it not work for long time);
4, RIP software is necessary for print white color, and its inner ICC is very good for print all colors;
5, t shirt adapter is used for arrange t shirt on printer and get the best print position;
6, heat press machine is used for dry and fix color after printing; You can buy similar product from many many place; If you can buy it from your city, you may save much shipping costs than buy from China.

Detail of 2015 small size a3 t shirt printing machine wirh acro rip software:

Item name	BYC168-2.3 UV Printer
Main engine	Epson Stylus photo 1390
Max print Size	32.9*60cm
Max print Thickness	18cm (adjustable by infrared ray)
Max Resolution	5760*1440dpi
Nozzle Configuration	540 nozzles (90 * 6 colors)
Minimum Ink Droplet Size	1.5 Pico liters
Ink Cartridge	CISS(continuous ink supply system)
Ink Palette	C/M/Y/K/LC/LM
Rated Voltage	AC 110/220V
Power Consumption	approx 35W
Printer Size	87*67*63cm
Printer Weight	62kg
Interface	Hi-Speed USB 2.0
Print Speed	111 sec for A4 size 1440*720dpi photo
Operating Systems	windows 2000/XP/7/8
Operating Temperature	50° to 95° F (10° to 35° C)
Operating Humidity	20% to 80%
Dimensions	approx 96*76*78cm packed in wooden case
Gross Weight	approx 100kg
Warranty	One year (except CISS, cleaning unit, print head or damage by human.)

Print process is easy, directly print picture from computer with no transfer, no color lose:
1, light color t shirt (no need white ink):
S1, put t shirt on the adapter on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click print option, and it will be printed onto the t shirt;
S4, heat press the printed t shirt for approx 40 sec.

2, dark and black color t shirt (need white ink):
S1, spray the pretreat fixing agent on print area manually,
S2, put t shirt on the adapter on printer,
S3, choose the picture from computer and put it in RIP software,
S4, click white print option;
S5, it prints white picture base onto the t shirt;
S6, click the color photo print option;
S7, it prints color photo on white base;
S8 heat press the printed t shirt for approx 40 sec.

Our competitiveness
We are the designer and oldest manufacturer of flatbed printer; We start research and produce since 2002; And sold very big amount printers to many coutries.
Our factory is SGS cetificated; Our product is CE certificated.
We have professional aftersales department to provide online support.
You can get high quality machine, good service and lifelong support from us.

Thanks for reading; If you are interest in this printer, please feel free to contact me by email, skype (byc168seller), phone...+8618288235090

Hope we can establish long term business soon.

Detail price indluce machine and consumables
Name	Quantity	Price(US dollars)	Remarks
BYC1682.3 t shirt printer	1 set	2800	6colors A3+ 32.9*60cm size
Color textile ink	1set	240.00	500ml*CMYK 4 colors (total 4 bottles); you can also buy any individual color you need
White textile ink	500ml	125	/
Pretreat fixing agent for white textile ink	1liter	80	/
Cleaning liquid	1set	29	/
RIP software	500ml	125	/
T shirt adapter	1piece	50.00	/
Heat press machine	set	245.00	/
