Product Specifications
| Prod Model: |
HT-777 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Band: |
Multiband |
| Certificate: |

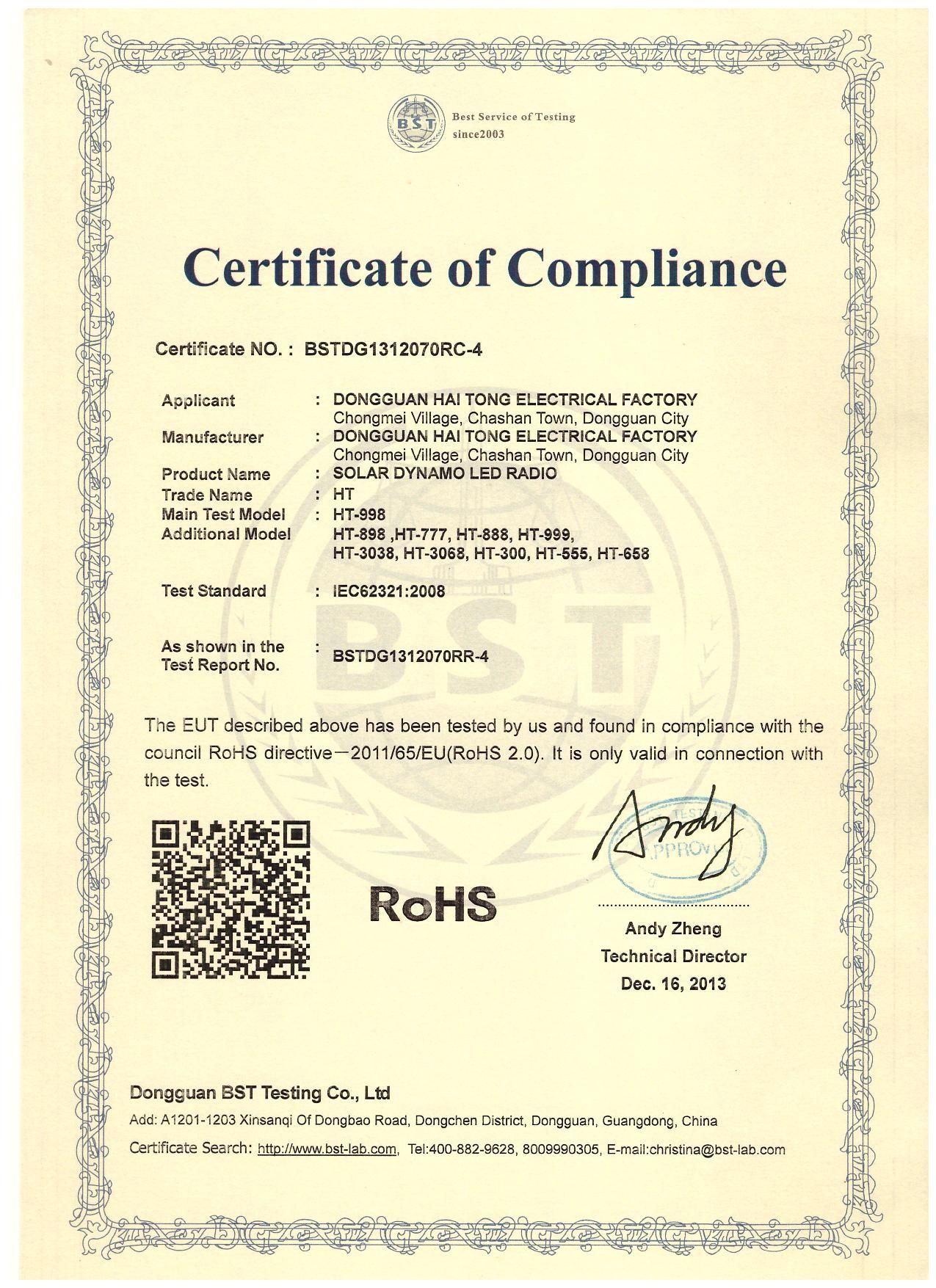

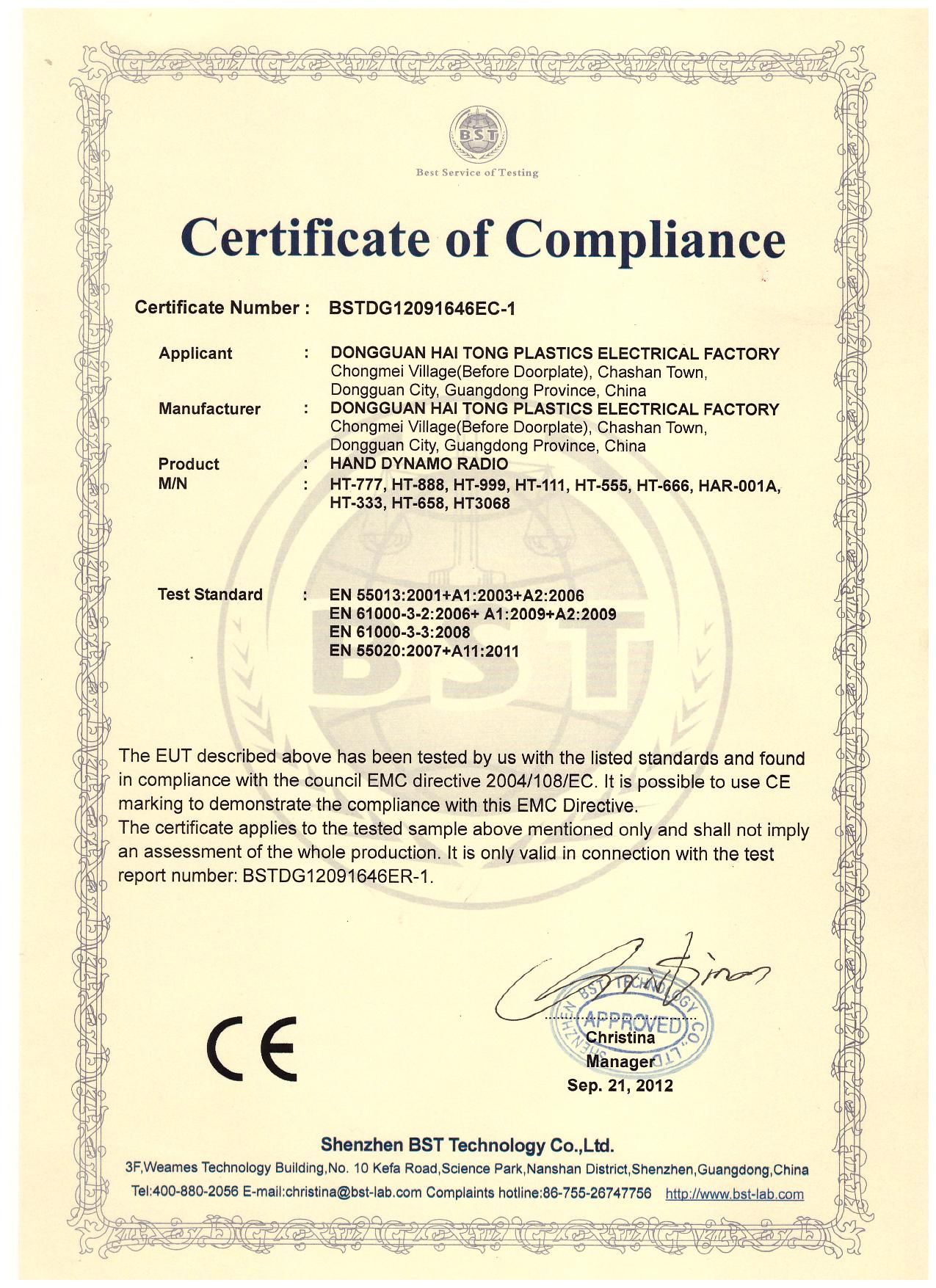

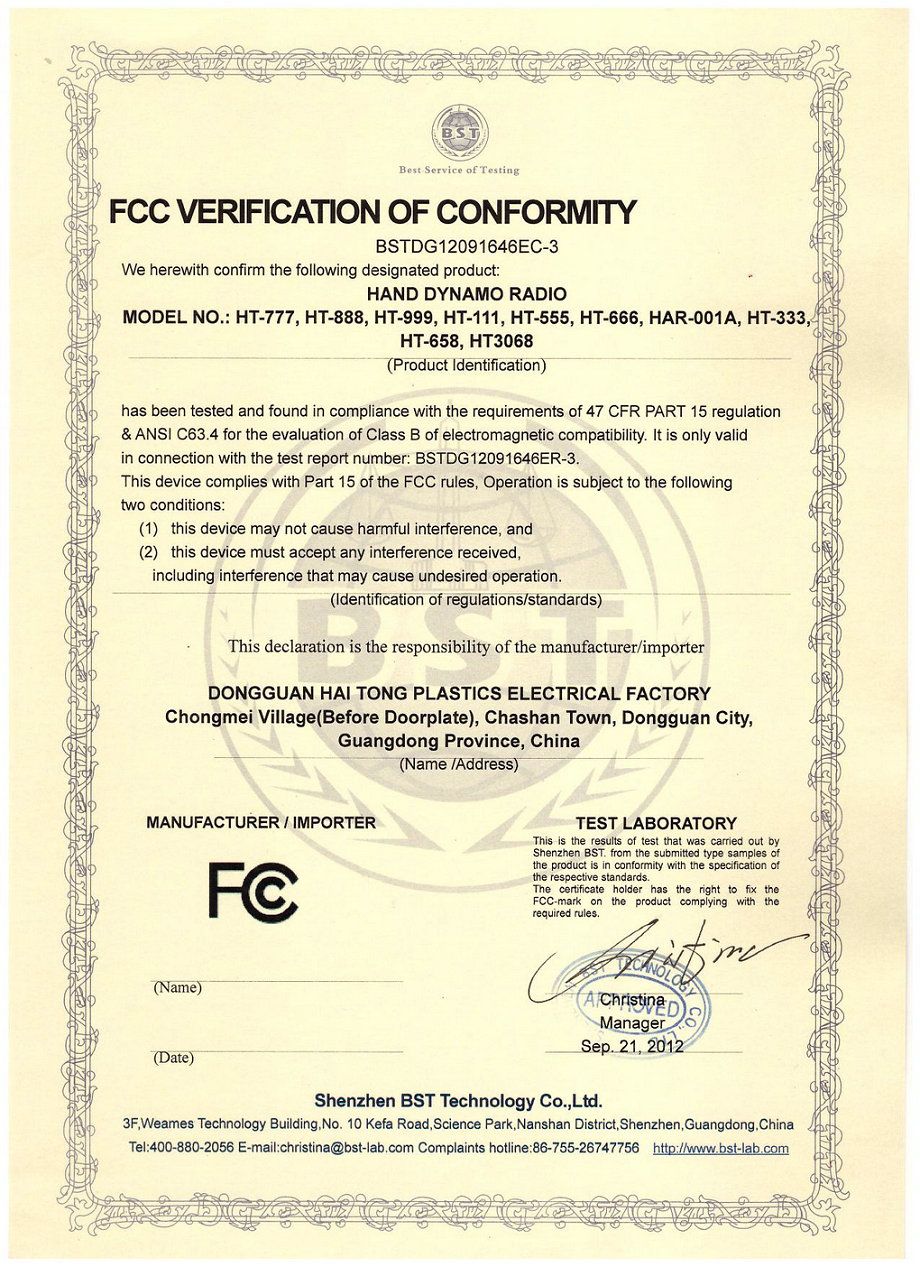

CE/RoHS/FCC |
| Application: |
Urgency |
| Style: |
Sky Wave |
| Wavelength And Frequency: |
All Bands |
Product Description
Solar Dynamo Radio HT-7771> Solar / Dynamo charged
2> 10 bands
AM: 530-1700 KHZ
FM: 88-108 MHZ
WX: 162.55-164.4 MHZ
VHF: 145-175 MHZ
TV1: 2-6 CH
TV2: 7-13 CH
SW1-4: 5.8-17.5 MHZ
3> Solar panel size: 97*26 cm
4> Crank generator output: 5V 400mA
5> Rechargeable Batteries: "AAA"x3pcs, 3.6V NI-CD rechargeable batteries (included )
DRY CELLS: DC-3V"AA"x3pcs (not included )
6> With earphone Jack
7> Built-in loudspeaker
8> With telescopic antenna
9> DC 4.5-6V input Jack ( for AC-DC adaptor, adaptor not included)
10> Product size: 16.2*6.2*13.5 cm
Technical Parameters1.Solar panel size 100 * 28 * 3.2mm parameters 5V25mA (polysilicon) 12 hours in bright sun, the battery can be filled 3.6V/300mA2.Hand 1 minute / 150 lap segment audible FM radio 20 minutes, the volume is located 1/3. Dynamo 2 hours and 30 minutes, can be filled with 3.6V/300mA battery.3.Charging motor parameters: DC10.8V, rated current greater than 430mA, 10 ohms load.4.LED parameters: 2 * 5 * 7mm white hair Bai Chaoliang 10000-12000mcd5.Speaker parameters: Φ57mm32 magnetic 0.5W8Ω6.Adapter parameters: output DC voltage 6V/500mA7.Full segment FM radio built-in battery audible three hours, the volume is located 1/3. Filled with built-in battery LED lamps can be lit one hour 30 minutes.8.Can be equipped with a larger capacity rechargeable battery, but the price change.9.With 8 2 * 5 * 7mm lampCettification Authority:
Packing:
Inner Packing :1pc/ Bubble bag + color box
box size : 17.5x14.2x7.2cm
Outer Packing :
30pcs/carton
carton size :37.5x36.5x44.6CM
N.W.: 14.0 KGS
G.W.: 14.7 KGS
FCL:
20GP: 12000PCS
40GP: 27000PCS
Dongguan Chashan Hai Tong Plastics Electrical Factory is a manufacturer specializes in designs & development, mold making, manufacturing and marketing.
Products mainly are energy saving & environmental items, they are solar dynamo radio, hand crank flashlight w/radio, and multi-function solar cell phone charger. They are suitable for household, traveling, entertainment and other outdoor activities.
The factory established in 2000. Its products mainly export to overseas such as North America, Europe, and Southeast Asia countries. The products conform to the standards of FCC, CE, RoHS, etc. Especially, we have obtained patents for the home market.
With high quality, reasonable pricing, abundant experience, excellent talent as well as high efficient, we are able to design and develop similar and correlative products for clients.
All of valued clients are welcome to work together with us to develop market and win multilateral interests!
