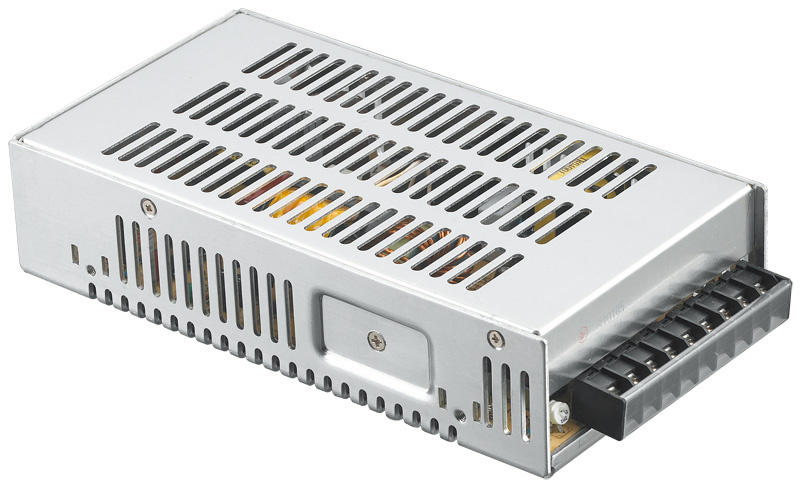

Features
· High efficiency, high reliability
· AC input range selected by switch
· 100% full load burn-in test
· Protections: Short circuit/ Over load/ Over voltage/ Over · Temperature
· Cooling by free air convection
· Fixed switching frequency at 25KHz
· 1 years warranty

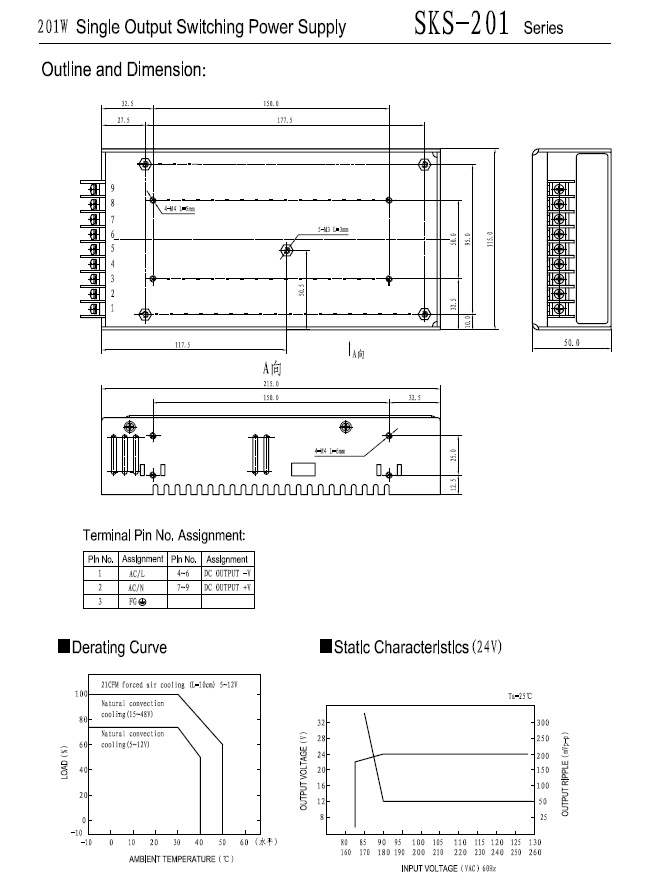

Dimensions: 215*115*50mm(L*W*H)

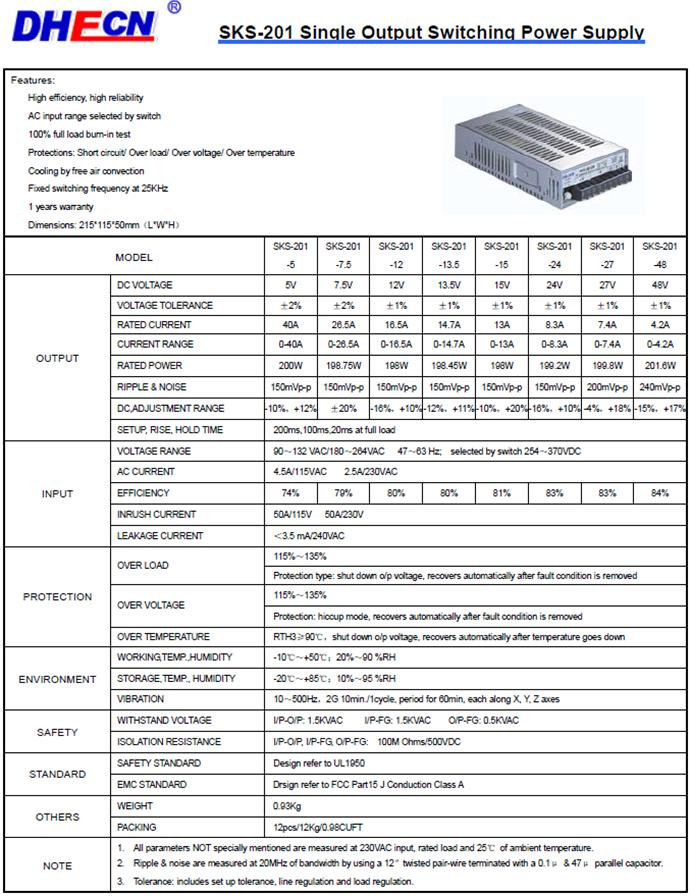

Specification
1)INPUT
· Voltage Range: 90~132 VAC/180~264VAC47~63 Hz; Selected by switch 254~370VDC
· AC Current: 4.5A/115VAC2.5A/230VAC
· Efficiency: 74%(HS-201-5); 79%(HS-201-7.5); 80%(HS-201-12); 80%(HS-201-13.5);
81%(HS-201-15); 83%(HS-201-24); 83%(HS-201-27); 84%(HS-201-48);
· Inrush Current: 50A/115V50A/230V
· Leakage Current: <3.5 mA/240VAC
2)PROTECTION
· Over Load: 115%~135% Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
· Over Voltage: 115%~135% Protection: Hiccup mode, recovers automatically after fault condition is removed
· Over Temp: RTH3≥ 90º C, shut down o/p voltage, recovers automatically after temperature goes down
3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+50º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes
4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1950
· EMC Standard: Drsign refer to FCC Part15 J Conduction Class A
5)OUTPUT
· Model HS-201-5 HS-201-7.5 HS-201-12 HS-201-13.5 HS-201-15 HS-201-24 HS-201-27 HS-201-48
· DC Voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
· Voltage Tolerance ± 2% ± 2% ± 1% ± 1% ± 1% ± 1% ± 1% ± 1%
· Rated Current 40A 26.5A 16.5A 14.7A 13A 8.3A 7.4A 4.2A
· Current Range 0-40A 0-26.5A 0-16.5A 0-14.7A 0-13A 0-8.3A 0-7.4A 0-4.2A
· Rated Power 200W 198.75W 198W 198.45W 198W 199.2W 199.8W 201.6W
· Ripple & Noise 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 200 mVp-p 240 mVp-p
· DC Adjustment Range -10%, +12% ± 20%, -16%, +10%, -12%, +11%, -10%, +20%, -16%, 10%, -4%, +18%, -15%, +17%
· Setup, Rise, Hold Time 200ms, 100ms, 20ms at full load
